Surly just updated another one of its classic models, the Disc Trucker, with a new build kit and some minor geometry tweaks. Find all the latest details on the new 2026 Surly Disc Trucker below…

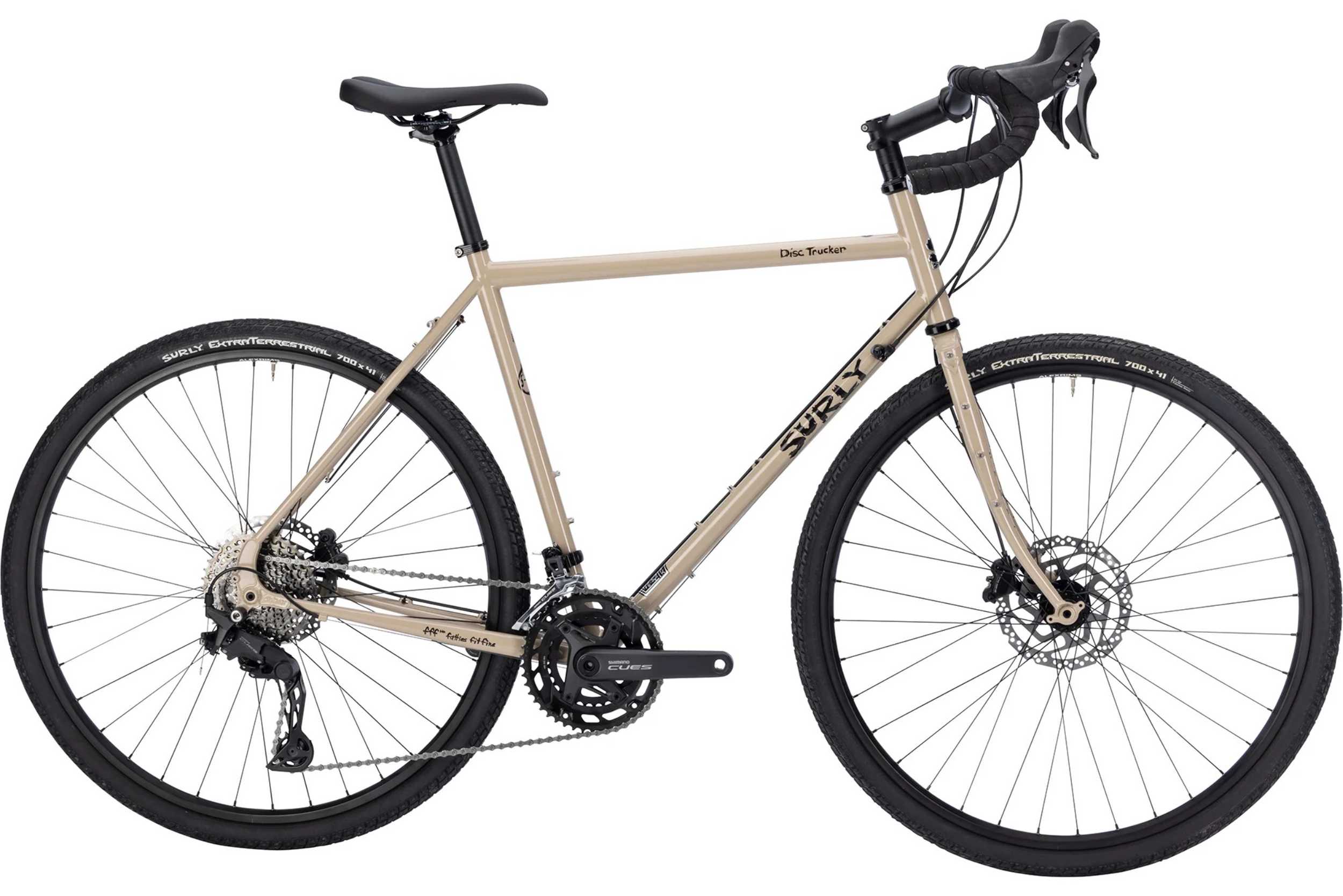

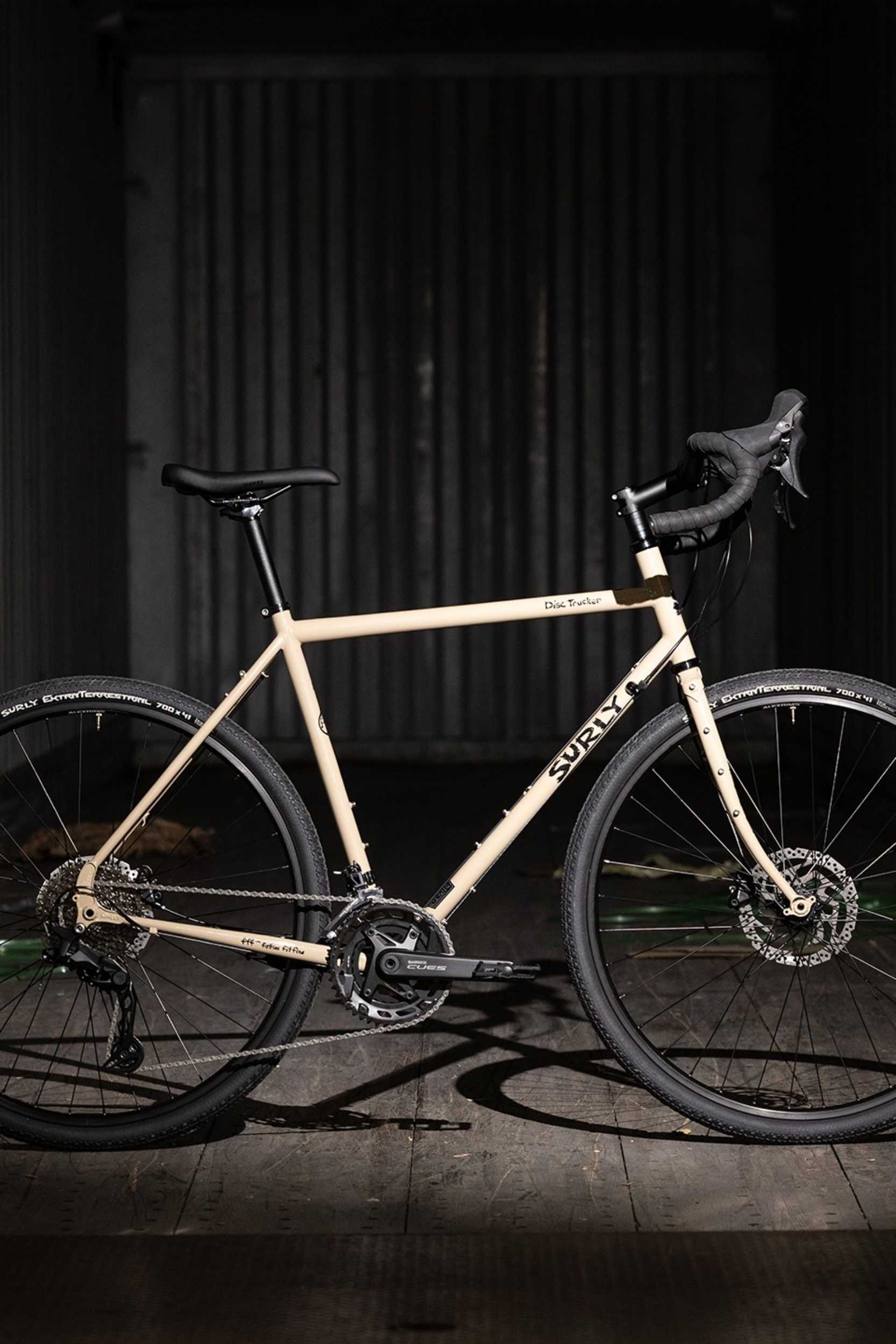

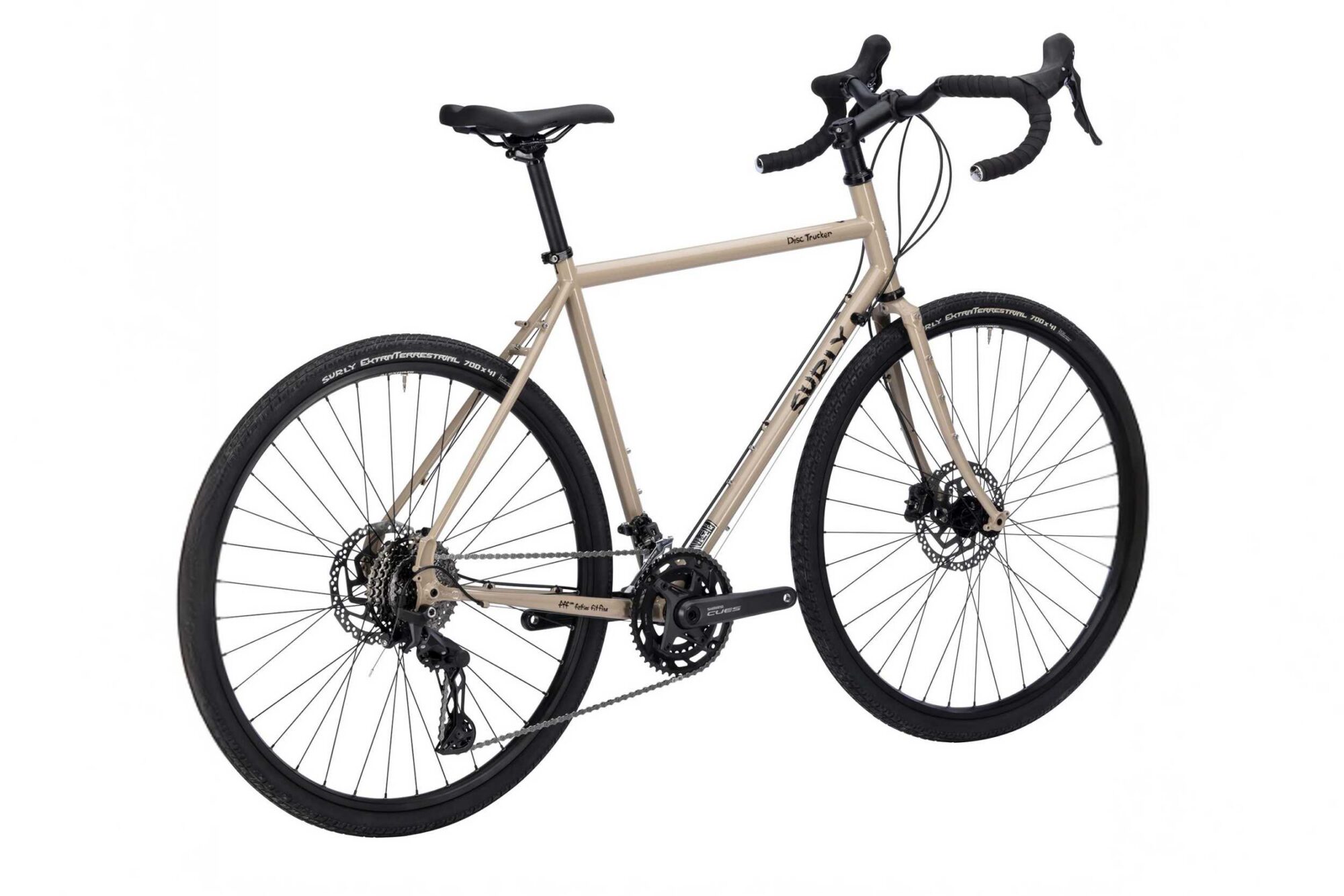

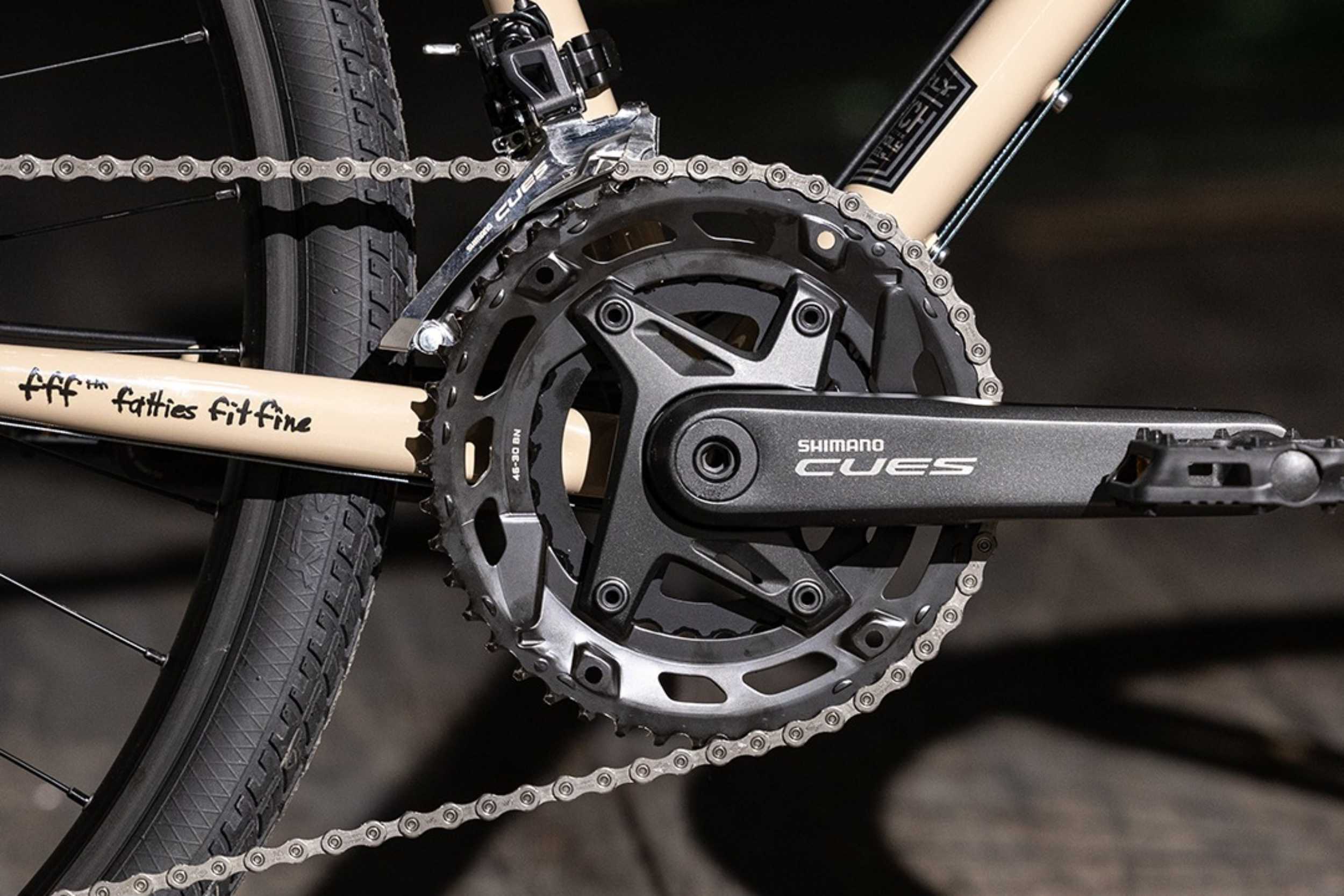

Following the re-release of the Midnight Special, Surly is tweaking another one of its iconic models for 2026. With two complete build kits in Grandpa’s Khakis brown, the 2026 Surly Disc Trucker features components from Shimano’s CUES line in both 700c and 26″ iterations.

  • 2026 Surly Disc Trucker
  • 2026 Surly Disc Trucker
2026 Surly Disc Trucker
  • 2026 Surly Disc Trucker
  • 2026 Surly Disc Trucker
  • 2026 Surly Disc Trucker

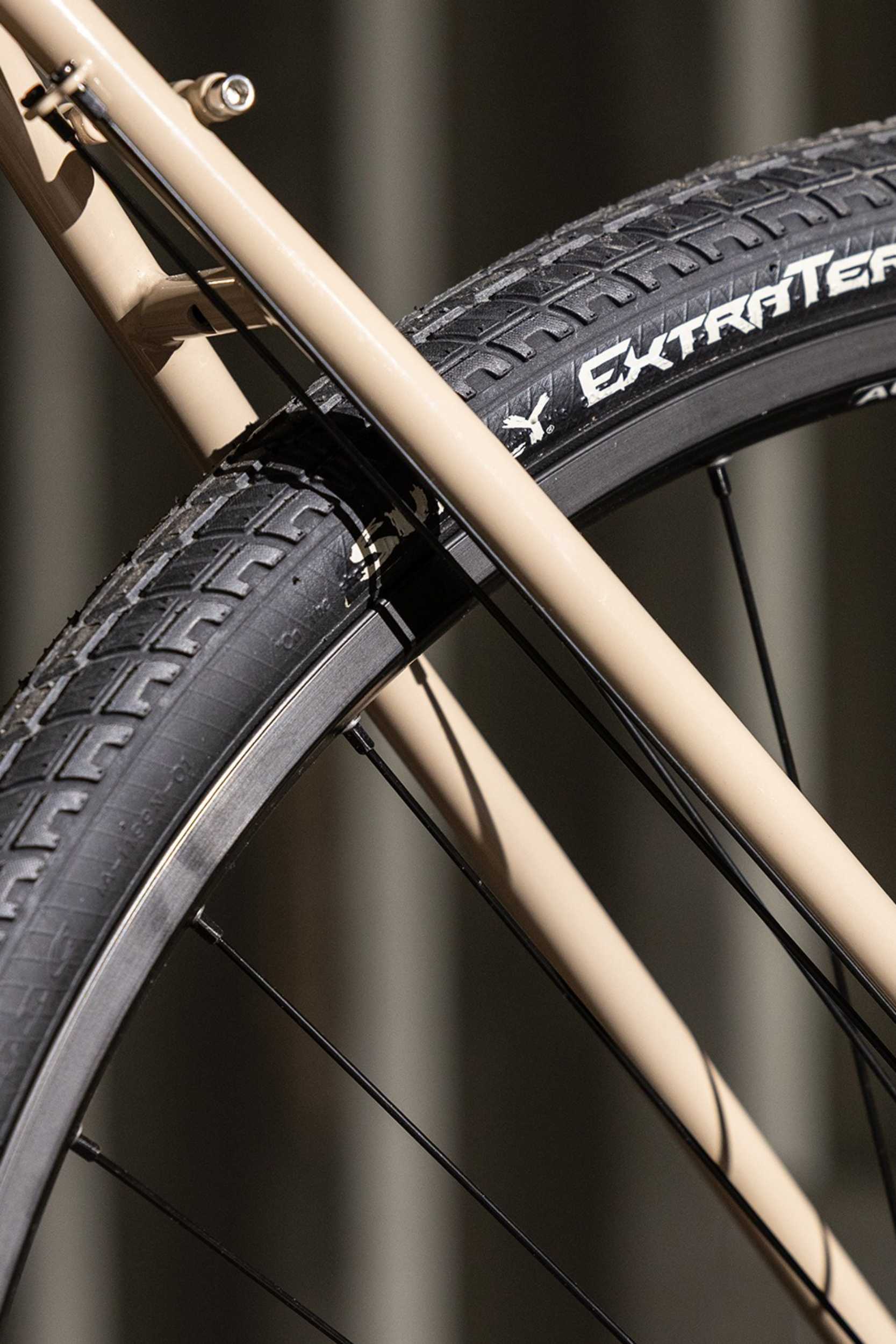

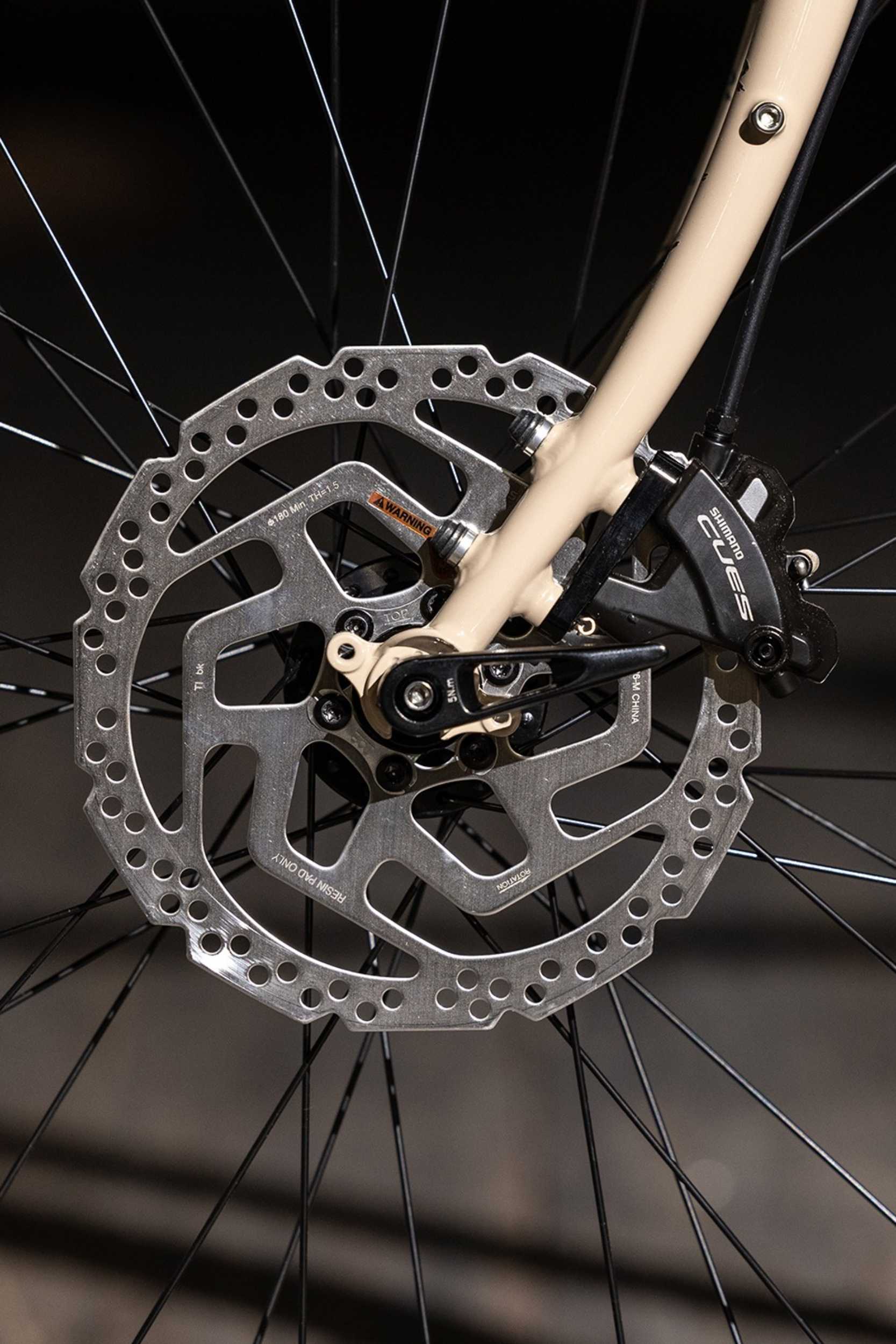

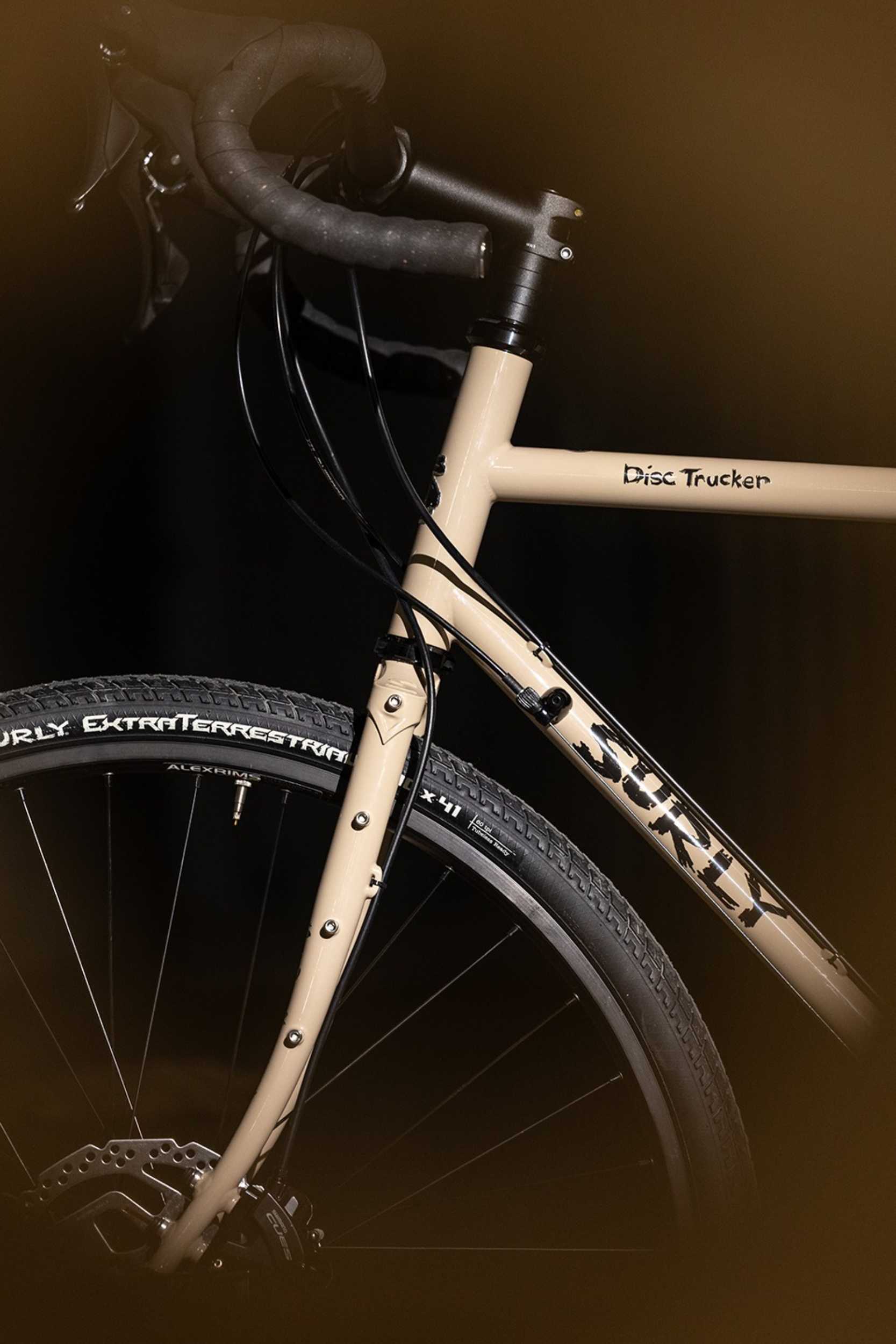

The updated Disc Trucker features dynamo routing on the fork, as well as three-pack mounts on the fork blades and “every braze-on you’ll ever need” for racks, fenders, and water bottle cages. Using 12mm thru-axles for a stiffer ride feel and increased stability when fully loaded, Surly has also shortened the seat tube, added a slight slope to the top tube for improved stand-over clearance, and tweaked the stack height for a more upright and comfortable riding position. The Disc Trucker is equipped with the Truck Stop Bar and tubeless ExtraTerrestrial tires, flat-mount hydraulic disc brakes, a seat stay-mounted spoke holder, and a removable kickstand plate.

Surly Disc Trucker Geo

Size 42 46 50 52 54 56 58 60 62 64
Effective TT Length 500 515 530 545 560 575 590 605 620 636
Reach 362 371 369 374.5 378 387.5 391 400 402 412.5
Wheelbase 1026 1037 1040 1050 1060.5 1051 1060 1075.5 1084 1090
CS Length 450 450 450 450 450 450 450 450 450 450
Effective ST Angle 75 74.5 74 73.5 73 73 72.5 72.5 72 72
ST Length 420 460 500 520 540 560 580 600 620 640
HT Angle 70 70 71 71 71 72 72 72 72 72
HT Length 125 130 170 185 205 175 195 215 235 250
Fork Length 376 376 376 376 376 390 390 390 390 390
BB Drop 50 50 50 50 50 80 80 80 80 80
Stack 515 520 561 575.5 594.5 613 632 651.5 670.5 685
Note that sizes 42-54cm have 26″ wheels, and the 56-64cm sizes are built with 700c wheels.

Surly split the frame sizing into two five-size runs across two wheel sizes. Frame sizes 42–54cm are available with 26″ wheels, and frame sizes 56–64cm are available with 700c wheels. The Disc Trucker has clearance for 26 x 2.1″ or 700c x 47mm with fenders. The new Disc Trucker retails at $2,099 complete or $999 for a frameset.

  • 2026 Surly Disc Trucker
  • 2026 Surly Disc Trucker
2026 Surly Disc Trucker

For more on the 2026 Surly Disc Trucker, visit SurlyBikes.com.
