Expanding their US-made production bike lineup that debuted in November, the new Stinner Refugio Select is a steel gravel bike with room for 700 x 50mm tires, comfortable all-day geometry, and complete builds that start at under $4,000. Meet the Stinner Refugio here…

Launched in November, the Stinner Select program offers stock versions of the California brand’s US-made bike models with non-custom geometry, lower price tags, and without the wait times that come with fully custom frames. They debuted the new program with the Stinner Carrizo all-road, and next up is the Stinner Refugio, a US-made gravel bike with enough oomph to handle rough descents, long climbs, and nearly any type of terrain.

Stinner Refugio Select
  • Stinner Refugio Select
  • Stinner Refugio Select

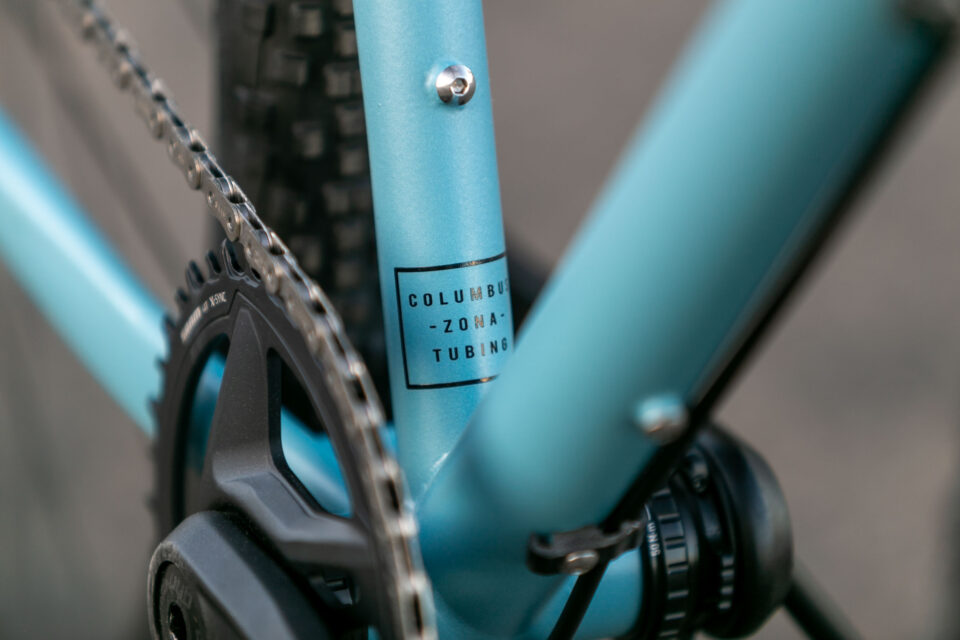

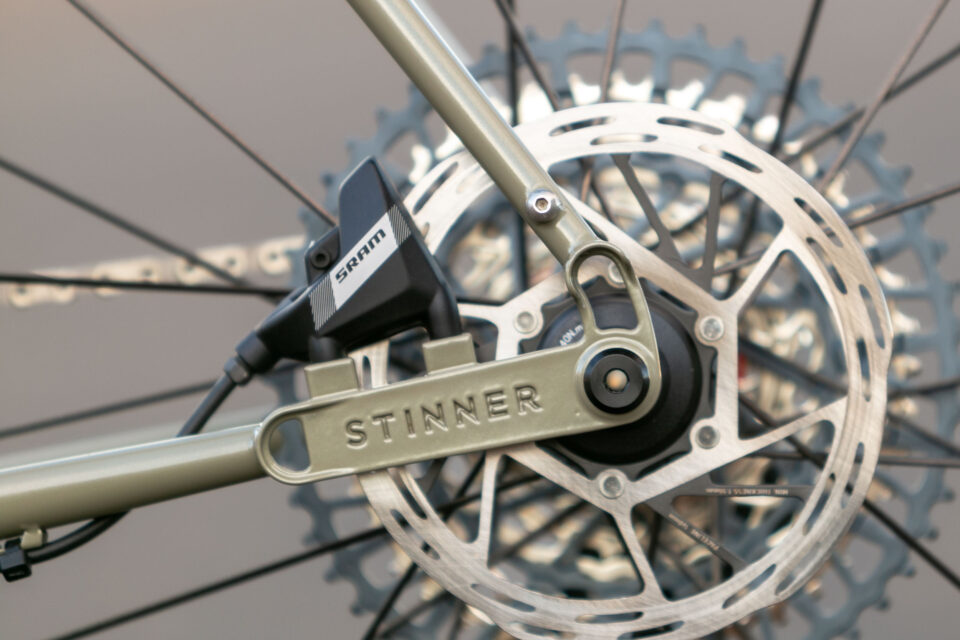

Like the Carrizo, the Stinner Refugio is made from a blend of Columbus Zona/Life tubing. Every Refugio Select is fabricated, painted, and assembled in Santa Barbara, California, and has clearance for 700 x 50mm tires, UDH compatibility, and a component package prioritizing reliability and serviceability. Other specs include flat mount disc brakes, in-house-designed dropouts, external cable routing, fender mounts, two standard bottle mounts, and a third under the downtube.

The Stinner Refugio uses a BSA 68mm threaded bottom bracket, a 12mm thru-axles, a 27.2mm seatpost, and a 44mm straight head tube. Framesets and complete builds come equipped with a full carbon fork with dynamo routing, external brake routing, and three-pack mounts. It’s offered in six frame sizes with head tube angles between 71.25° and 72.5°, 438mm chainstays, and wheelbases from 1,027mm to 1,079mm. Find the geo chart below.

  • Stinner Refugio Select
  • Stinner Refugio Select
  • Stinner Refugio Select
  • Stinner Refugio Select
  • Stinner Refugio Select

Stinner Refugio Geometry

Size 50cm 52cm 54cm 56cm 58cm 60cm
Frame Stack 545 560 575 595 610 640
Frame Reach 387 395 400 405 410 418
Top Tube Length, Horizontal 540 554 569 582 594 614
Head Tube Length 97 112 129 149 167 197
Head Tube Angle 71.25° 71.5° 71.75° 72° 72.25° 72.5°
BB Height* 282 282 284 284 287 287
BB Drop 82 82 80 80 77 77
Seat Tube Angle 74.5° 74.25° 73.75° 73.5° 73.25° 73°
Trail* 71 69 67 66 64 62
Front Center 603 613 621 630 638 652
Chainstay Length 438 438 438 438 438 438
Wheelbase 1027 1038 1047 1056 1064 1079
Standover Height* 765 782 800 820 840 864
Seat Tube Length (center – top) 470 490 510 530 550 570
Stinner Refugio Select
  • Stinner Refugio Select
  • Stinner Refugio Select

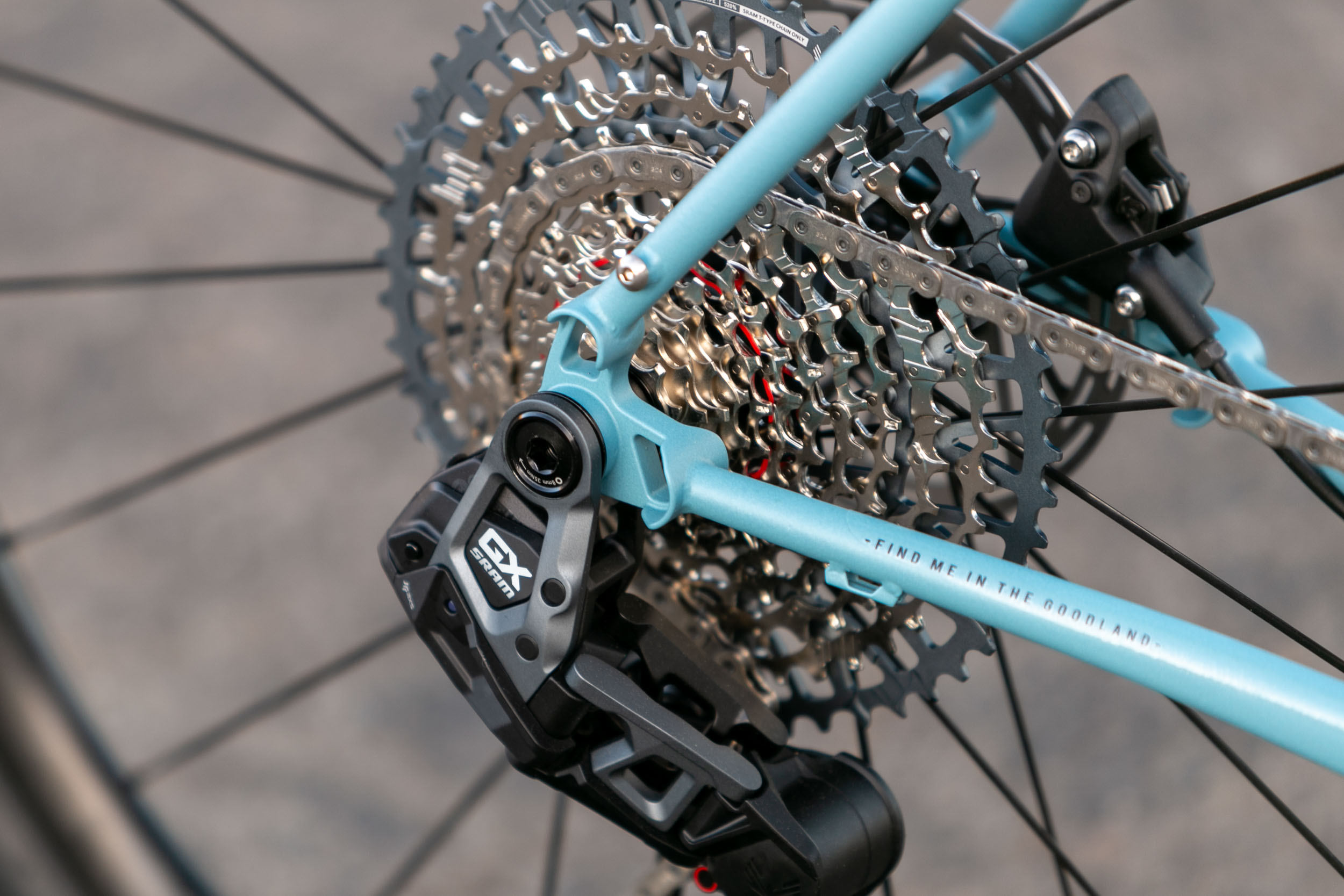

The Stinner Refugio Select is available to order as a frameset for $1,695 or as a complete build for $3,995 USD. The full build includes an Easton stem/bar, SRAM Apex/GX Eagle Transmission drivetrain, SRAM Apex Hydraulic brakes, and DT Swiss G1800 Spline wheels with WTB Resolute 700 x 50mm tires. It’s offered in two colors: Trailhead (green/gray) or Lake (blue).

Head to StinnerFrameworks.com to learn more.
