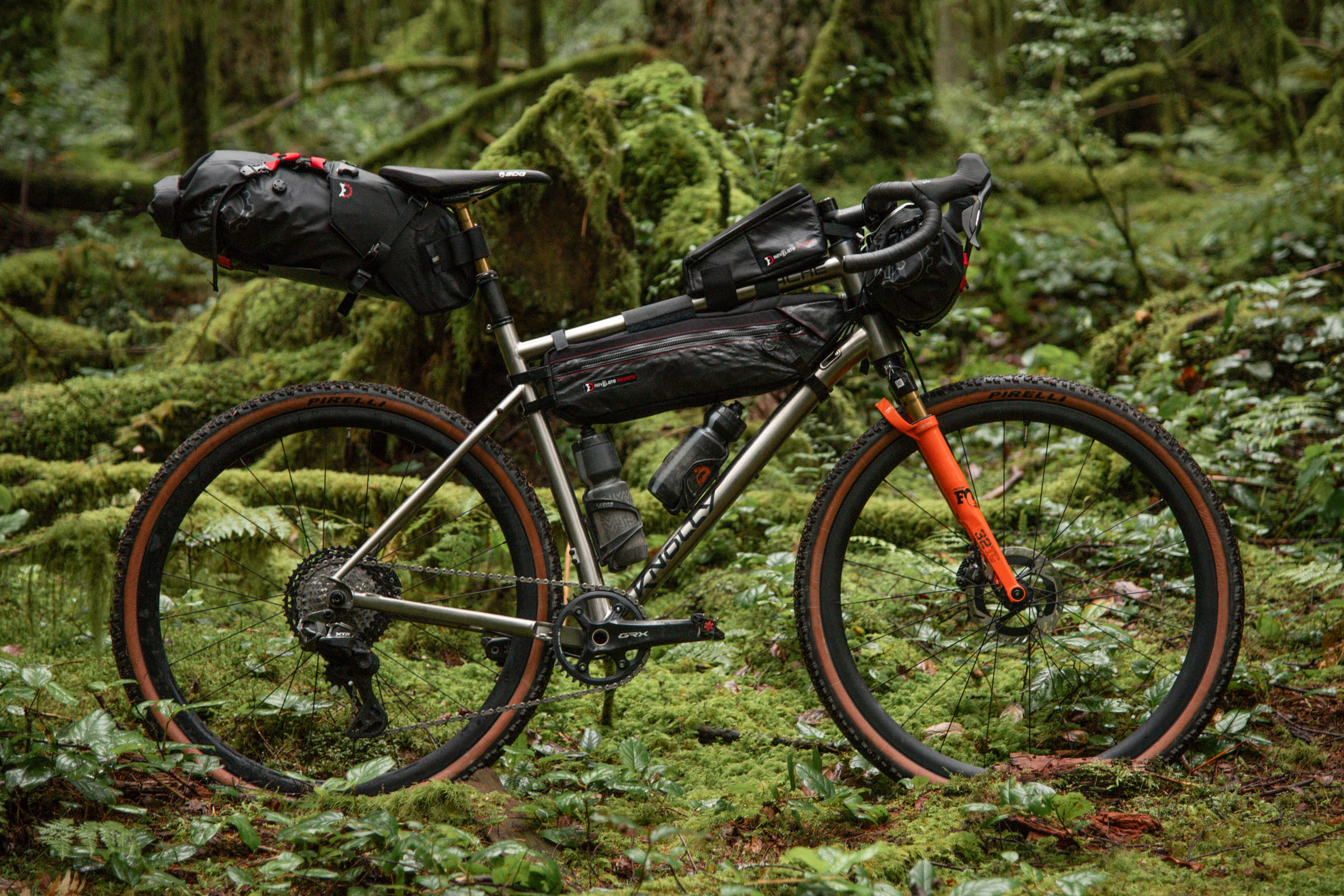

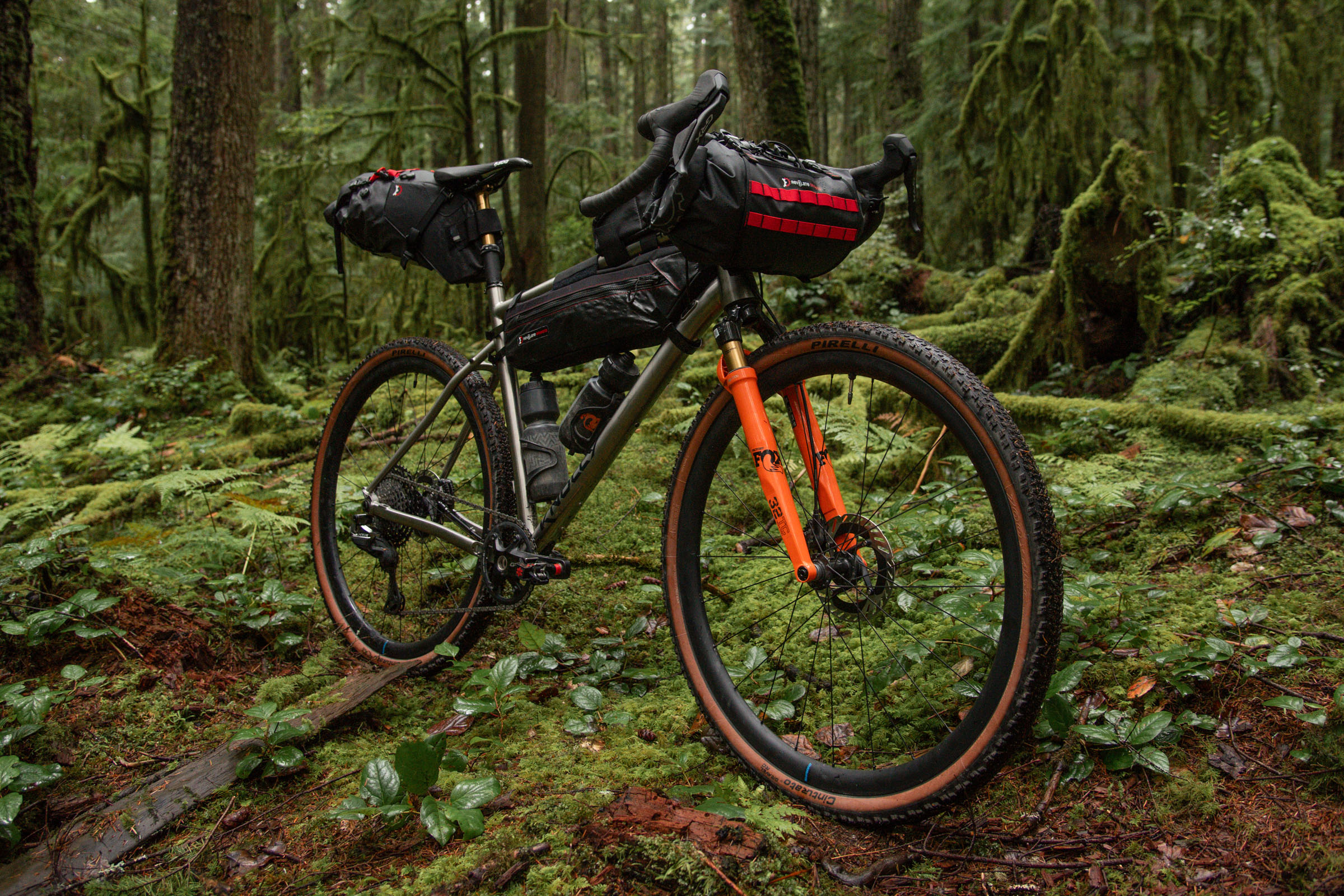

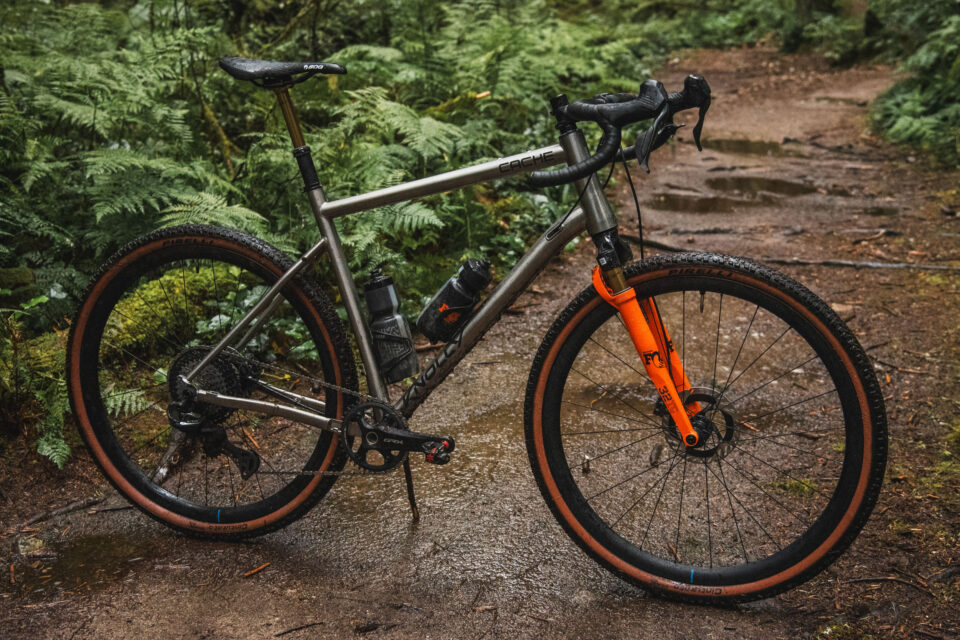

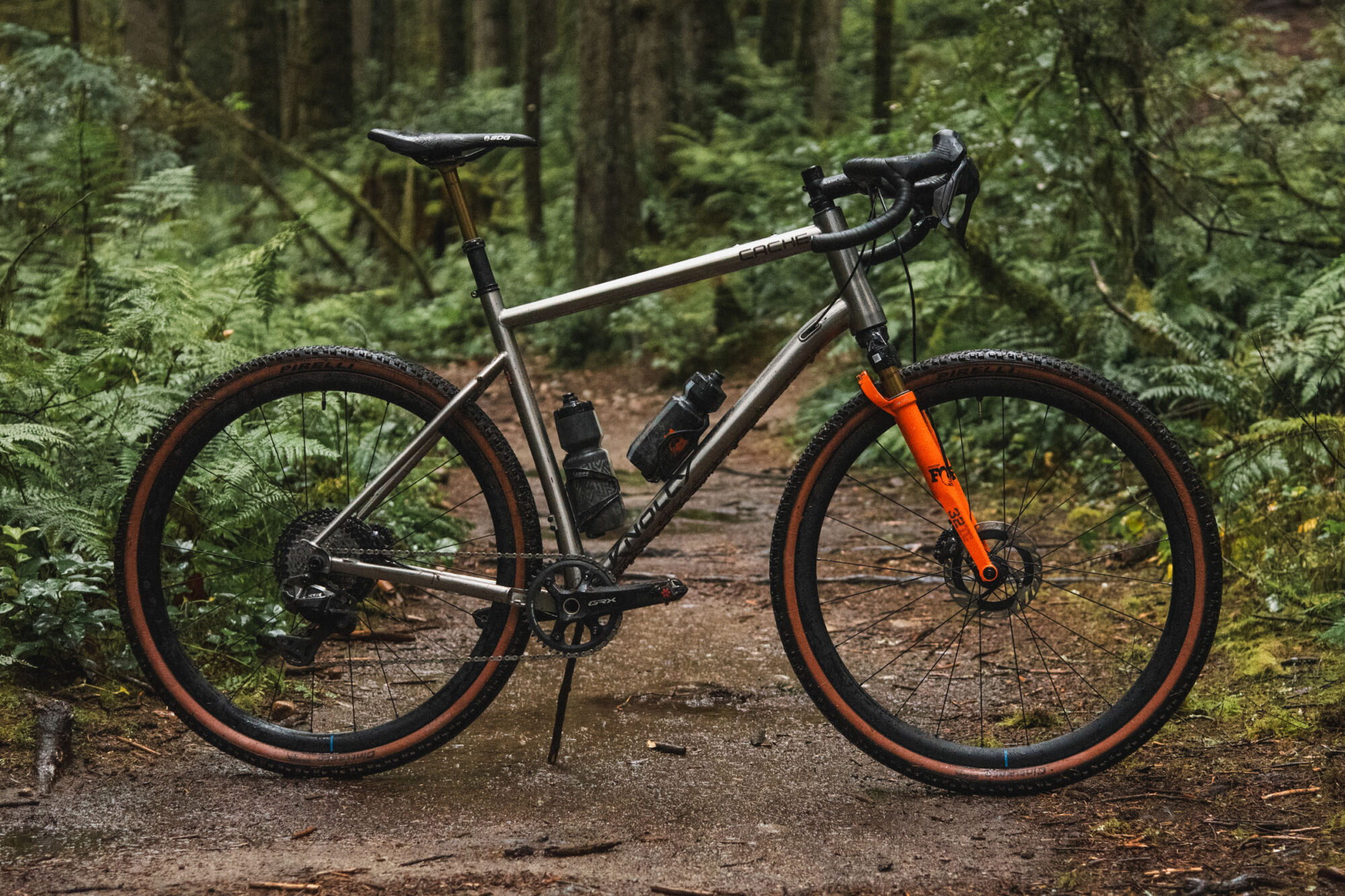

The updated Knolly Cache Titanium still features a titanium frame with CNC-machined details, but now offers more mounting points, SRAM UDH rear dropouts, and a suspension-corrected front end. Dig into the details here…
The Knolly Cache Titanium was first teased in 2018, and its questionable component mix had everyone wondering whether it was a gravel bike with an identity crisis or something else. Hank Hansen wrote a detailed review here, and we’re excited to see Knolly continuing the Cache evolution with a freshly updated version that builds on the original.

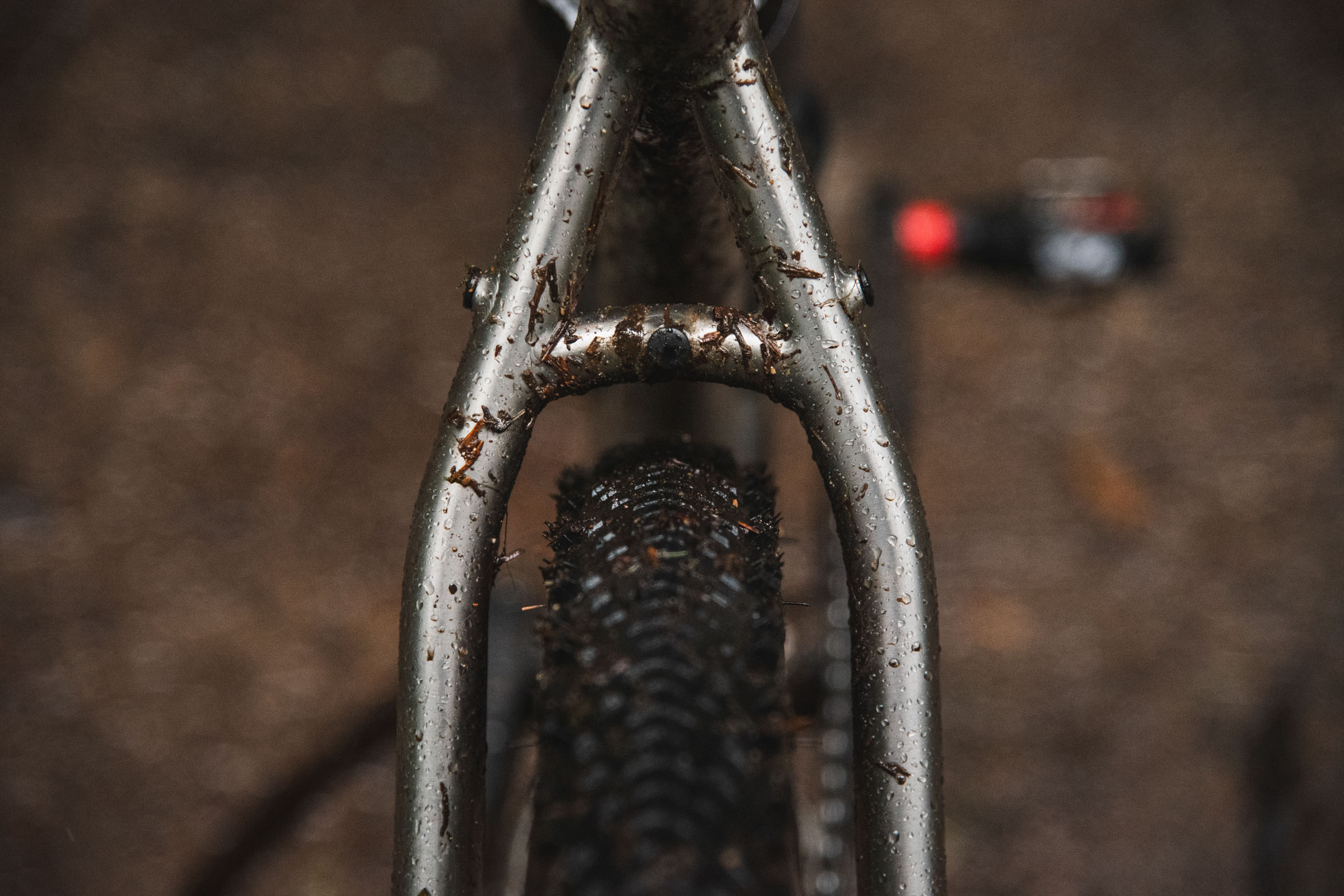

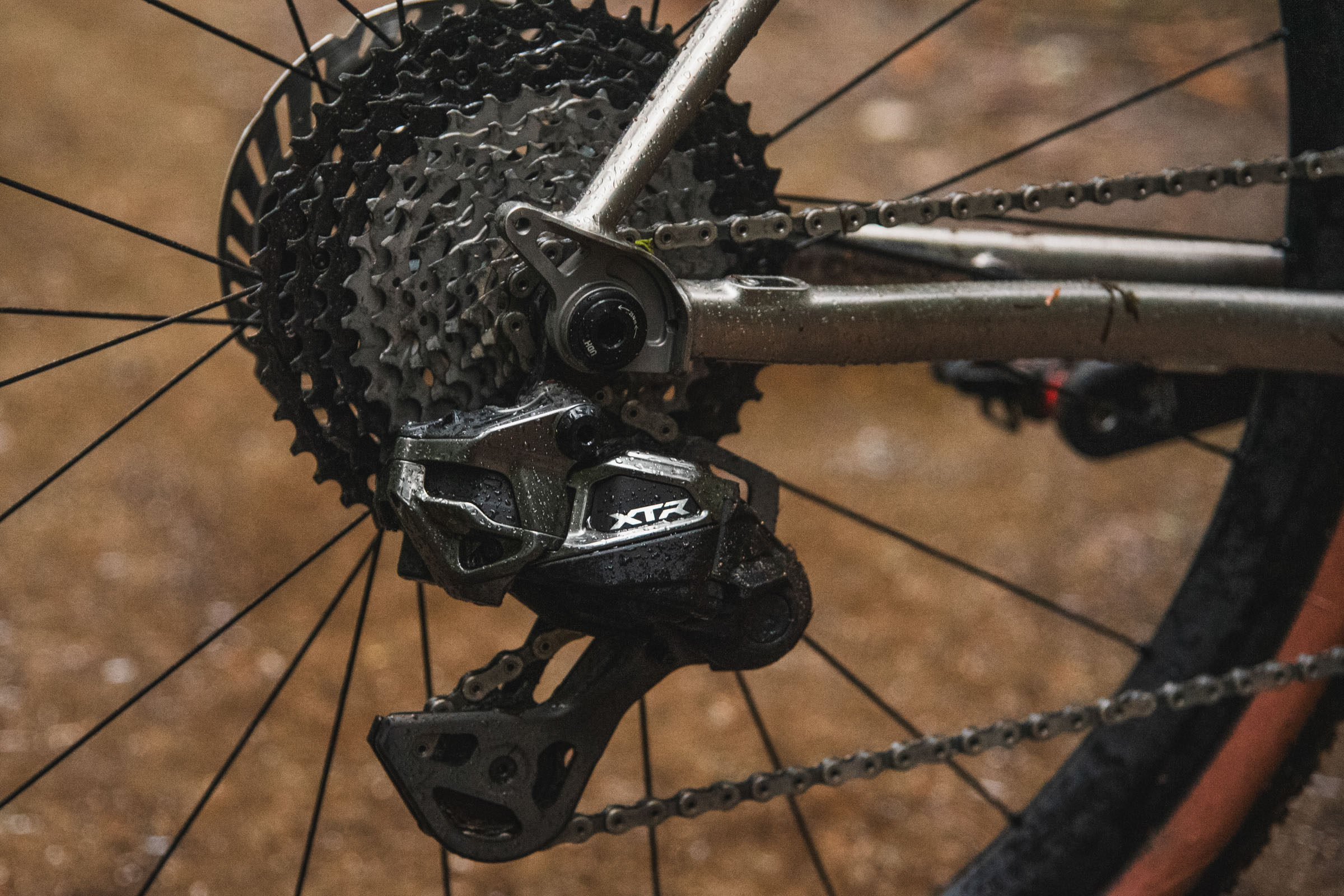

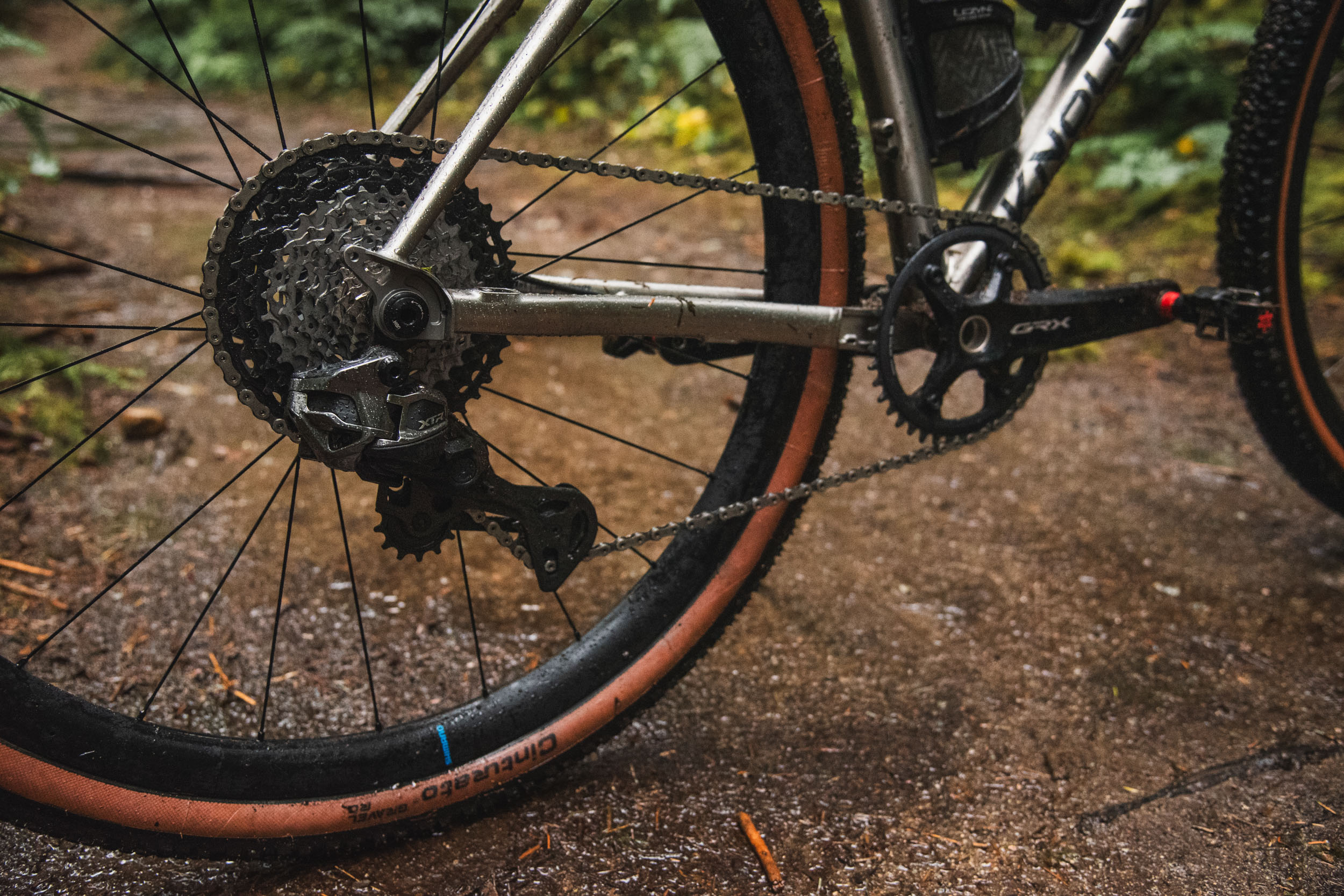

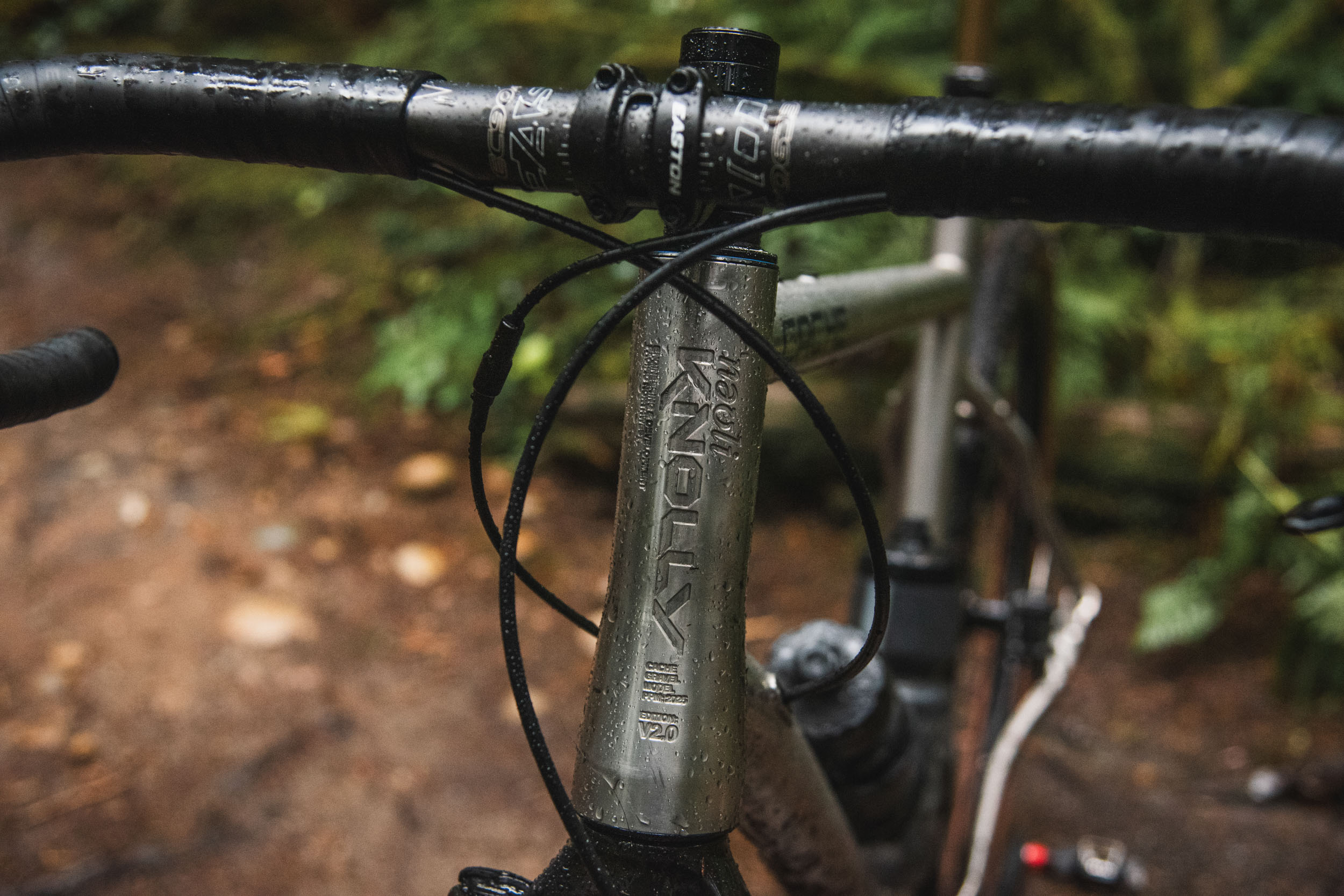

Like the original Cache Ti, the new version is still built around a titanium frame with custom-shaped tubing and CNC-machined details. It maintains 29 x 2.1″ tire clearance in the back, and 2.3″ clearance up front, as well as a nearly identical silhouette with a short seat tube and sloping top tube. It is designed to work with 1x and 2x drivetrains, both mechanical and electronic. Knolly has moved to a SRAM UDH rear dropout for the latest Transmission drivetrains, but they also include a CNC-machined hanger for hanger-mounted setups. Knolly has also added the option for a new carbon gravel fork with an adjustable offset (49mm or 54mm), which is set up with three-pack mounts and fender mounts.

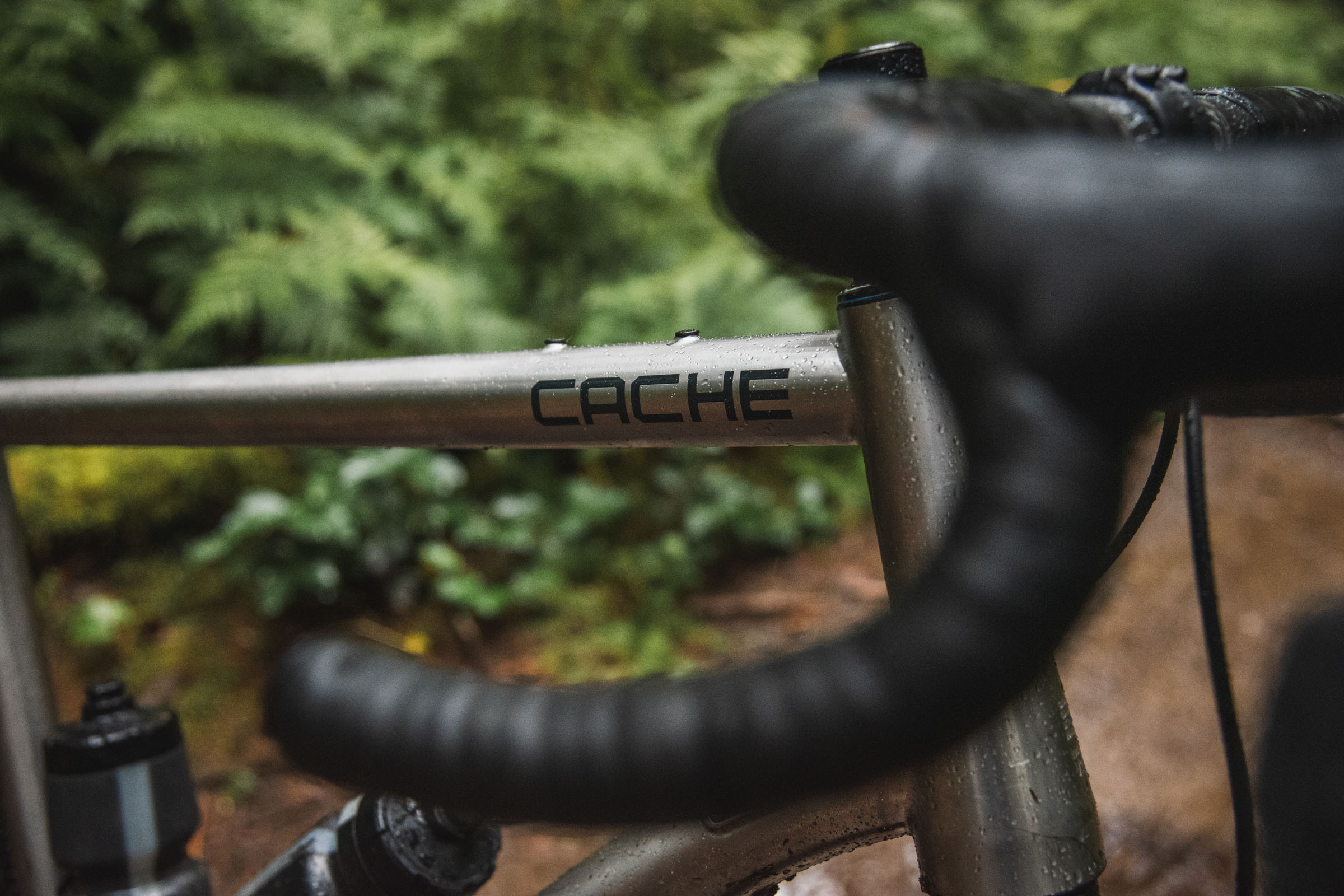

The Cache Ti is still offered in seven frame sizes, but the head tube angle has been slackened from 71° to 70°, and the axle-to-crown length has been increased to accommodate modern short-travel gravel suspension forks. Other updates include the addition of top tube bosses and a brand-new Cache gravel fork. Other specs include a 68mm threaded bottom bracket, 12mm hub spacing, and flat-mount brakes.
Cache Titanium Geometry
| Size | 49 | 52 | 54 | 56 | 58 | 60 | 62 |
|---|---|---|---|---|---|---|---|
| Reach (mm) | 386.5 | 394 | 401 | 408.5 | 417 | 423 | 436 |
| Stack (mm) | 554.5 | 570.5 | 587.5 | 602 | 616.5 | 635.5 | 644.5 |
| Head angle | 70.0° | 70.0° | 70.0° | 70.0° | 70.0° | 70.0° | 70.0° |
| Head tube length (mm) | 103 | 119.5 | 138 | 153.5 | 168.5 | 189 | 199 |
| Fork AC Length (mm) | 425 | 425 | 425 | 425 | 425 | 425 | 425 |
| Effective top tube length (mm) | 545.5 | 557.5 | 569.5 | 581 | 593.5 | 605 | 621 |
| Effective seat tube angle | 74° | 74° | 74° | 74° | 74° | 74° | 74° |
| Seat tube length (mm) | 410 | 438 | 464 | 492 | 520 | 548 | 576 |
| Seat tube angle (Actual) | 72.5° | 72.5° | 72.5° | 72.5° | 72.5° | 72.5° | 72.5° |
| Stand over height (mm) | 719 | 735 | 751 | 772 | 786 | 810 | 821 |
| Chainstay length (mm) | 424 | 424 | 424 | 424 | 424 | 424 | 424 |
| Wheelbase Length (mm) | 1029.5 | 1042.5 | 1056 | 1069 | 1082.5 | 1095.5 | 1112 |
| BB height (mm) | 276 | 276 | 276 | 276 | 276 | 276 | 276 |
| BB drop (mm) | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
Knolly Cache Titanium Price/Build List
- Frame-only: starting from $4,439 USD
- Frame + Fork: starting from $4,919 USD
- Shimano GRX 820 (1 x 12) w/ I9 GRCX / Carbon Adventure Fork: $6,899 USD
- Shimano GRX 820 (2 x 12) w/ I9 GRCX / Carbon Adventure Fork: $6,899 USD
- Shimano GRX 827 Di2 (1 x 12) w/ I9 GRCX / Carbon Adventure Fork: $8,449 USD
- SRAM Force XPLR (1 x 13) w/ Zipp 303 XPLR S / Carbon Adventure Fork: $8,449 USD
- SRAM Red XPLR (1 x 13) w/ Zipp 303 XPLR S / Carbon Adventure Fork: $9,999 USD
The Knolly Cache Titanium is available to purchase now at KnollyBikes.com or through your nearest Knolly dealer.
