After a short hiatus, the Curve Kevin of Steel is back with increased tire clearance, updated geometry, and even more size options. Take a closer look at the new Curve Kevin of Steel 4 here…

As Curve puts it, the Kevin of Steel is “a reliable, versatile, heat-treated chromoly steel gravel bike built for real adventures, long rides, rough roads, bikepacking, commuting, and whatever else you define as gravel this week.” Lucas tested the original version a few years ago and praised its versatility and useful cargo fork. The Kevin of Steel hasn’t been available for a minute, but we’re excited to hear that Curve is bringing it back.

Curve Kevin of Steel

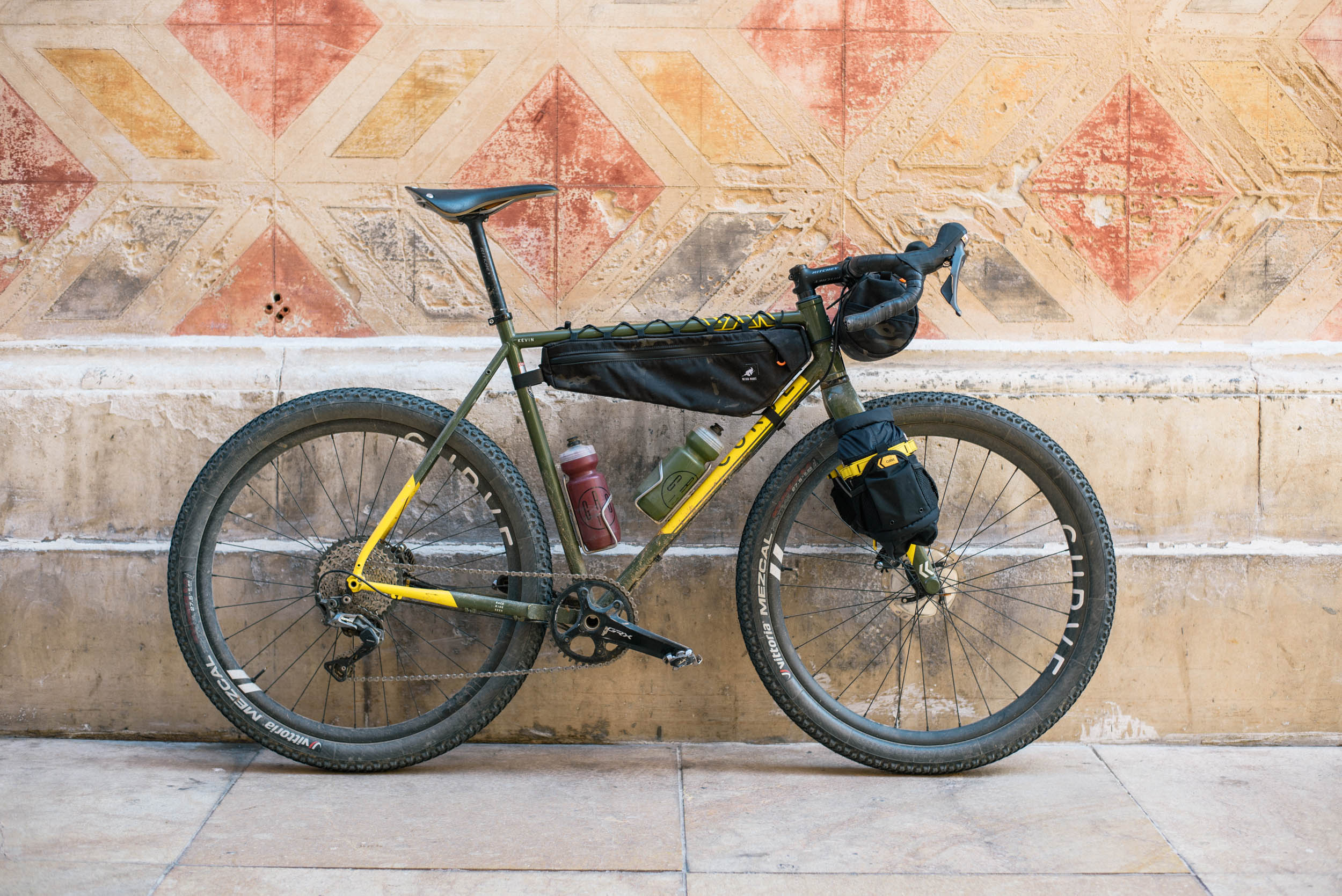

From Lucas’s Kevin of Steel Review

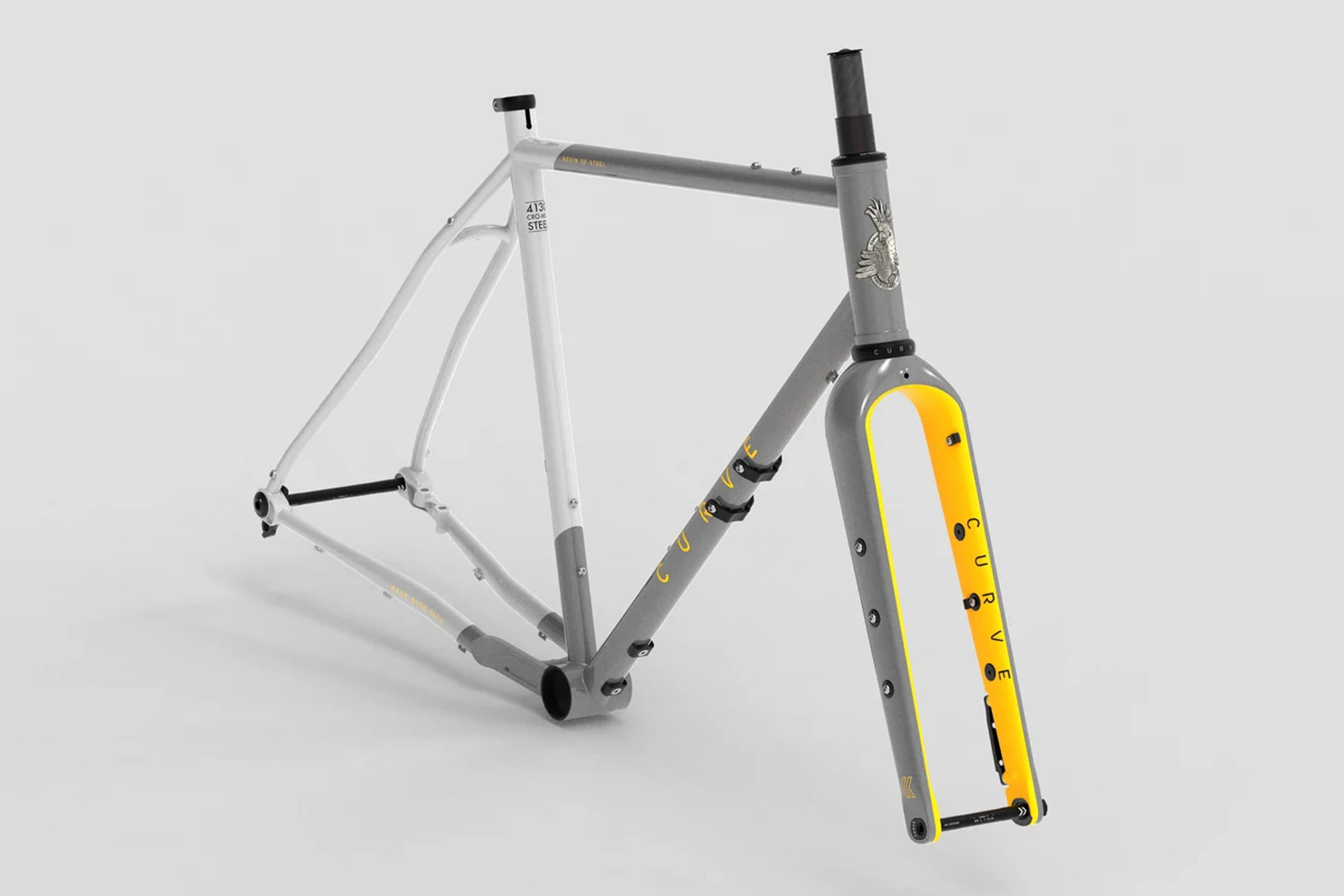

The new Curve Kevin of Steel 4 keeps the same spirit as the previous version but has been updated to follow the geometry of the GXR4. According to Curve, that means more tire clearance (29 x 2.2” out back and 29 x 2.4″ up front), improved handling, and a higher front end on the larger sizes. It’s available in seven frame sizes (XXS to XXL), the seat tube now has a dropper post port, and it uses a single-sided yoke to reduce weight while retaining stiffness through the bottom bracket area.

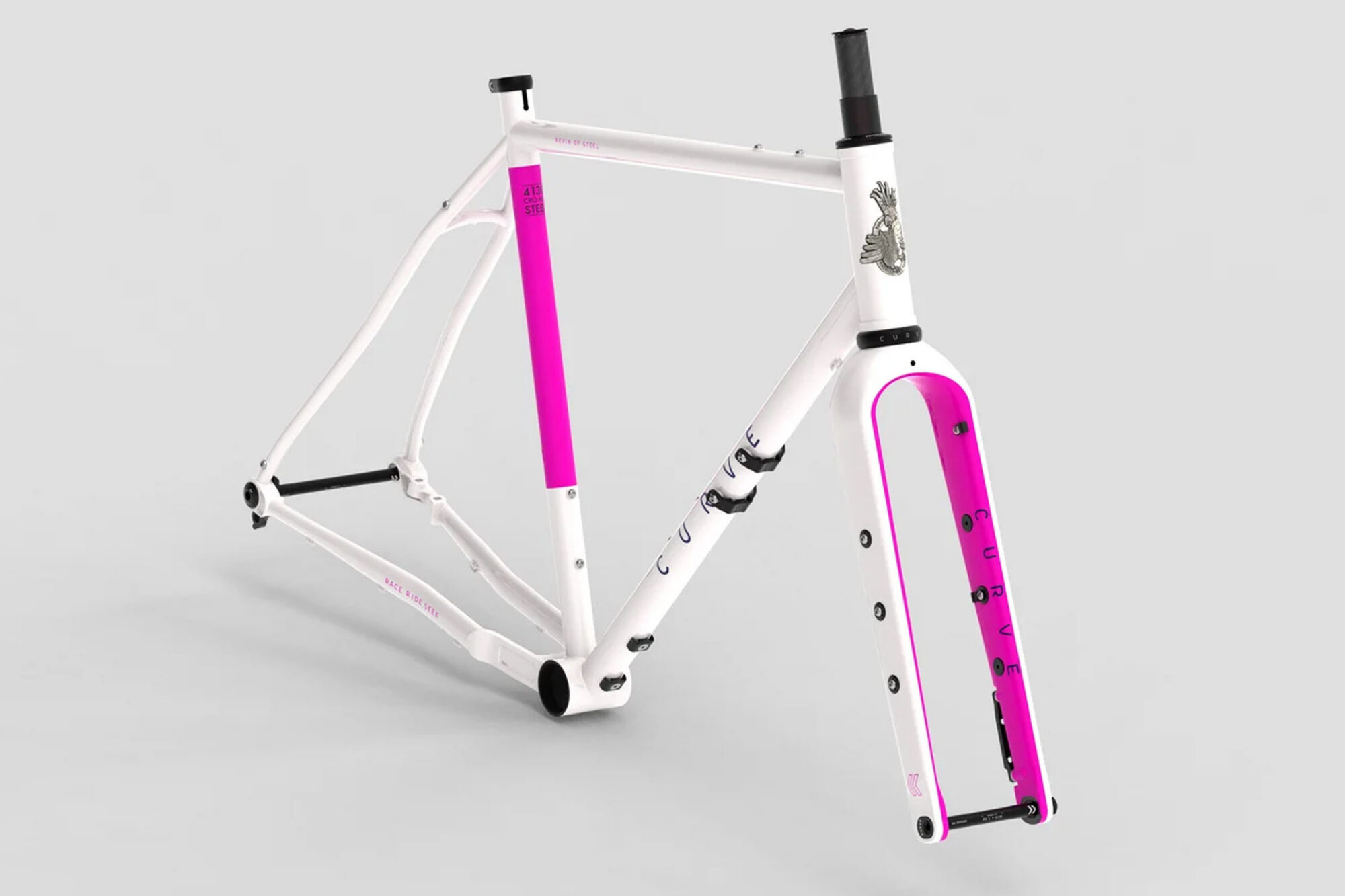

curve kevin of steel 4 pre-order

Curve Kevin of Steel 4 Geometry

Size XXS XS SM MD LG XL XXL
Effective Top Tube 528 539 552 562 572 587 602
Seat Tube Length 450 480 510 540 555 570 585
Seat Tube Angle 73° 73° 73° 73° 73° 73° 73°
Head Tube Angle 70.6° 70.6° 71.1° 71.1° 71.6° 71.6° 71.6°
Chain Stay 436 436 436 439 439 442 442
BB Drop 72 70 70 70 68 68 68
BB Height 290 292 292 292 294 294 294
Wheelbase 1013 1026 1034 1048 1054 1073 1089
Head Tube Length 105 120 135 150 170 190 220
Reach 360 368 376 382 386 395 402
Stack 547 559 575 589 608 627 656
Front Center 587 599 608 618 624 640 656
Standover 739 764 788 812 830 846 866
Fork Length 415 415 415 415 415 415 415
Fork Offset 52 52 52 52 52 52 52
Trail 72 72 69 69 66 66 66
Geometry shown with 52mm offset fork position
curve kevin of steel 4 pre-order

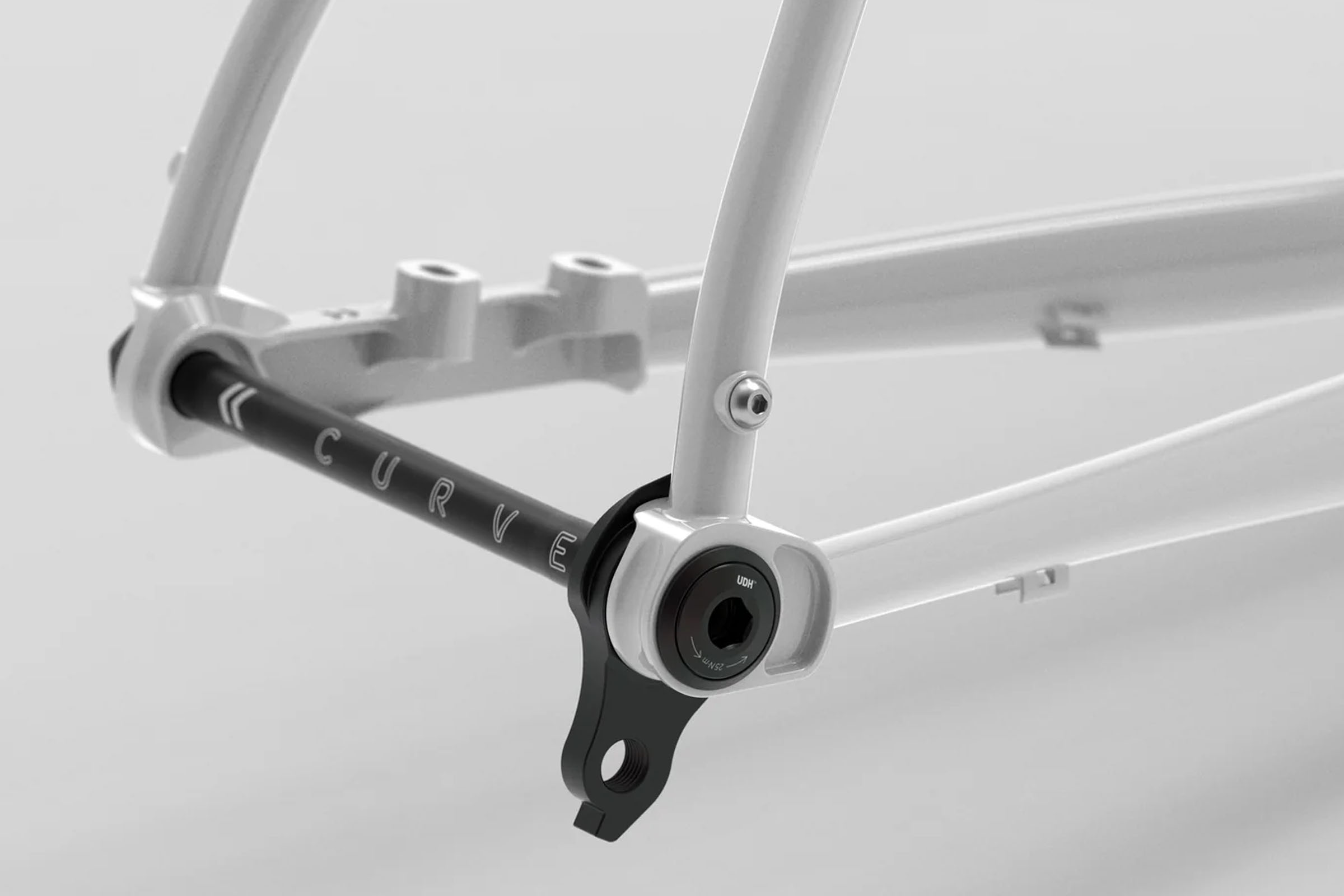

The Kevin of Steel 4 has more mounts than ever before, including rear rack mounts, fender mounts, top tube mounts, and five bottle mounts, including the offset down tube mounts popularized on the GMX+. The offset and underside down tube mounts let riders run three bottles while still using a full-size frame bag, even on smaller frame sizes. It’s paired with Curve’s Ride 415 VGM fork, which has extra-strong three-pack mounts that can carry up to 17 pounds (8 kilograms) per fork leg. The Kevin of Steel 4 now uses a SRAM UDH rear dropout and maintains external cable routing for easier maintenance.

  • curve kevin of steel 4 pre-order
  • curve kevin of steel 4 pre-order

The Kevin of Steel 4 is available for pre-order today and requires a 50% deposit, with the rest due on arrival. Framesets are scheduled to arrive in early 2027 and include the Kevin of Steel 4 frame, Ride 415 VGM Fork, axles, hanger, headset, cable guides, and a seatpost clamp. To pre-order, email sales@curvecycling.com. Curve doesn’t specify the price online, but the previous version cost $2,399 AUD (~$1,600 USD), so we expect it to be somewhere around that price.

Learn more at CurveCycling.com.
