Just announced, the all-new Jeronimo Cycles MIZE Ti blends klunker vibes with a modern titanium frame and fork to make what looks like an interesting dirt-road touring bike. Find all the details and specs here…

From the mind of Pedro Jeronimo, the new Jeronimo Cycles MIZE Ti is a departure from the brand’s typical range of trail-oriented hardtails and gravel bikes. Jeronimo positions the new titanium klunker as a mountain bike built for tackling trails and tracks around the world with confidence. Read on for details.

Jeronimo Cycles Mize titanium klunker
  • Jeronimo Cycles Mize titanium klunker
  • Jeronimo Cycles Mize titanium klunker
  • Jeronimo Cycles Mize titanium klunker
  • Jeronimo Cycles Mize titanium klunker
  • Jeronimo Cycles Mize titanium klunker

Named after a man who travelled around the villages of Miranda, Portugal, with his inseparable pack mule, MIZE features clearance for 29+ tires and is paired with 50mm rise titanium handlebars for an upright “touring” position. Long 445mm chainstays and a 51mm fork offset give it a lengthy wheelbase for stability, while a relatively off-road-focused geometry suggest a confident manner.

Size M M/L L
Head tube angle 67° 67° 67°
Head tube 135 155 170
Top tube (virtual) 602 630 660
Seat tube angle 75° 75° 75°
Seat tube 440 460 480
Chainstays 445 445 445
Reach 435 460 485
Stack 610 628 642
BB Drop 60 60 60
Wheelbase 1165 1197 1228
Fork Offset 470 470 470
Stem 40 40 40
Jeronimo Cycles Mize titanium klunker
  • Jeronimo Cycles Mize titanium klunker
  • Jeronimo Cycles Mize titanium klunker

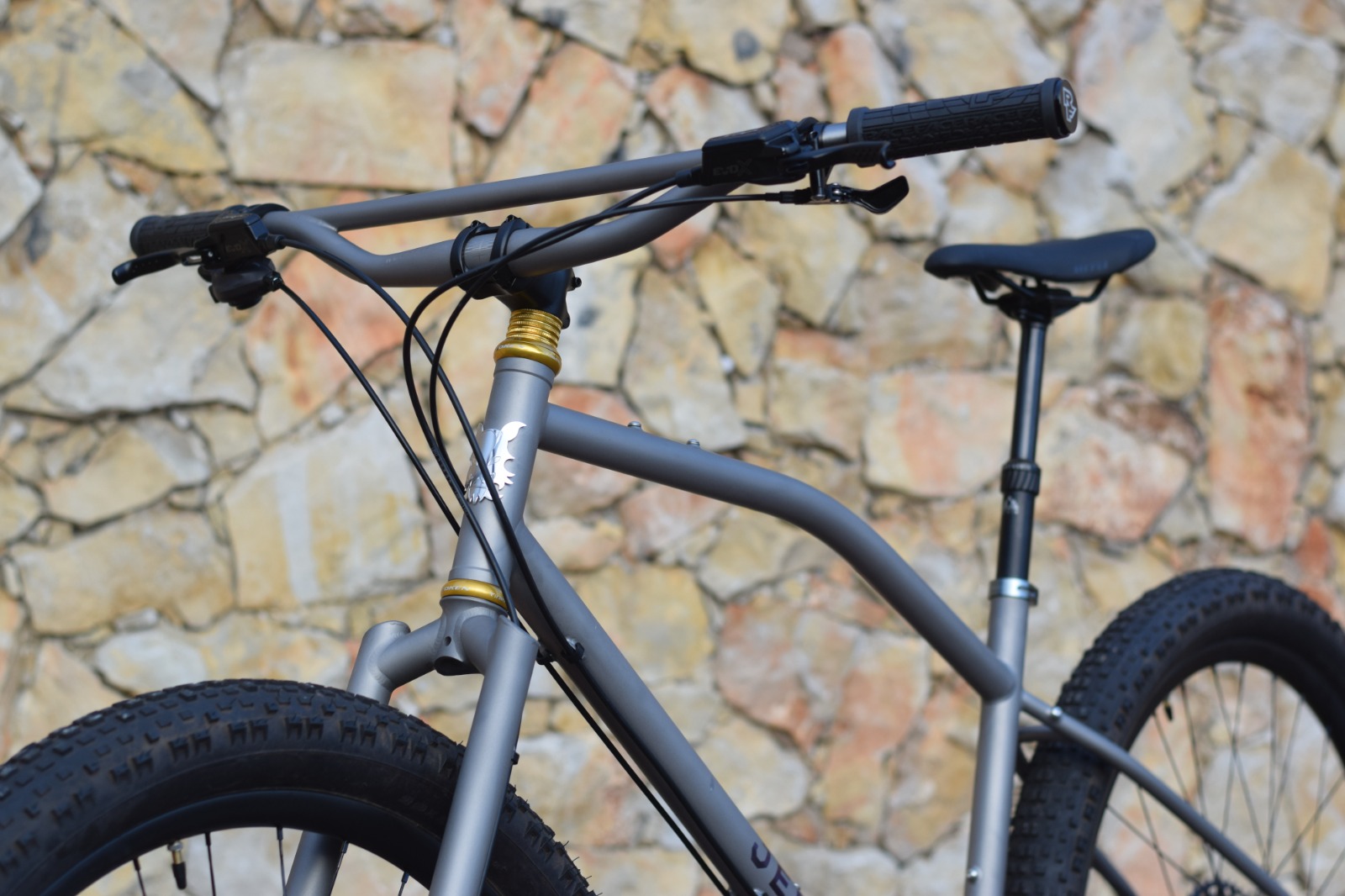

Featuring a distinctive top tube bend that harkens back to the old 1950s tracker bikes—much like the Stooge Dirt Tracker I reviewed—the MIZE frame is constructed from premium Ti3Al2.5V double-butted titanium tubing and finished in a sleek matte gray with anodized decals. It’s built specifically to pair with the brand’s 470mm titanium fork (with a 51mm rake) but is also compatible with suspension forks in the 80–100mm travel range. MIZE can run anything from 29 x 2.2″ to 29 x 3.0″ tires, although it seems like a prime candidate for a 29+ setup to me. The 15 x 110mm Mize Ti fork has a full titanium construction, clearance for 29 x 3.0″ tires, three-pack cage mounts on each leg, internal routing for dynamo hub lighting, light and fender mounts, and a 470mm axle-to-crown measurement.

FRAME SPECS

  • Titanium Ti3Al2.5V double butted frame with anodized decals
  • Tire Clearance: 29 x 2.2-3.0″

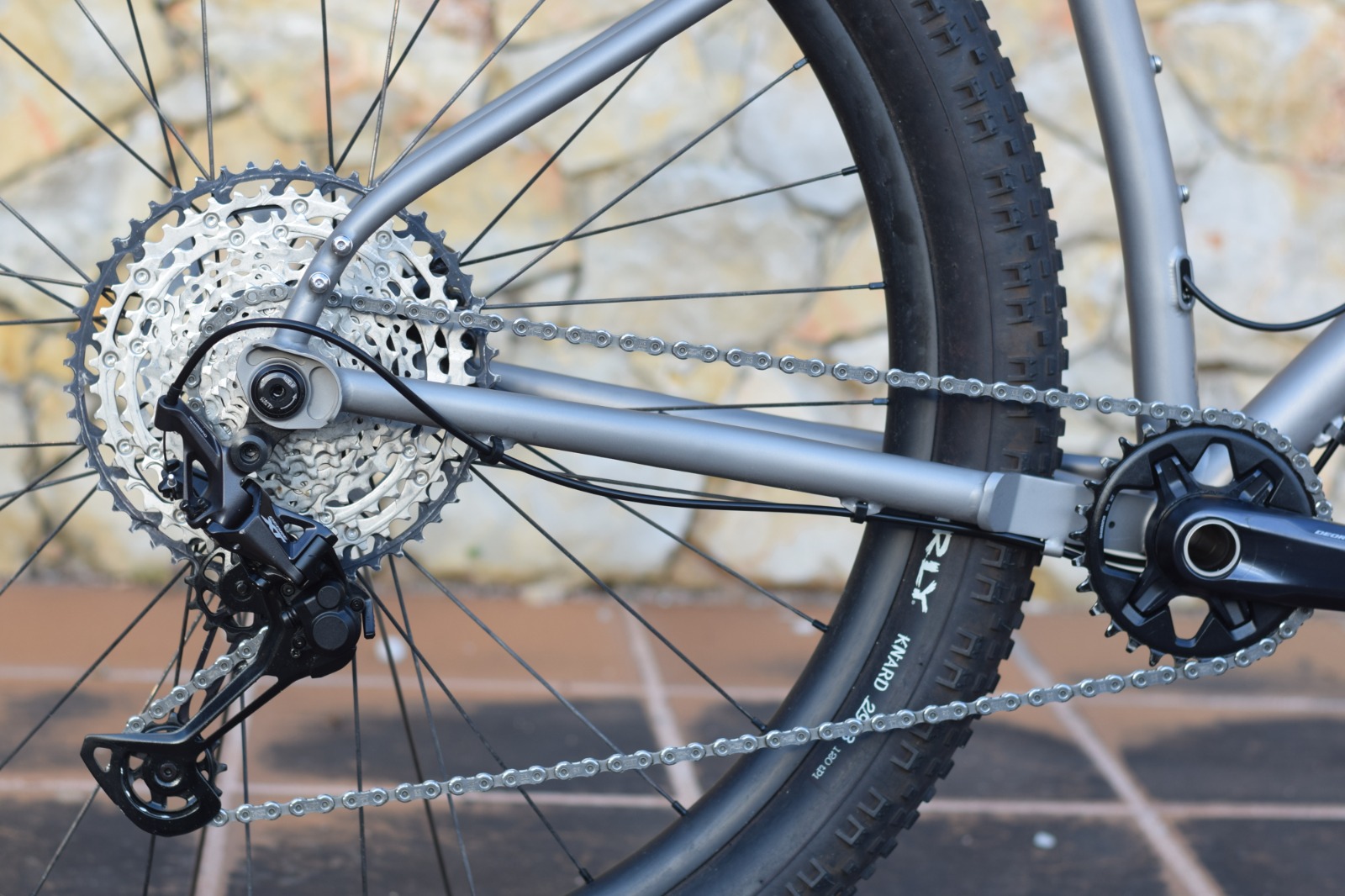

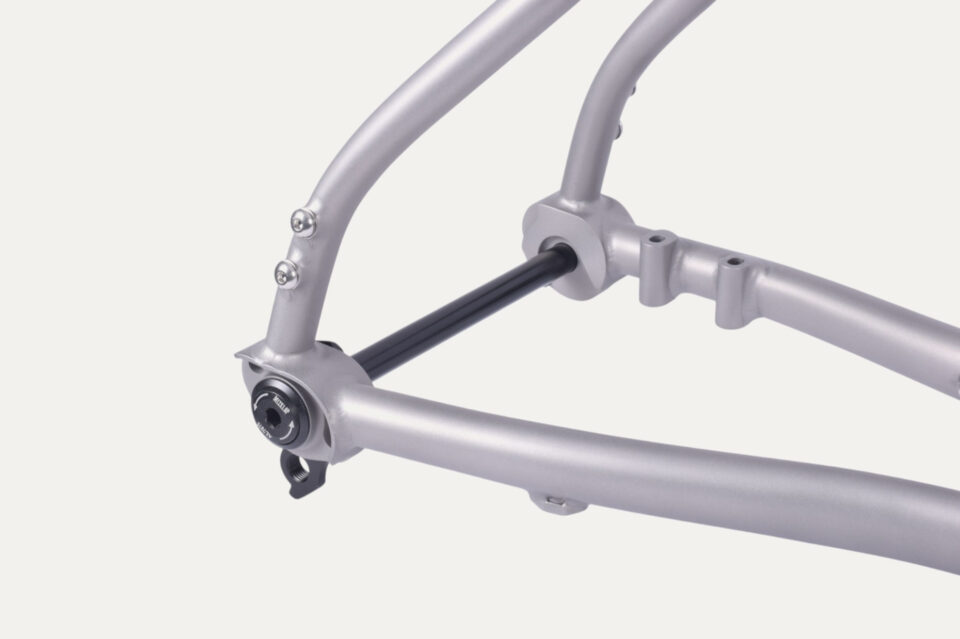

  • Rear axle with replaceable 12x148mm dropout; axle and dropout included
  • Compatible with the SRAM UDH Full Mount T-type rear derailleurs
  • 73mm BSA Bottom Bracket
  • For flat-mount caliper with 160mm native disc rotor (compatible with post-mount caliper with adapter) or 180mm with adapter
  • Head tube: EC34/EC34 type
  • Seat clamp included for 27.2mm diameter seatpost
  • Frame weight (size M/L): 1,790 grams
  • Kit includes Chris King NoThreadSet™ EC34/EC34

FORK SPECS

  • Designed for 470mm fork with 51mm Rake
  • Titanium fork
  • 3x bosses per leg
  • Hole to fix light
  • Mounts for mudguard
  • For post-mount caliper with 180mm native disc rotor

The Jeronimo Cycles MIZE Ti is available as a frame kit that includes the titanium fork and Chris King headset for roughly €1,900 to 2,100 or just the frame without a fork for €1,485 to 1,650. It appears that prices are dependent of VAT and shipping. Learn more over at Jeronimo Cycles.
