The Pivot LES SL Drop Bar is a new suspension-corrected mountain bike from Pivot Cycles built to link gravel roads and singletrack detours. For more on this new model, dive into all the details below…

The Pivot LES SL Drop Bar is a new offering from the Arizona brand for riders seeking adventure. Built around a 29″ wheel platform with a rigid frame and 100mm of travel at the front, the LES SL appears to further blur the lines between gravel and mountain bikes. The bike features an 800-gram Hollow-Core carbon frame, full internal routing, UDH compatibility, and can fit a 29 x 2.4″ tire. It also uses a 27.2mm seatpost, boost spacing, and a Pressfit BB92 (PF92) bottom bracket.

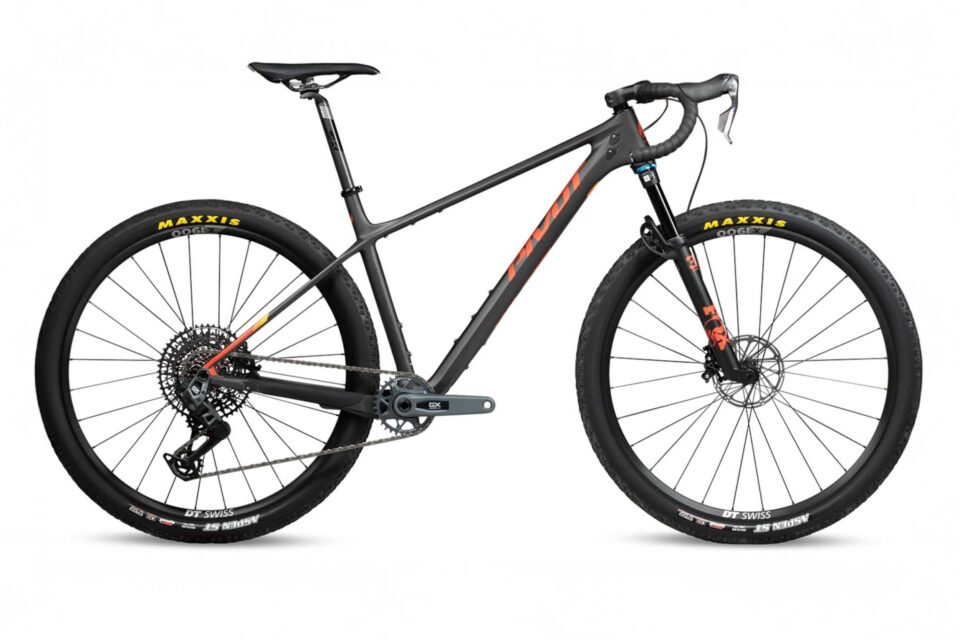

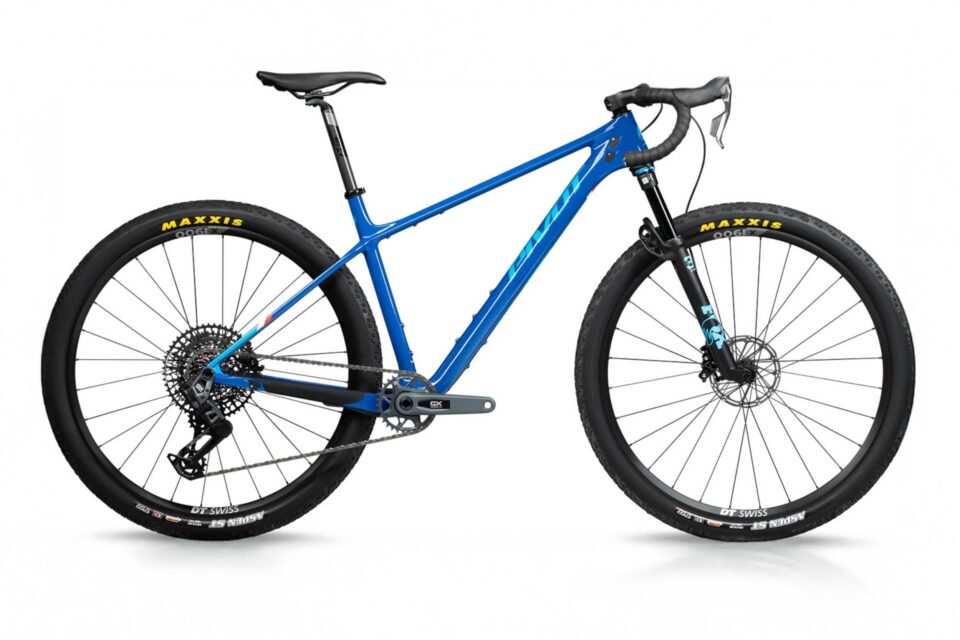

Pivot LES SL Drop Bar
  • Pivot LES SL Drop Bar
  • Pivot LES SL Drop Bar
  • Pivot LES SL Drop Bar

The Pivot LES SL is 1x specific, fits a 38T chainring, and is designed for 100-120mm of fork travel. Pivot says customers can use an aftermarket rigid fork, and that they recommend axle to crown greater than 480mm. The bike uses an integrated headset, has a maximum brake rotor allowance of 180mm, and has a 44mm fork offset. While the official build weight is unclear, Pivot says the complete Team XTR comes in at 19.8 pounds.

With a longer wheelbase and a slack head angle, the LES SL looks like a very capable drop-bar bike. Equipped with bottle bosses on both the underside of the down tube and the top tube, as well as full frame mounts throughout the main triangle, it may have some fast bikepacking capability built in. While all models of the LES SL are dropper post compatible, the travel length varies between small and large frames.

  • Pivot LES SL Drop Bar
  • Pivot LES SL Drop Bar

Pivot LES SL Drop Bar Build Kit

  • Frame: LES SL
  • Fork: Fox Performance Stepcast 32 29″, 44mm offset, GRIP – 100mm
  • Crankset: Sram GX Eagle DUB 32t
  • Derailleur: SRAM GX Eagle 12-speed
  • Shifter: SRAM Force AXS HRD
  • Cassette: Sram GX 1275 Eagle Transmission 10-52t
  • Wheelets: DT Swiss X1900 w/ DT 370 hub, 25mm, Boost spaced
  • Tires: Maxxis Aspen
  • Headset: Pivot Precision Sealed Integrated Cartridge
  • Handlebar: Phoenix Sport Gravel Aluminum 40-46cm
  • Stem: Phoenix Gravel Stem 31.8mm – 60mm
  • Saddle: Phoenix WTB Race Volt (narrow)
  • Seatpost: FSA SL-K – 20mm Setback
  • Brake Calipers: SRAM Level Silver 2-piston
Pivot LES SL Drop Bar

With a build kit featuring DT Swiss wheels, a Fox Stepcast fork, and electronic shifting, the LES SL isn’t exactly budget-minded. Currently, the bike is only available as a complete and comes in three colors: Blue Ribbon, Silver Bullet, and Black Sunset. Across its five sizes, equipped with the Ride GX Eagle Transmission, the bike retails for $6,399 and can be purchased directly from Pivot or from a local Pivot dealer.

Pivot LES SL Drop Bar Geo

Size XS Small Medium Large XL
Effective Top Tube Length (CM) 56.5 59.2 62 63.8 66.8
Reach (CM) 40 42 44.5 46 48.5
Wheelbase (CM) 108.6 110.3 113.2 115 118.3
CS Length (CM) 42.9 42.9 42.9 42.9 42.9
Effective ST Angle 75 74.5 74.5 74.5 74.5
ST Length (CM) 35.5 39.5 42 47 51
HT Angle 68 68.5 68.5 68.5 68.5
HT Length (CM) 8.5 9 10 11 13
BB Drop (CM) 6.4 6.4 6.4 6.4 6.4
Stack (CM) 59.4 60.1 60.1 62 63.8

For more on the Pivot LES SL Drop Bar, visit PivotCycles.com.
