The new RatKing Chull is a compact Chromoly steel cycle truck with a large frame-mounted cargo platform, a 20-inch front wheel, and a 26- or 29-inch rear wheel. Pre-orders are open now. Find all the details here…
Sometimes, it takes a specific push for makers to start offering a new product, and in the case of Smith Levi of RatKing Frames, it took becoming a father to really think about offering a cycle truck. Smith had been toying with the idea of building one for over a decade but never really had a good reason. All that changed when he became a dad. Smith explains, “I’m looking for more ways to bring Frank along with me; the timing finally feels right. Gas prices being what they are certainly helped, too.”

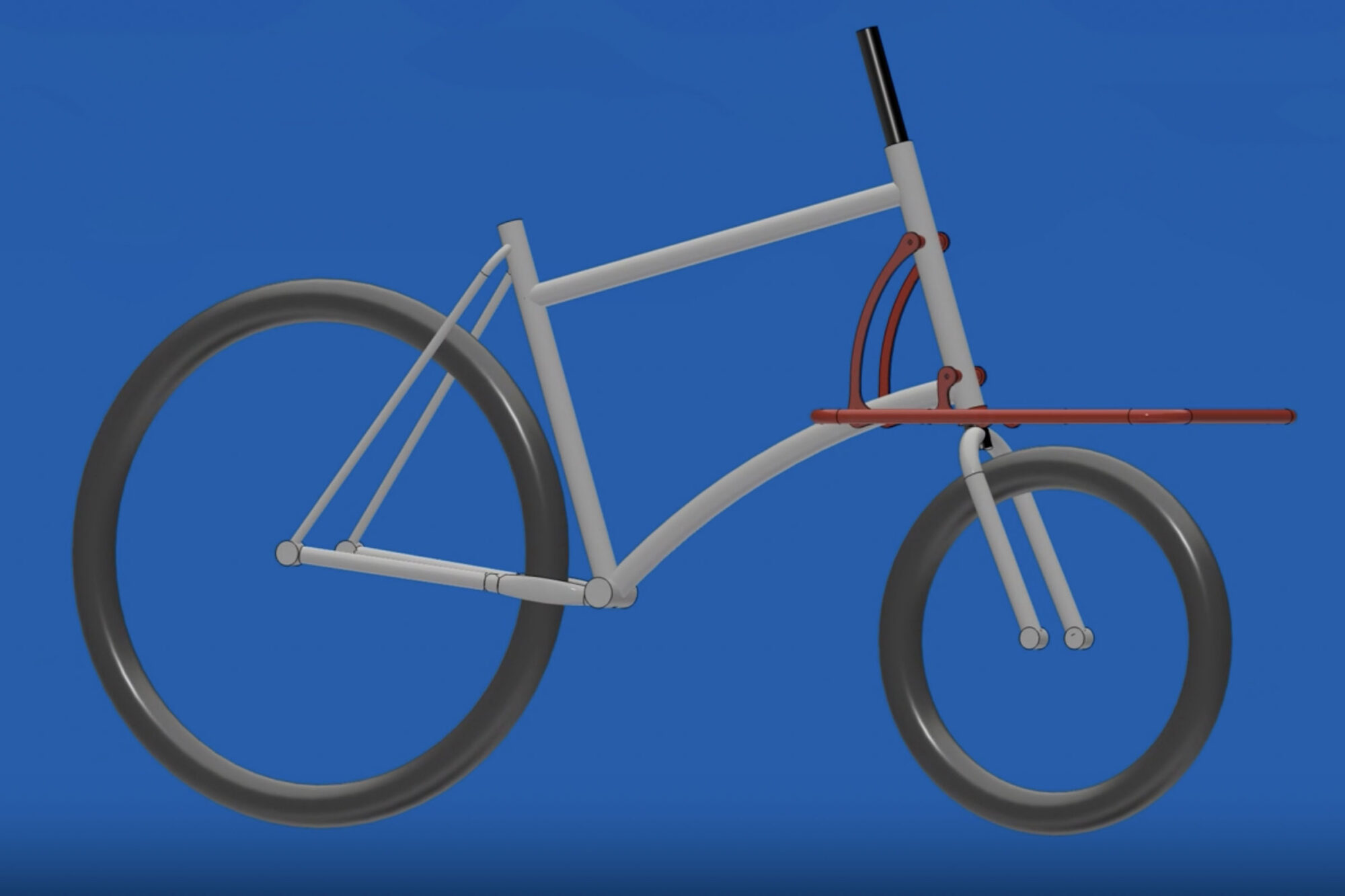

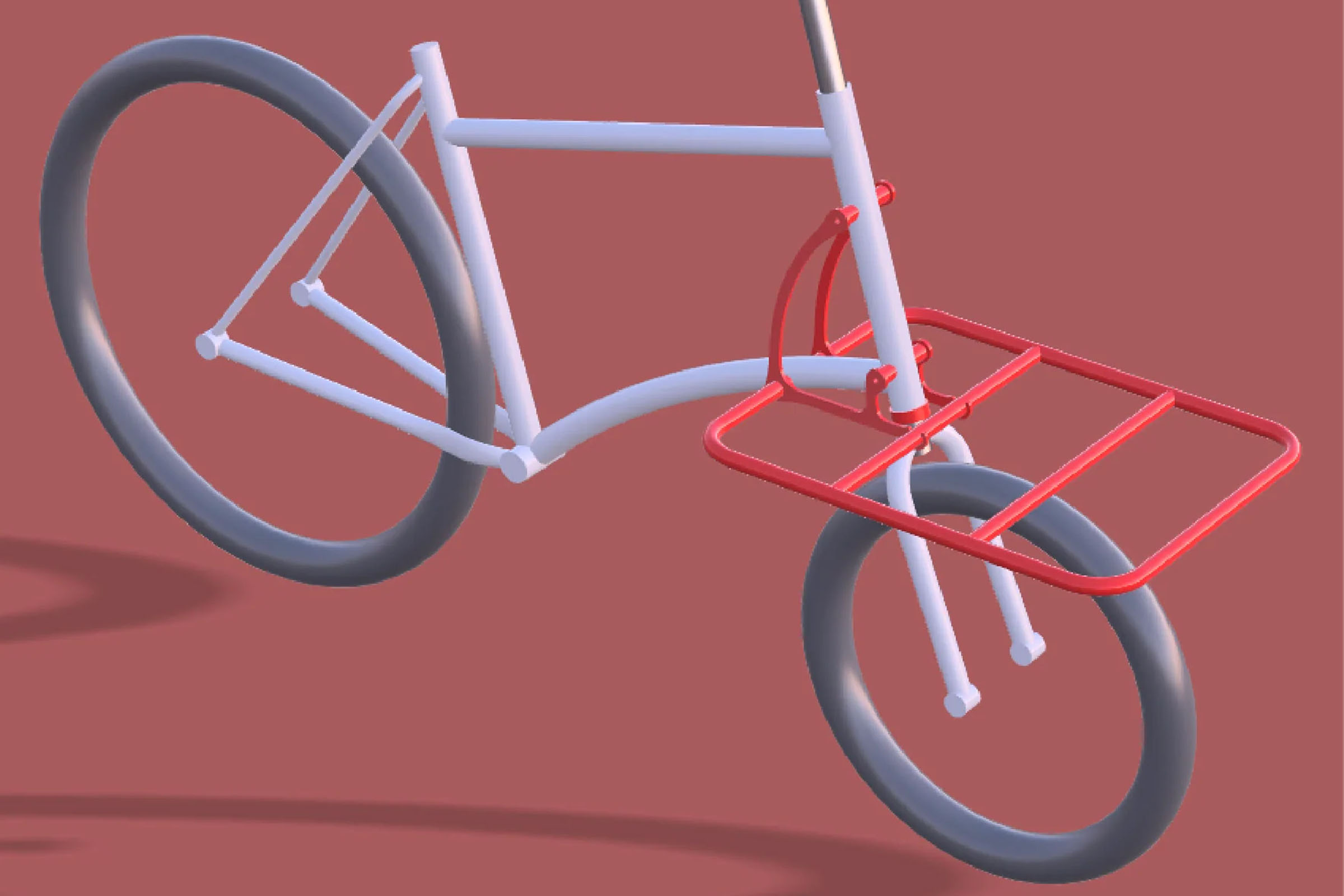

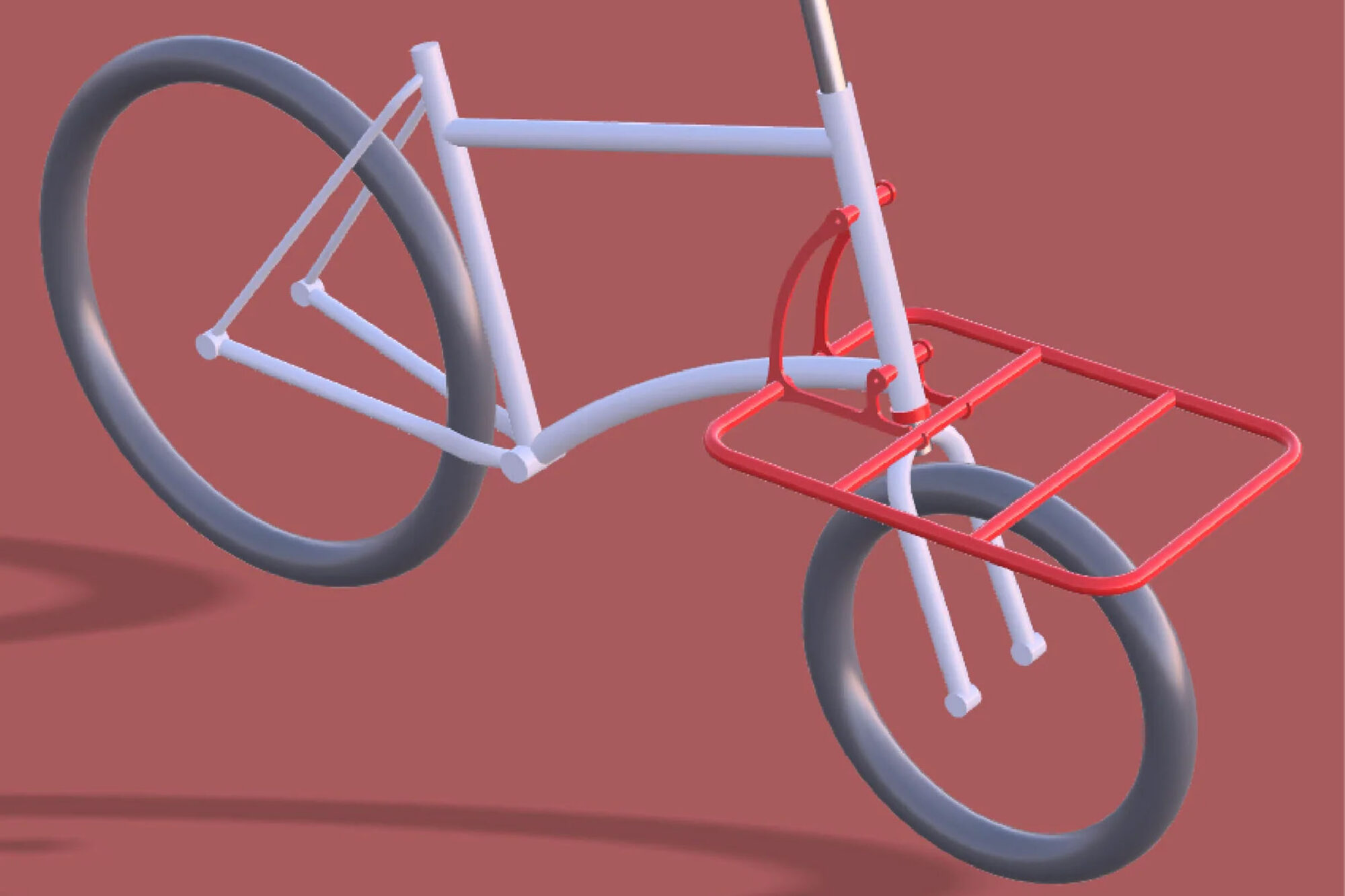

The new RatKing Chull is Smith’s take on the ultimate dad cycle truck for rides into town, errands, and post office runs. It is built around a 20-inch front wheel and a low, frame-mounted cargo platform, with a 26- or 29-inch rear wheel to keep the bike rolling efficiently. The cargo platform measures 16 × 20″, with a 14 × 16″ cargo area that extends forward of the head tube. It’s also fully removable for when you don’t need it.
Smith explains that the geometry is designed specifically around a loaded front platform, with a short overall wheelbase and steering intended to remain controlled and intuitive under load. The target load capacity is 75 pounds, and it’s not intended to carry children or other humans. The frame uses a mix of straight-gauge 4130 and Reynolds 631 chromoly steel tubing, and features 12mm thru-axles, IS disc brake mounts front and rear, a 30.9 mm seatpost with dropper routing, a 73mm BSA bottom bracket, and clearance for 2.4″ tires.

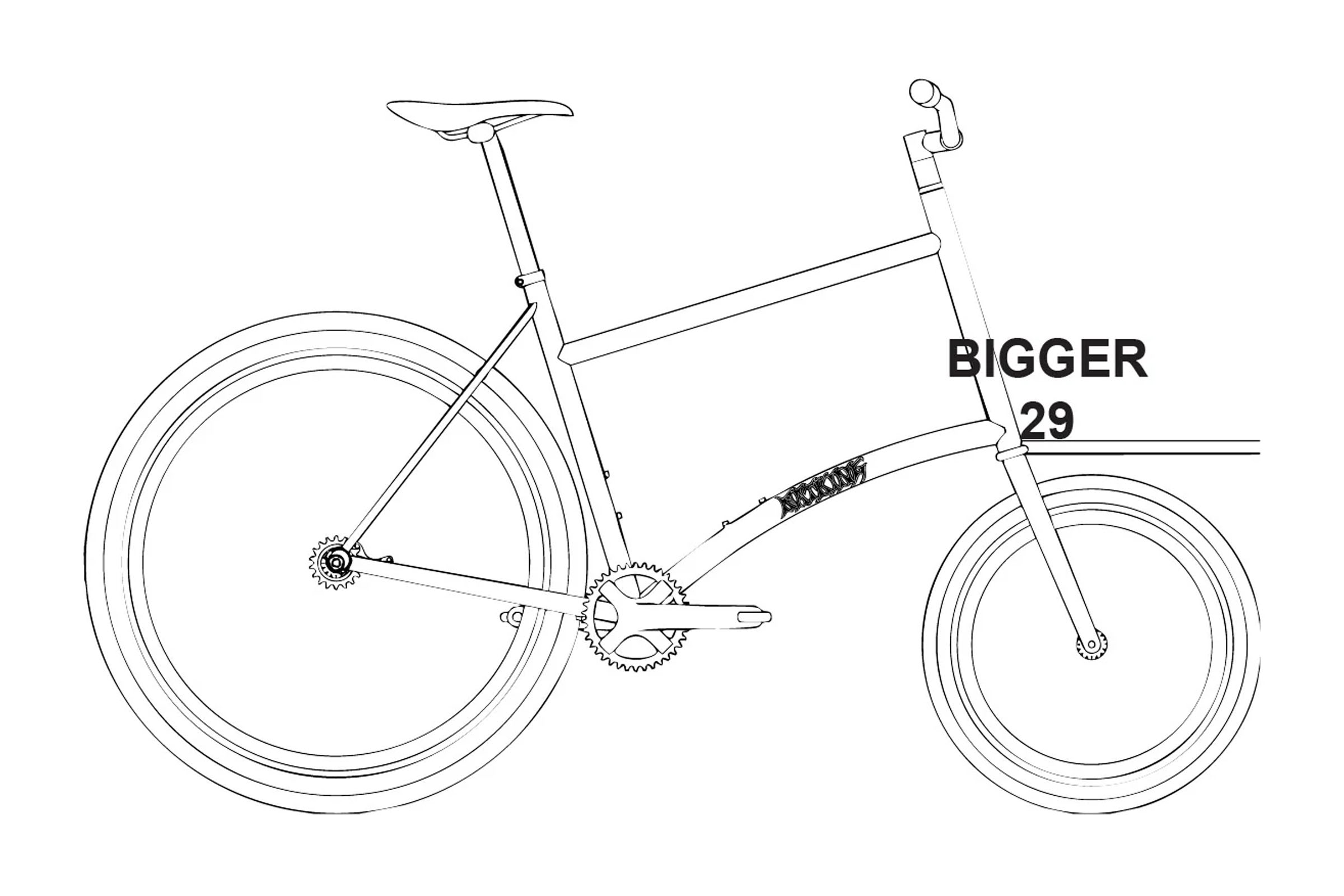

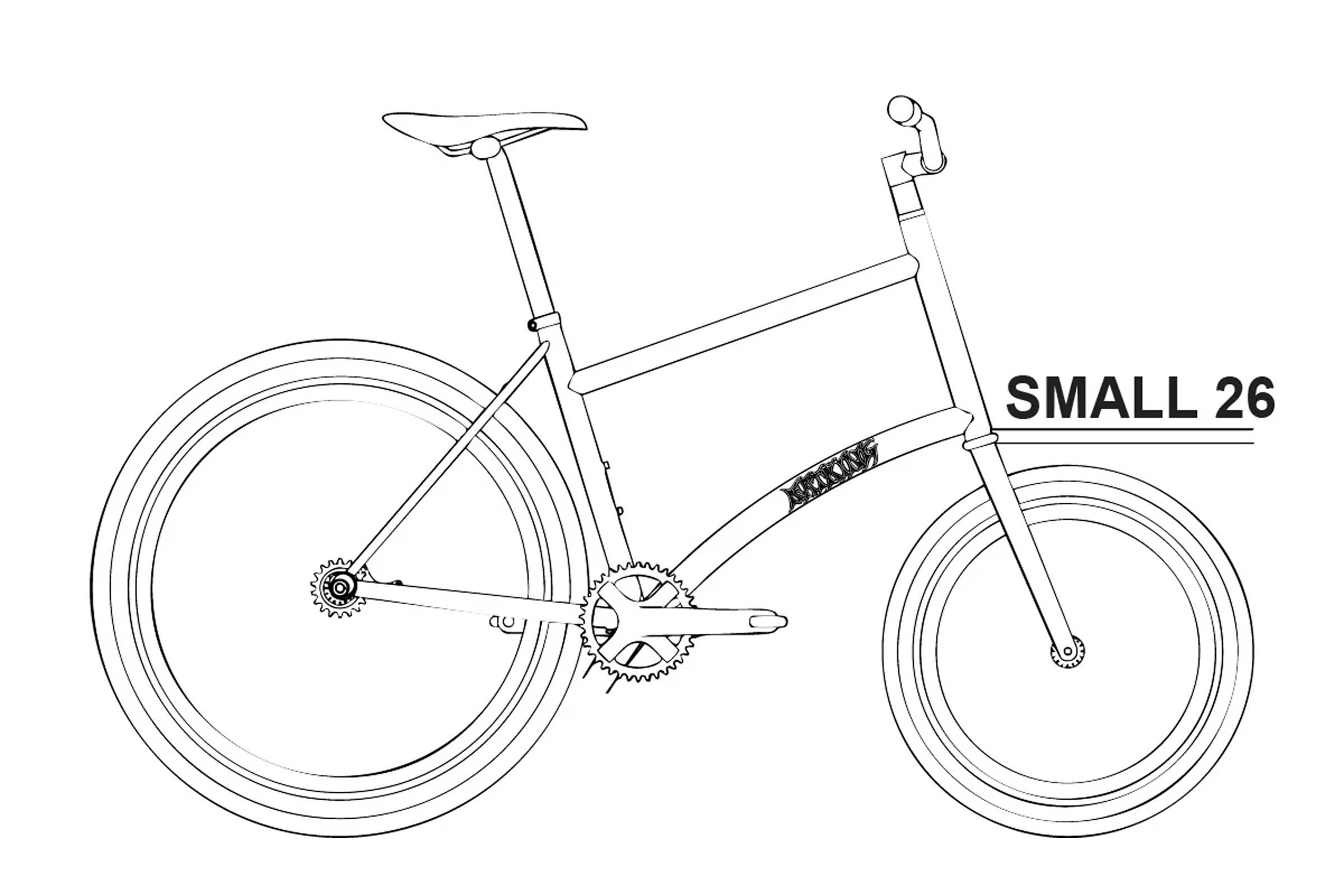

RatKing Chull Geometry
| Size | SM (26″) | SM (29″) | BIG (26″) | BIG (29″) | BIGGER (26″) | BIGGER (29″) |
|---|---|---|---|---|---|---|
| Seat tube (C-T) | 430 | 430 | 480 | 480 | 530 | 530 |
| Seat tube (C-C) | 342 | 342 | 381 | 381 | 400 | 400 |
| Reach | 370 | 369 | 401 | 401 | 437 | 437 |
| Stack | 545 | 544 | 585 | 585 | 630 | 630 |
| Standover | 707 | 707 | 751 | 751 | 774 | 773 |
| Head tube length | 310 | 310 | 352 | 352 | 400 | 400 |
| Head tube angle | 73 | 73 | 73 | 73 | 73 | 73 |
| Seat tube angle | 73 | 73 | 73 | 73 | 73 | 73 |
| Chainstay length | 405 | 450 | 405 | 450 | 405 | 450 |
| Front center | 581 | 581 | 625 | 625 | 675 | 675 |
| Wheelbase | 982 | 1022 | 1026 | 1062 | 1076 | 1117 |
| BB drop | 45 | 80 | 45 | 80 | 45 | 80 |
| BB height | 290 | 291 | 290 | 291 | 290 | 291 |
| Fork offset / Rake | 30 | 30 | 30 | 30 | 30 | 30 |
| Fork A-C | 300 | 300 | 300 | 300 | 300 | 300 |
| Top Tube (Effective) | 536 | 536 | 580 | 580 | 630 | 630 |
The Chull is available for pre-order, and RatKing requires a $1,300 deposit to secure your spot in the queue. The total price for a frameset (frame, fork, platform, and kickstand) is $3,200, and a complete build option is available for $5,800. Every order includes a custom paint job with black or white logos under the clearcoat. The cargo platform can be color-matched, Rainbow Chrome, or Black at the included price. Framesets are expected to ship by spring 2027, with complete builds shortly after.
Visit RatKingFrames.com to reserve yours.
