Next up in Stinner’s expansion of their US-made stock bike line are the new Refugio and Carrizo Podium, two titanium gravel bikes available in stock geometry and handmade in California. Learn more here…

Last fall, Stinner Frameworks in California launched its Stinner Select program, through which they’re offering in-stock versions of their Santa Barbara-built bikes without the typical wait times associated with US-made bikes. The program debuted with the Carrizo all-road bike and Refugio gravel bike, both in steel, and we’ve been curious to see whether if the program would expand to include titanium options. The wait is over, and the new Stinner Podium series follows the same format as the Select program but features frames made from straight-gauge titanium to provide an ideal balance of strength, weight, and durability. The series begins with the Refugio and Carrizo Podium. Find details on them below.

Frameworks Refugio Podium

The Refugio Podium is inspired by its steel and custom-made counterparts and named after the rugged, winding terrain of Refugio Road in Santa Barbara, California. It’s built up using straight-gauge titanium tubing, UDH rear dropouts, flat mount brakes, and dishes up 700 x 50mm tire clearance. Every Refugio Podium is fabricated, painted, and assembled in Santa Barbara and comes with the choice of a bead blasted frame with raw titanium with polished Ti graphics or black decals.

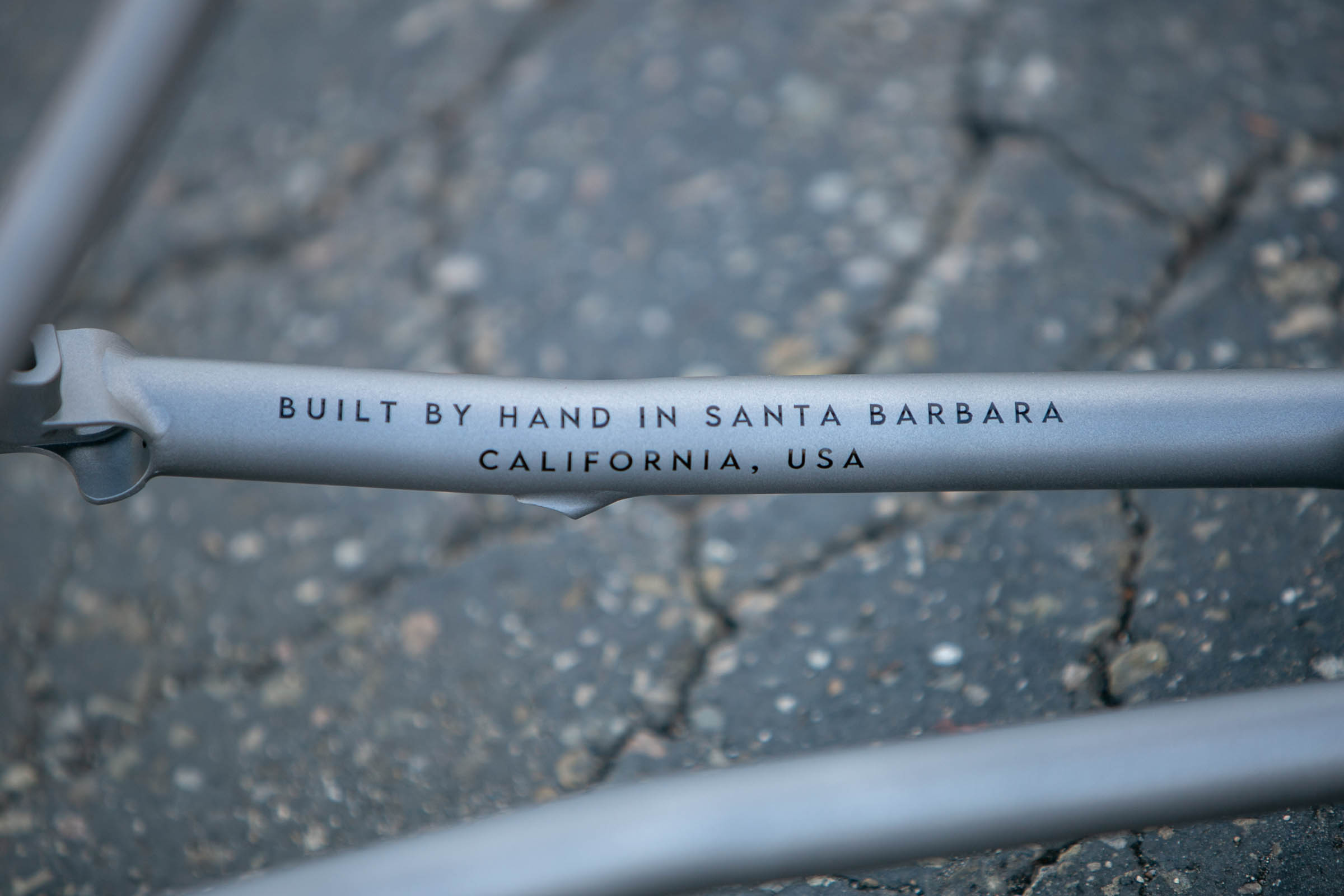

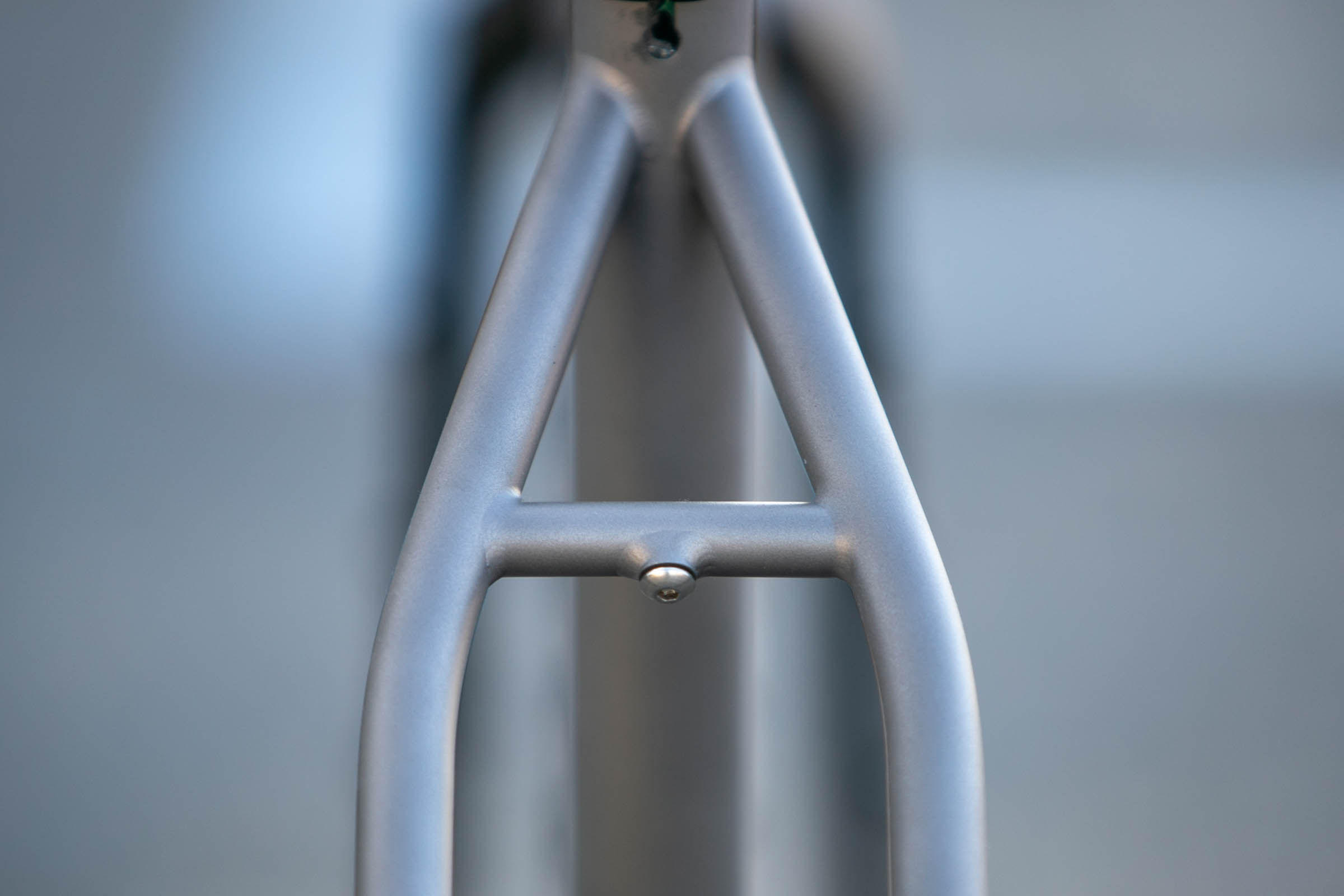

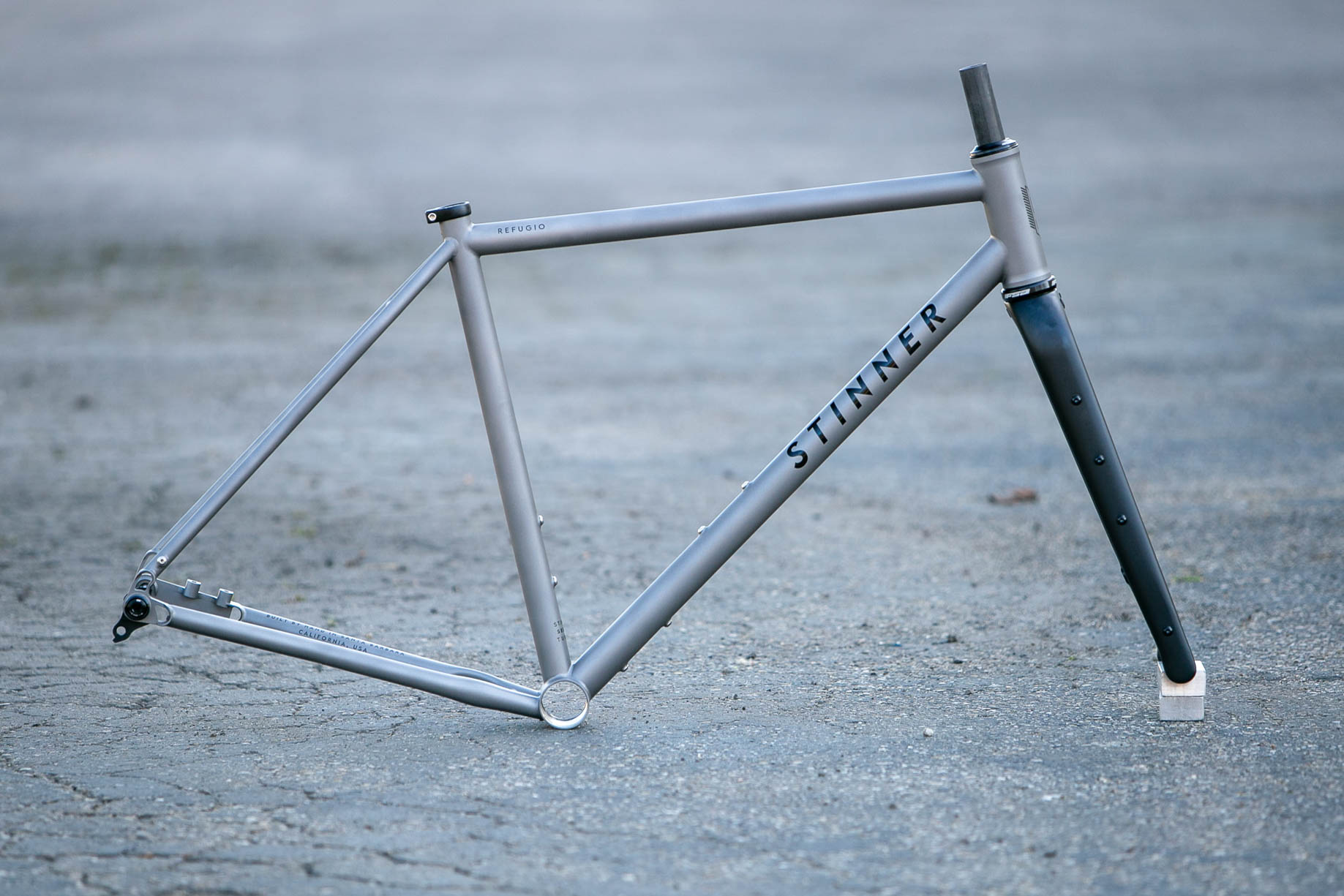

Stinner Refugio Podium
  • Stinner Refugio Podium
  • Stinner Refugio Podium

Refugio Podium Geometry

Geometry 50cm 52cm 54cm 56cm 58cm 60cm
Frame Stack 545 560 575 595 610 640
Frame Reach 387 395 400 405 410 418
Top Tube Length, Horizontal 540 554 569 582 594 614
Head Tube Length 97 112 129 149 167 197
Head Tube Angle 71.25° 71.5° 71.75° 72° 72.25° 72.5°
BB Height* 282 282 284 284 287 287
BB Drop 82 82 80 80 77 77
Seat Tube Angle 74.5° 74.25° 73.75° 73.5° 73.25° 73°
Front Center 603 613 621 630 638 652
Chainstay Length 438 438 438 438 438 438
Wheelbase 1027 1038 1047 1056 1064 1079
Standover Height* 765 782 800 820 840 864
Seat Tube Length (center – top) 470 490 510 530 550 570

*Based on 50mm tires (728mm diameter)

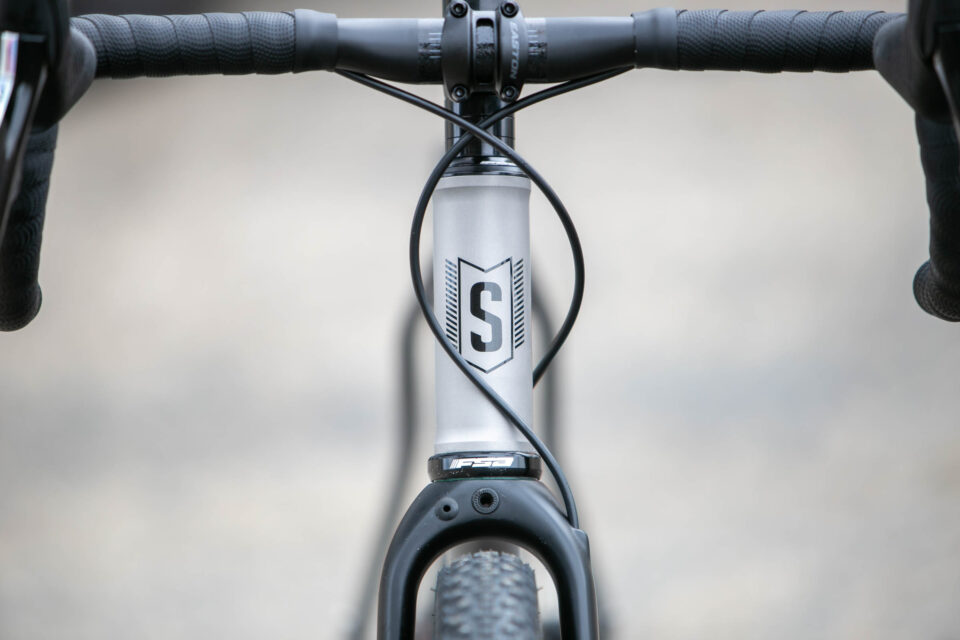

Stinner Refugio Podium
  • Stinner Refugio Podium
  • Stinner Refugio Podium
  • Stinner Refugio Podium

The Refugio Podium is available in six stock sizes, has fender mounts and three-pack fork mounts, and the fork has a front light mount with internal dynamo routing. Framesets (frame + fork) cost $2,895 USD, and complete builds start at $5,595. Learn more at StinnerFrameworks.com.

Frameworks Carrizo Podium

The Carrizo Podium is a titanium all-road bike designed to be fast, responsible, and ready for long rides. It has clearance for 40mm tires, the same mounts as the Refugio, and room for three water bottles on all sizes. Frame specs include 12mm thru-axles, UDH rear dropouts, flat mount brakes, and a 27.2mm seatpost. It has a T47 68mm bottom bracket, internal brake routing, and the frame and fork an clear 35mm tires with fenders installed.

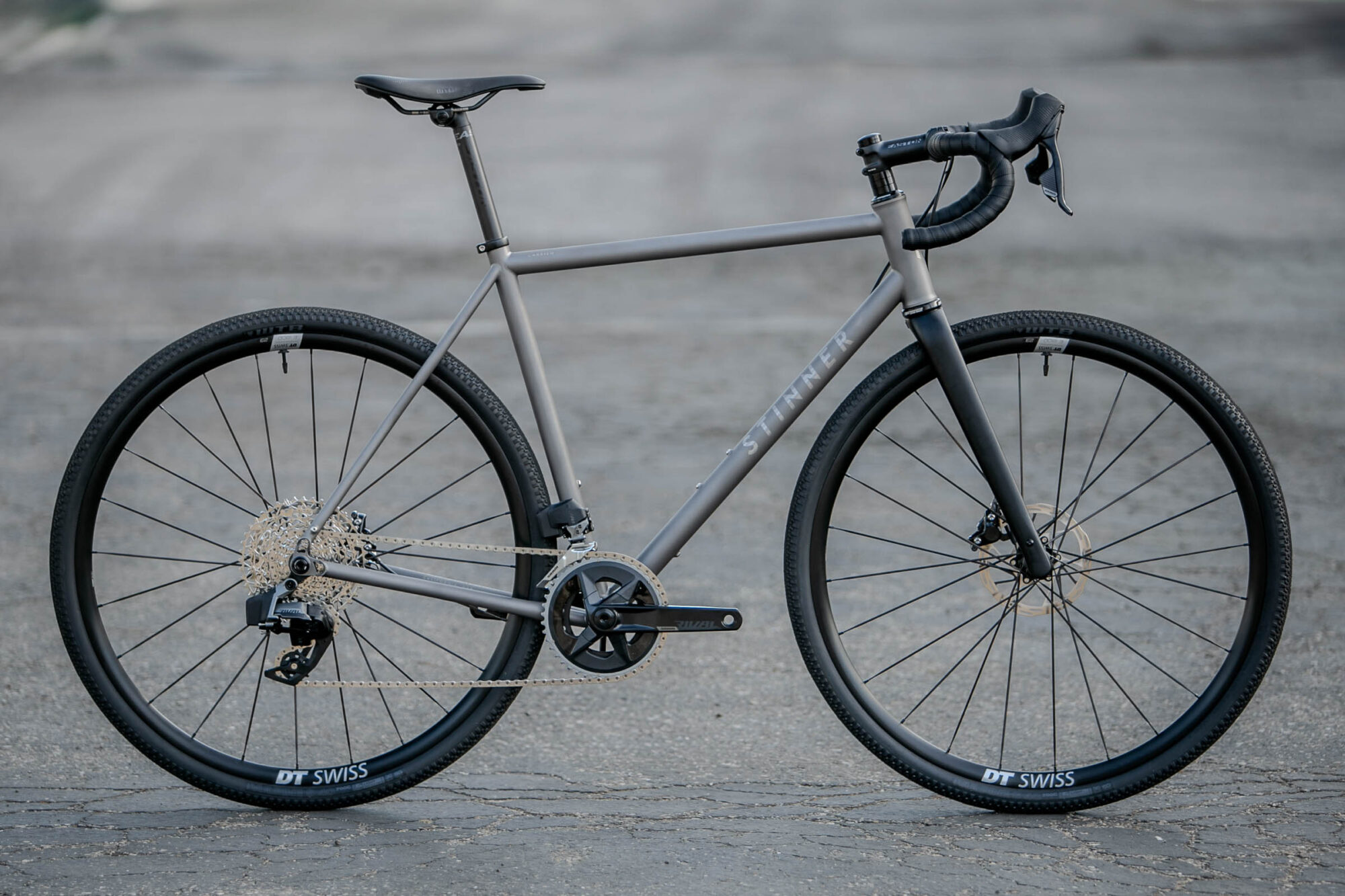

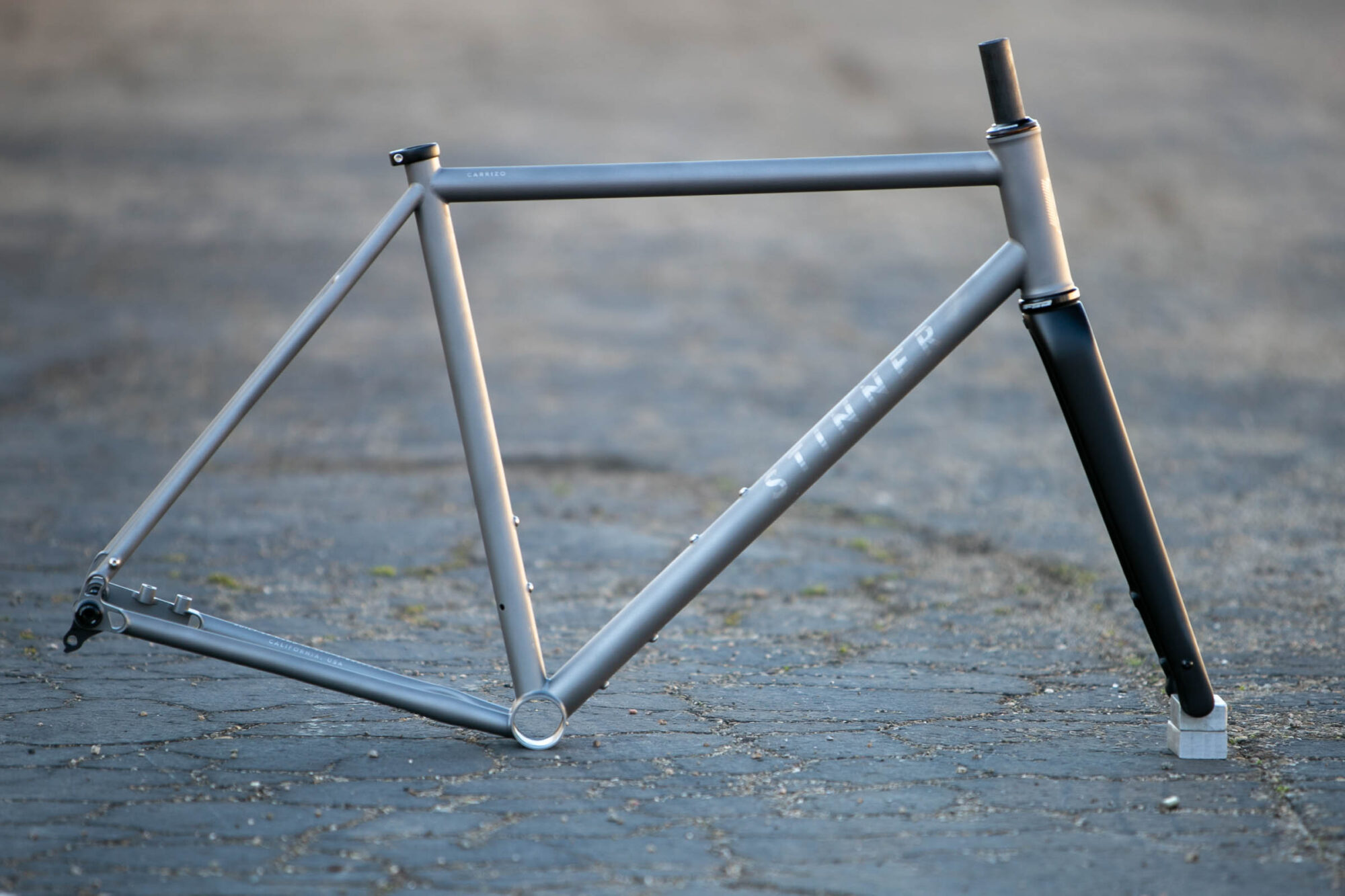

Stinner Carrizo Podium
  • Stinner Carrizo Podium
  • Stinner Carrizo Podium

Carrizo Podium Geometry

Geometry 50cm 52cm 54cm 56cm 58cm 60cm
Frame Stack 526 539 556 577 603 624
Frame Reach 377 382 388 392 399 407
Top Tube Length, Horizontal 525 538 554 563 581 598
Head Tube Length 98 110 128 148 175 195
Head Tube Angle 71° 71.5° 72° 72.5° 72.5° 73°
BB Height* 277 277 279 279 279 279
BB Drop 77 77 75 75 75 75
Seat Tube Angle 74.5° 74° 73.5° 73.5° 73.25° 73°
Trail* 72 69 66 62 62 59
Front Center 586 591 598 604 619 628
Chainstay Length 426 426 426 426 426 426
Wheelbase 1000 1005 1013 1019 1034 1043
Standover Height* 755 771 791 811 833 853
Seat Tube Length (center – top) 480 500 520 540 560 580

*Based on 40mm tires (708mm diameter)

Stinner Carrizo Podium
  • Stinner Carrizo Podium
  • Stinner Carrizo Podium

The Carrizo Podium is also available in six stock sizes, two finish options, and is handmade in Santa Barbara. Carrizo Podium framesets cost $2,895 USD, and complete builds start at $5,695. See more at StinnerFrameworks.com.
