Teased at Sea Otter, the new Stinner Refugio Podium 32 is a US-made titanium 32-inch gravel bike that’s available as a limited-edition pre-order. Only 50 frames are being produced. Learn more about the Refugio Podium 32 here…

Santa Barbara, California’s Stinner Frameworks was focusing on the launch of their new Romero steel full-suspension trail bike at Sea Otter last month, but they also had a prototype 32-inch gravel bike on display that was equally hard to miss. At the time, they weren’t ready to spill the beans, but we’re happy to share today’s news of the new Stinner Refugio Podium 32.

Stinner refugio podium 32
  • Stinner refugio podium 32
  • Stinner refugio podium 32

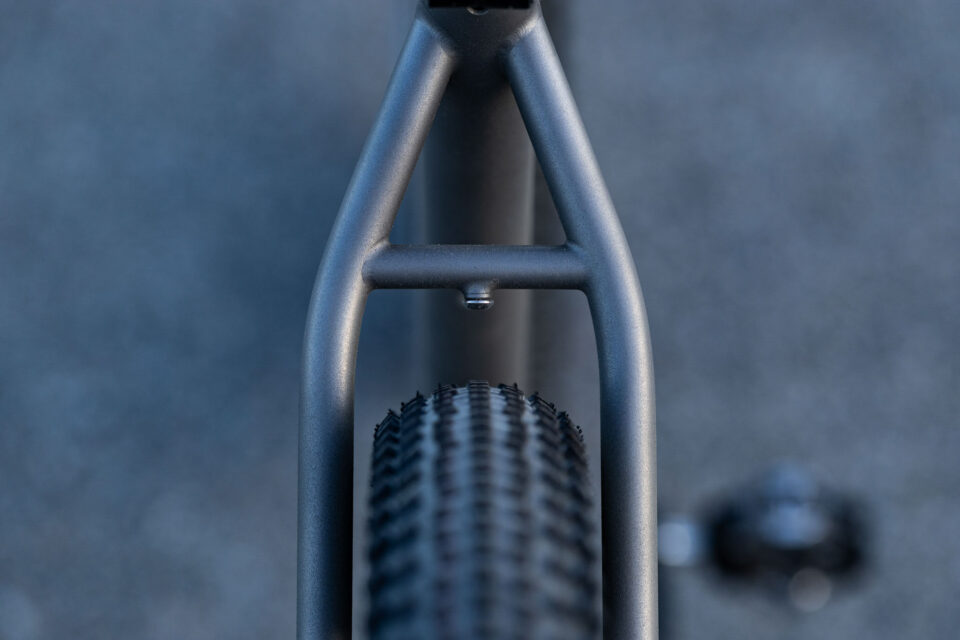

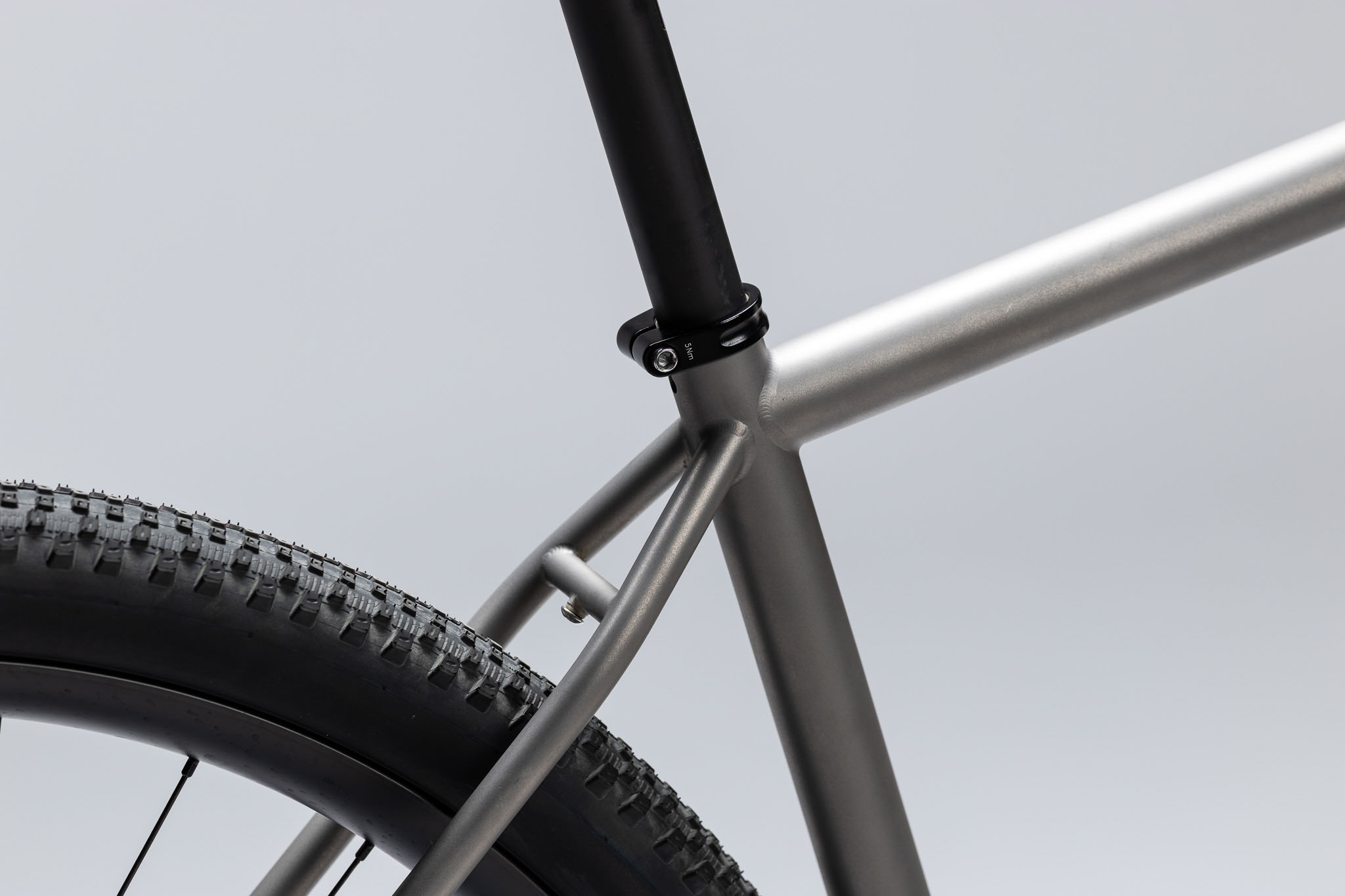

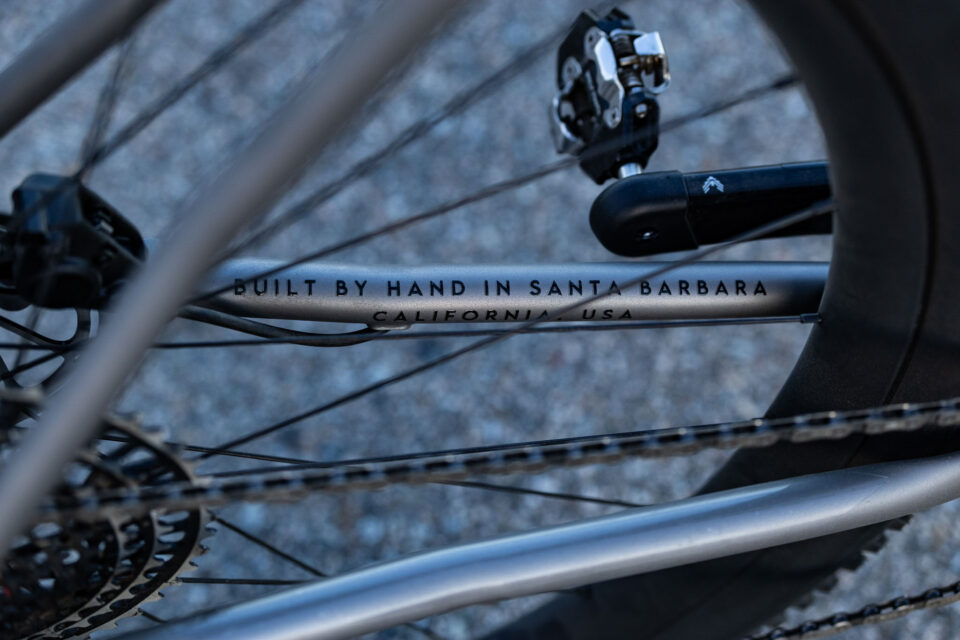

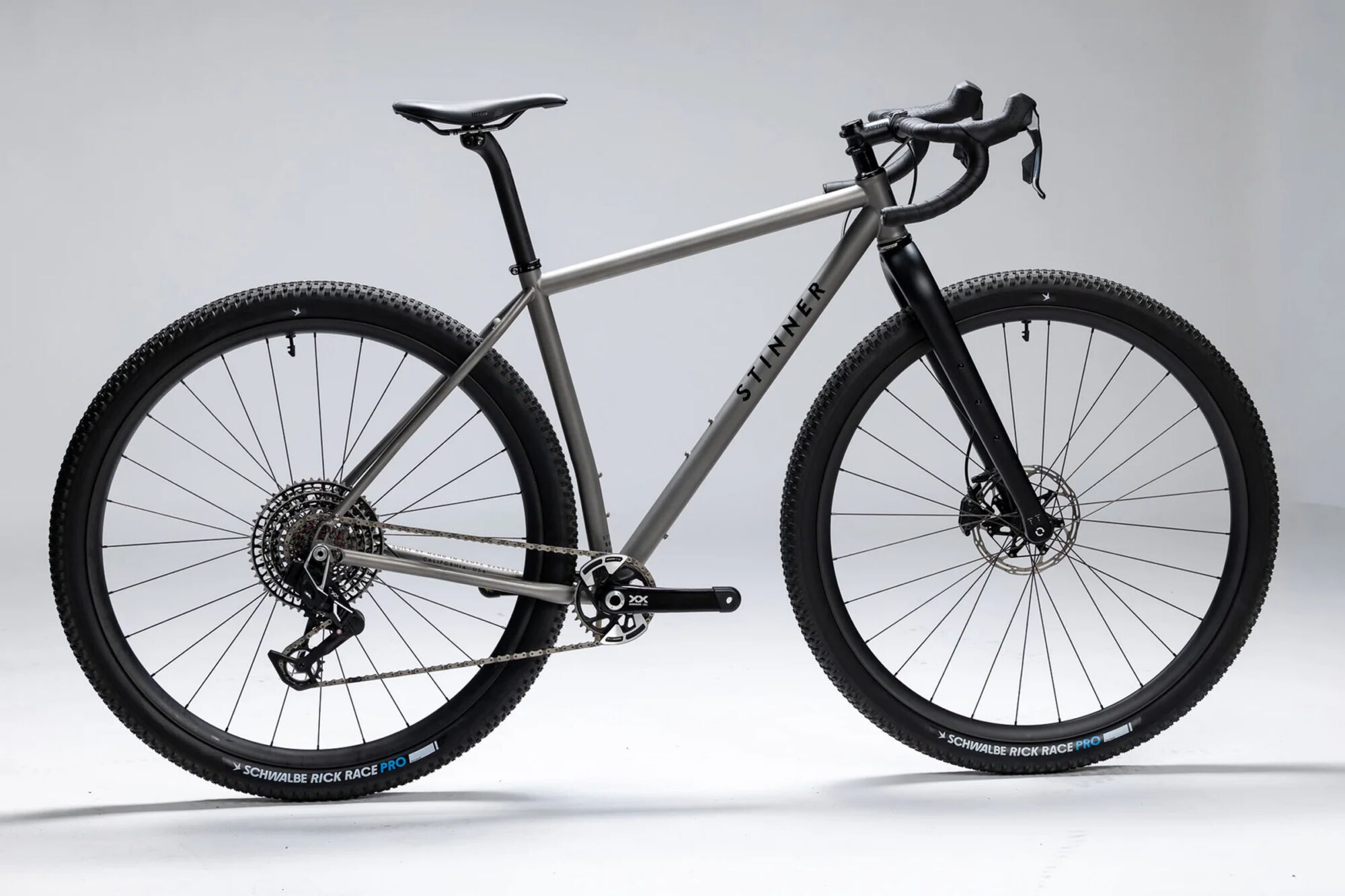

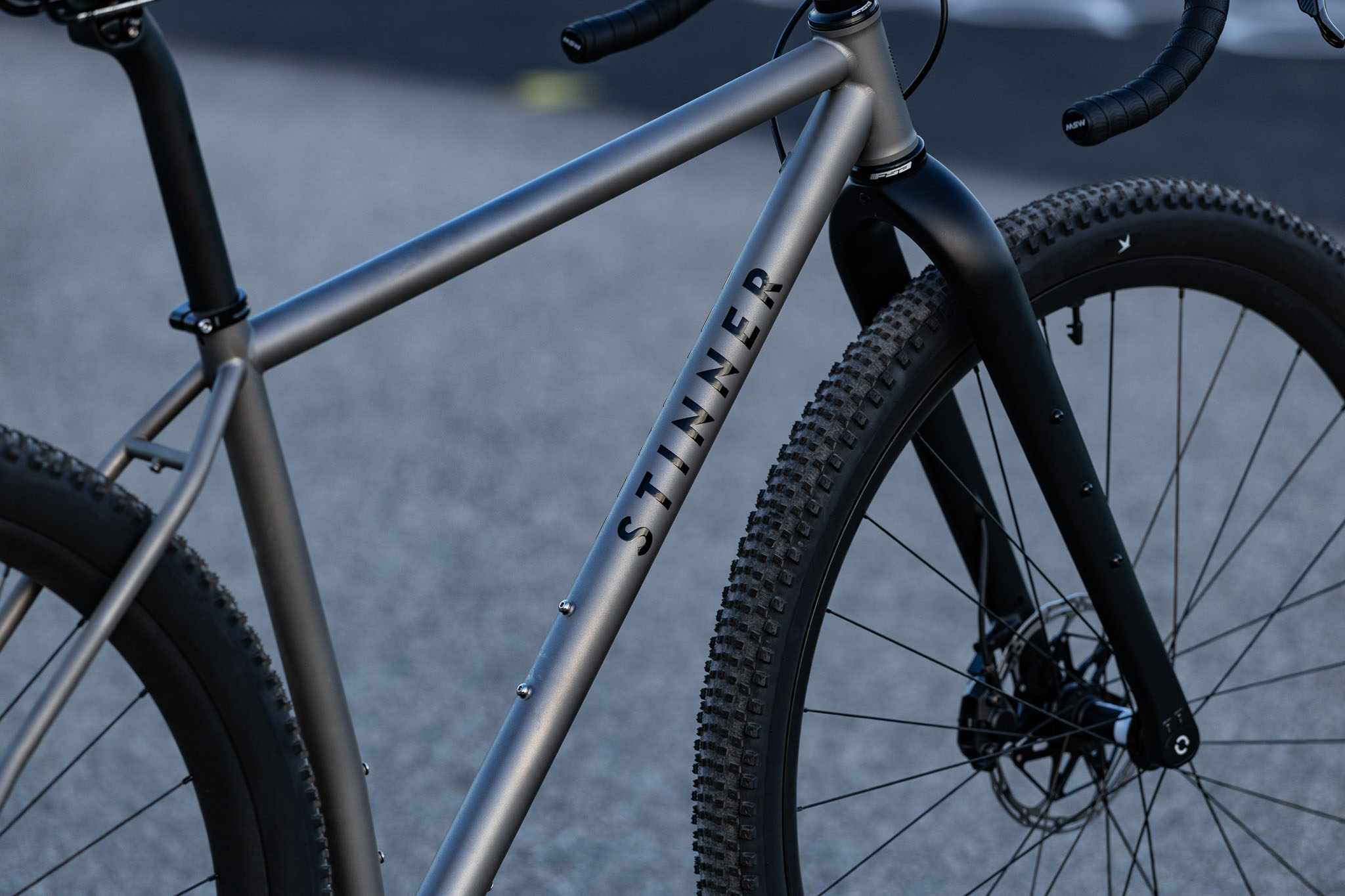

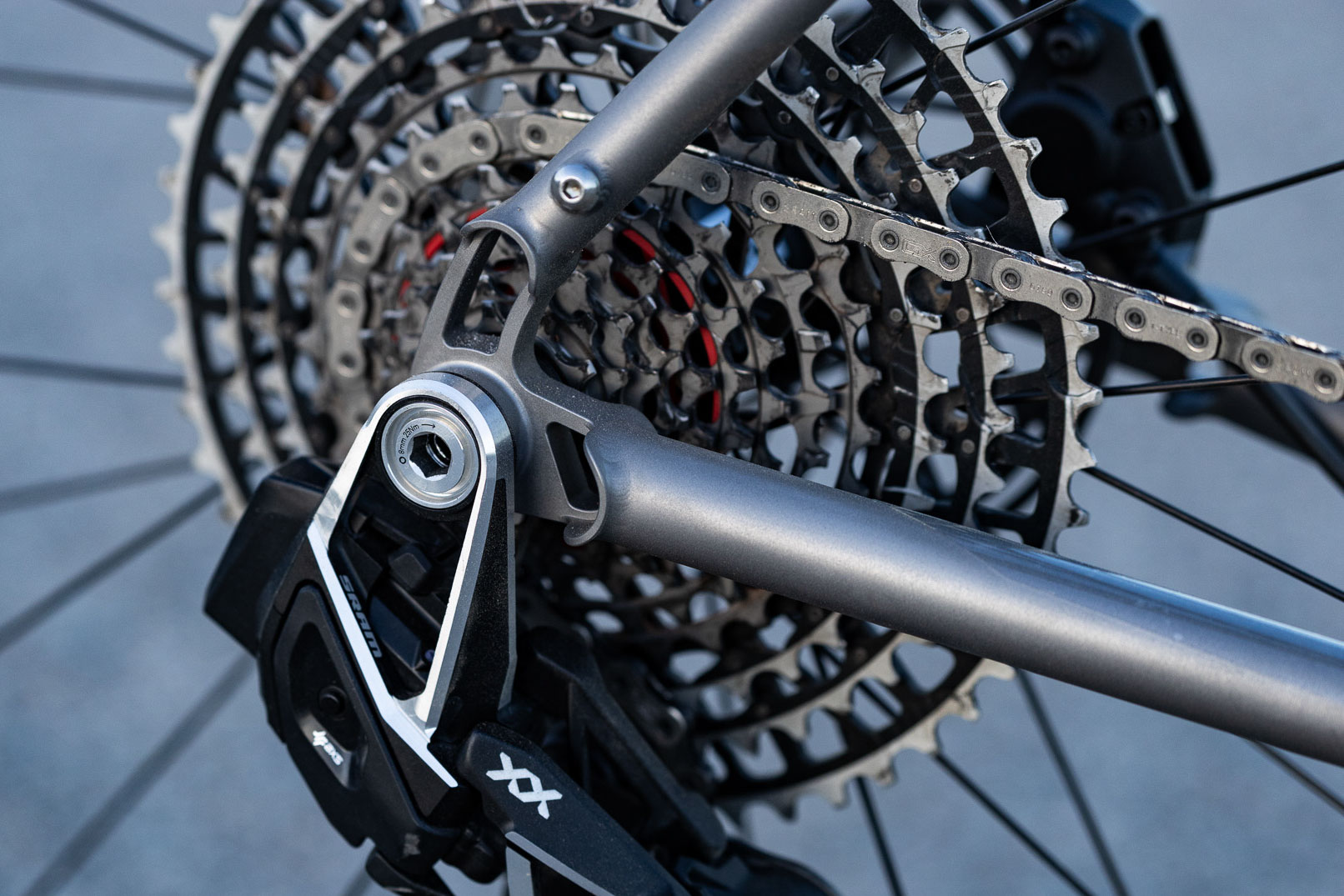

As the name implies, the Refugio Podium 32 is a totally revised 32-inch version of their Refugio gravel bike platform. It’s built up in Santa Barbara around a titanium straight gauge tubeset, CNC-machined Stinner UDH dropouts, a T47 73mm bottom bracket, and clearance for 32 x 2.4″ tires. It’s compatible only with wireless drivetrains, features internal brake-hose routing, and comes stock with two standard bottle mounts and a third under the downtube.

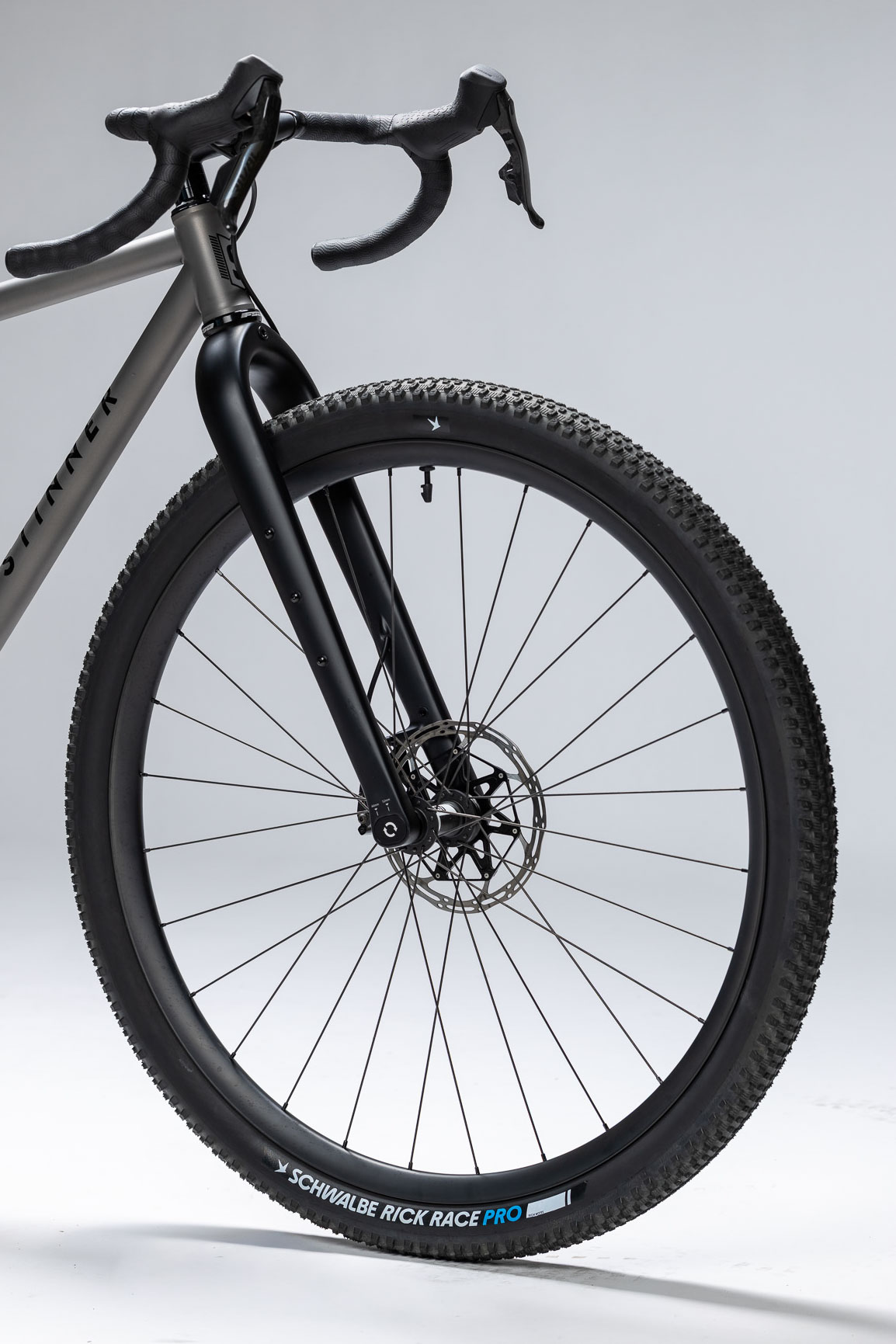

The Refugio Podium 32 is offered in five stock frame sizes, from medium to XXL. The head tube angles range from 68° to 71.5°, with the seat tube angle and chainstays stable at 74° and 455mm, respectively. Custom geometry is available at no extra cost. It’s designed around a 490mm axle-to-crown, and Stinner is including a compatible full-carbon fork with three-pack mounts, fender mounts, post-mount brakes, and 110 x 15mm hub spacing with every frame or complete build purchase.

  • Stinner refugio podium 32
  • Stinner refugio podium 32
Stinner refugio podium 32

Stinner Refugio Podium 32 Geometry

Size MD M/L LG XL XXL
Stack (mm) 626 630 635 643 647
Reach (mm) 400 410 430 450 470
Head Tube Length (mm) 85 85 85 90 90
Head Tube Angle 68° 68.5° 69.5° 70.5° 71.5°
Trail (mm) 107 103 96 88 80
BB Drop (mm) 105 105 105 105 105
BB Height (mm) 299 299 299 299 299
Seat Tube Angle (actual) 74° 74° 74° 74° 74°
Chainstay (mm) 455 455 455 455 455
Wheelbase (mm) 1109 1115 1126 1137 1149
Standover (mm) 833 840 852 859 868
Seat Tube Length (mm) 480 490 510 520 530
Fork Length (mm) 490 490 490 490 490
Rake (mm) 44/52 44/52 44/52 44/52 44/52
F/R Ratio 2.41 2.43 2.45 2.47 2.49
  • Stinner refugio podium 32
  • Stinner refugio podium 32
  • Stinner refugio podium 32
  • Stinner refugio podium 32
  • Stinner refugio podium 32

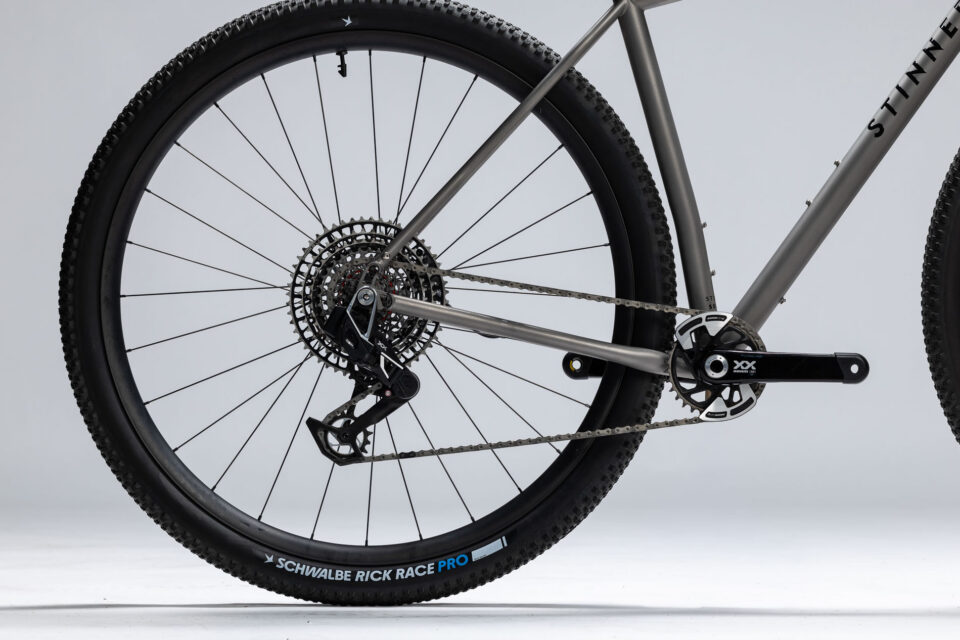

The Refugio 32 is a limited-edition batch of just 50 frames, with delivery scheduled for August. It’s available as a frameset, frame and wheels, or a complete build. The complete build they have specced on their website is built up around a SRAM GX/Rival AXS Transmission groupset, Maxxis Aspen 32 x 2.4″ tires, and a Zipp Service Course stem and seatpost.

The build also features Stinner’s new in-house component brand, Stoic, which soft-launched at Sea Otter, including Stoic Carbon rims and the Stoic Gravel HB handlebar. The frameset will set you back $2,999 USD, the frameset with wheels costs $4,498, and the complete build option is priced at $7,295.

Head to StinnerFrameworks.com to learn more.
