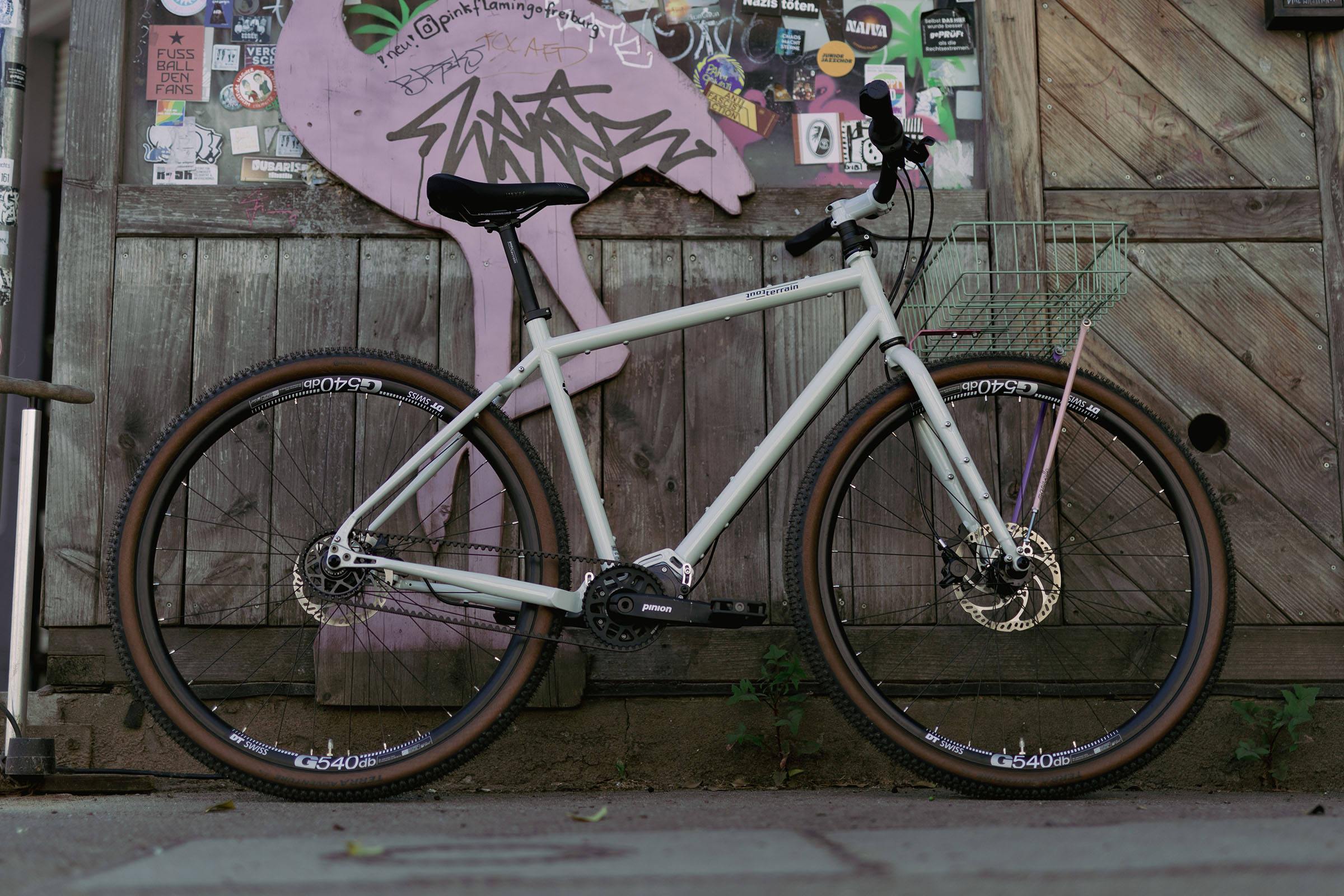

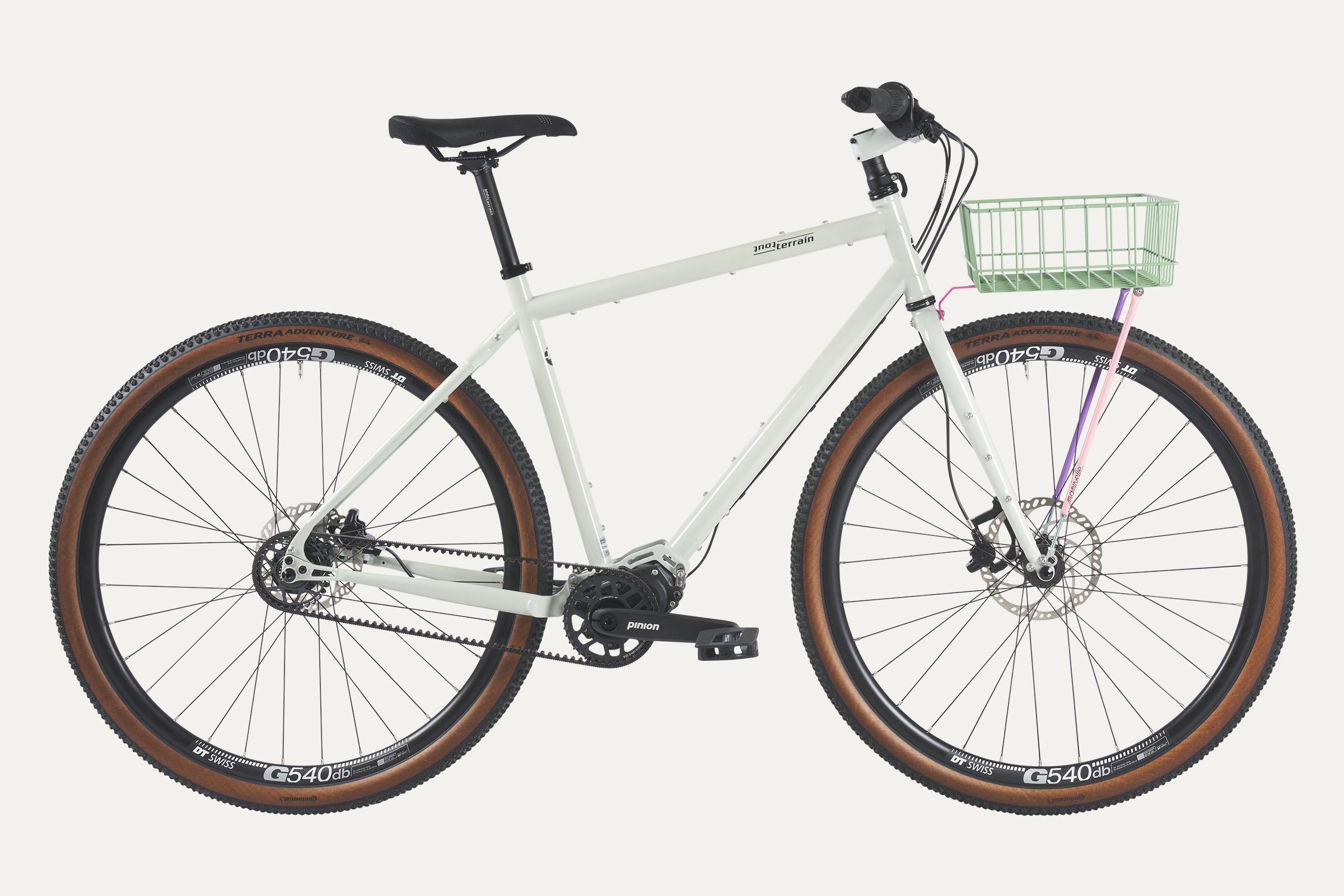

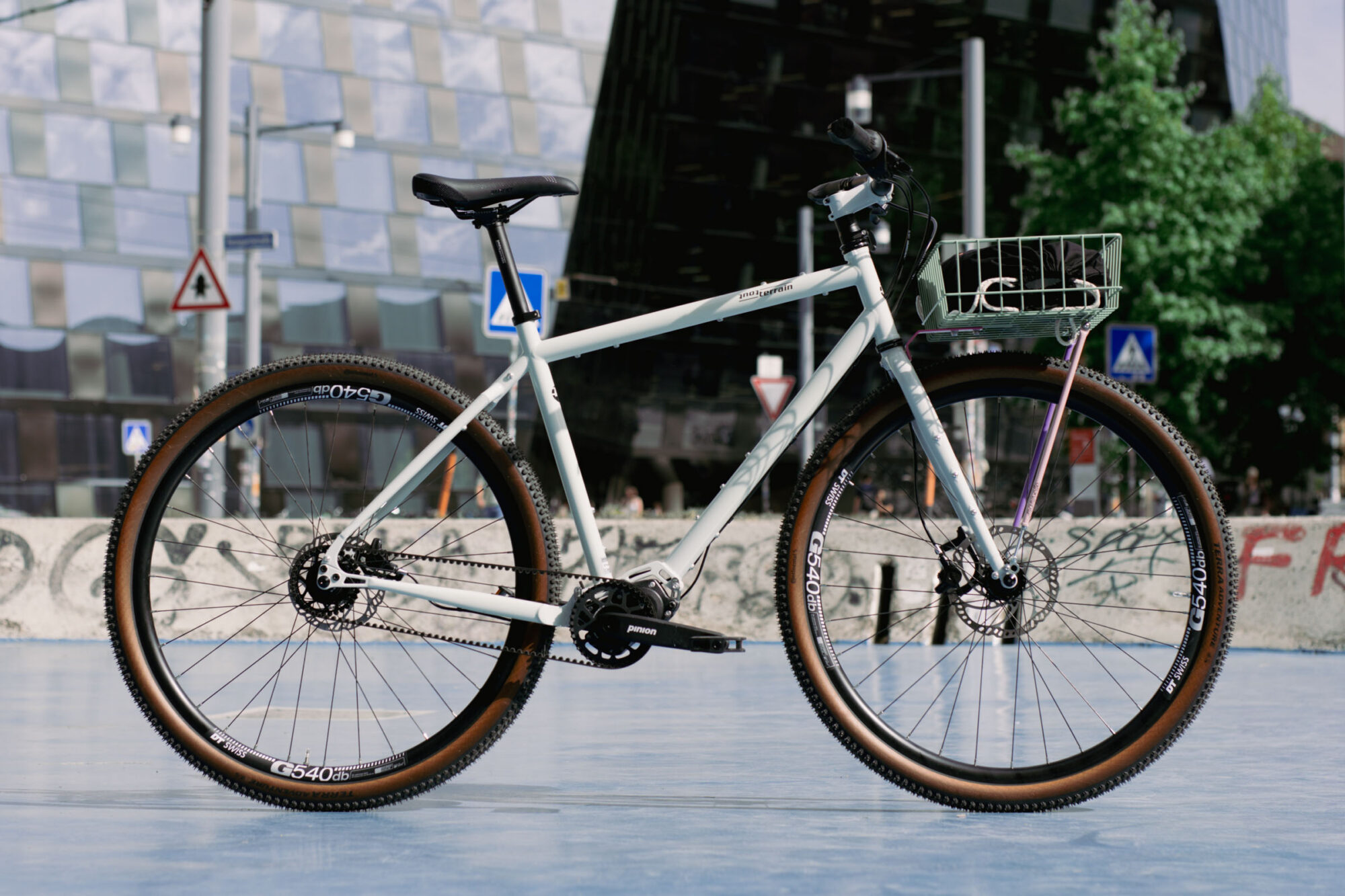

The new Tout Terrain Chiyoda III Select 7.1 comes equipped with a Cycles Manivelle basket, a Pinion gearbox, and 50mm tires. It’s equally suited for urban commutes and gravel adventures alike. Take a closer look here…

Tout Terrain describes the newly released Chiyoda III Select 7.1 as an “urban utility vehicle” for riders seeking a true do-it-all daily ride. The bike is part of Tout Terrain’s Urban range, but it also looks to have potential for light touring and off-pavement riding.

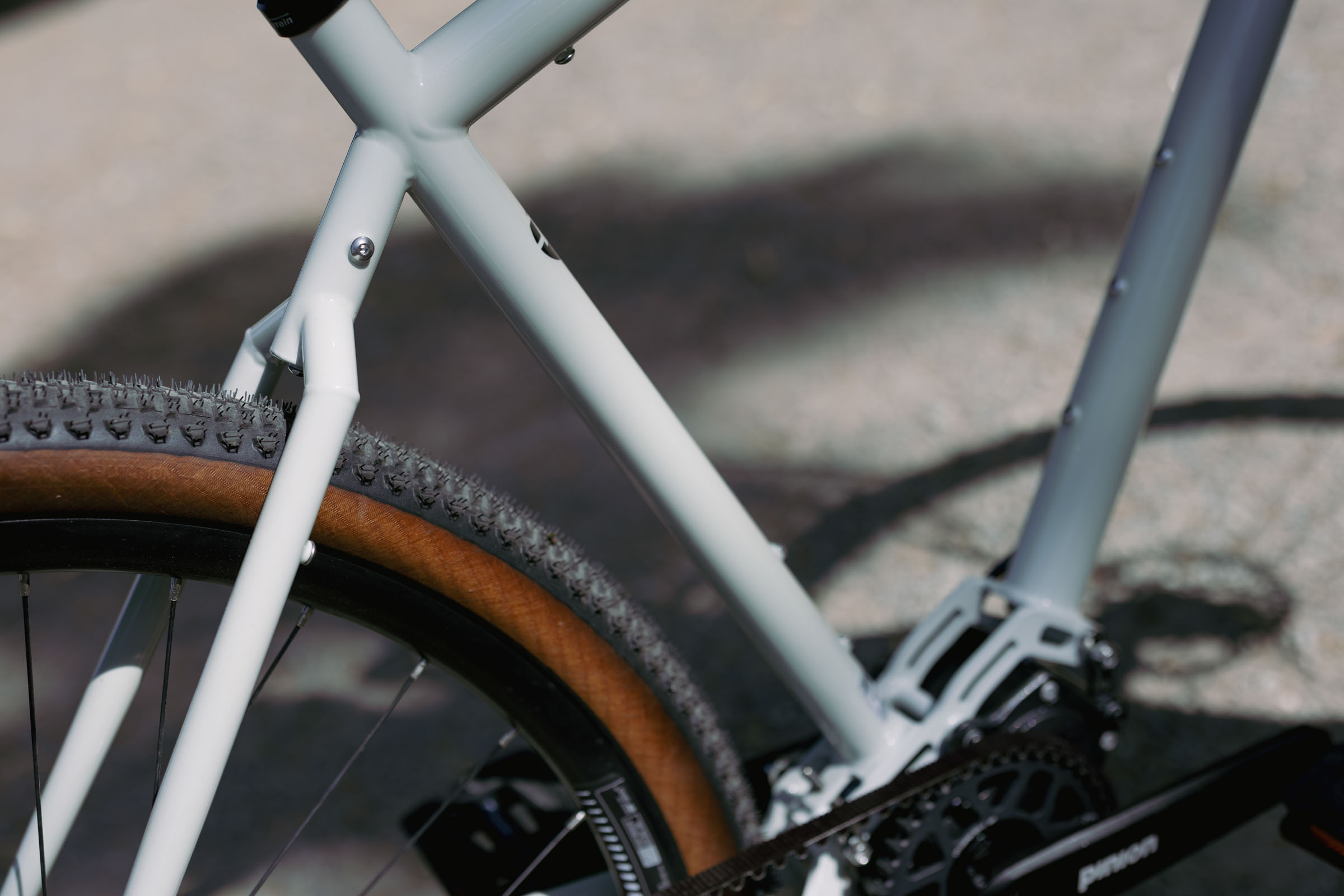

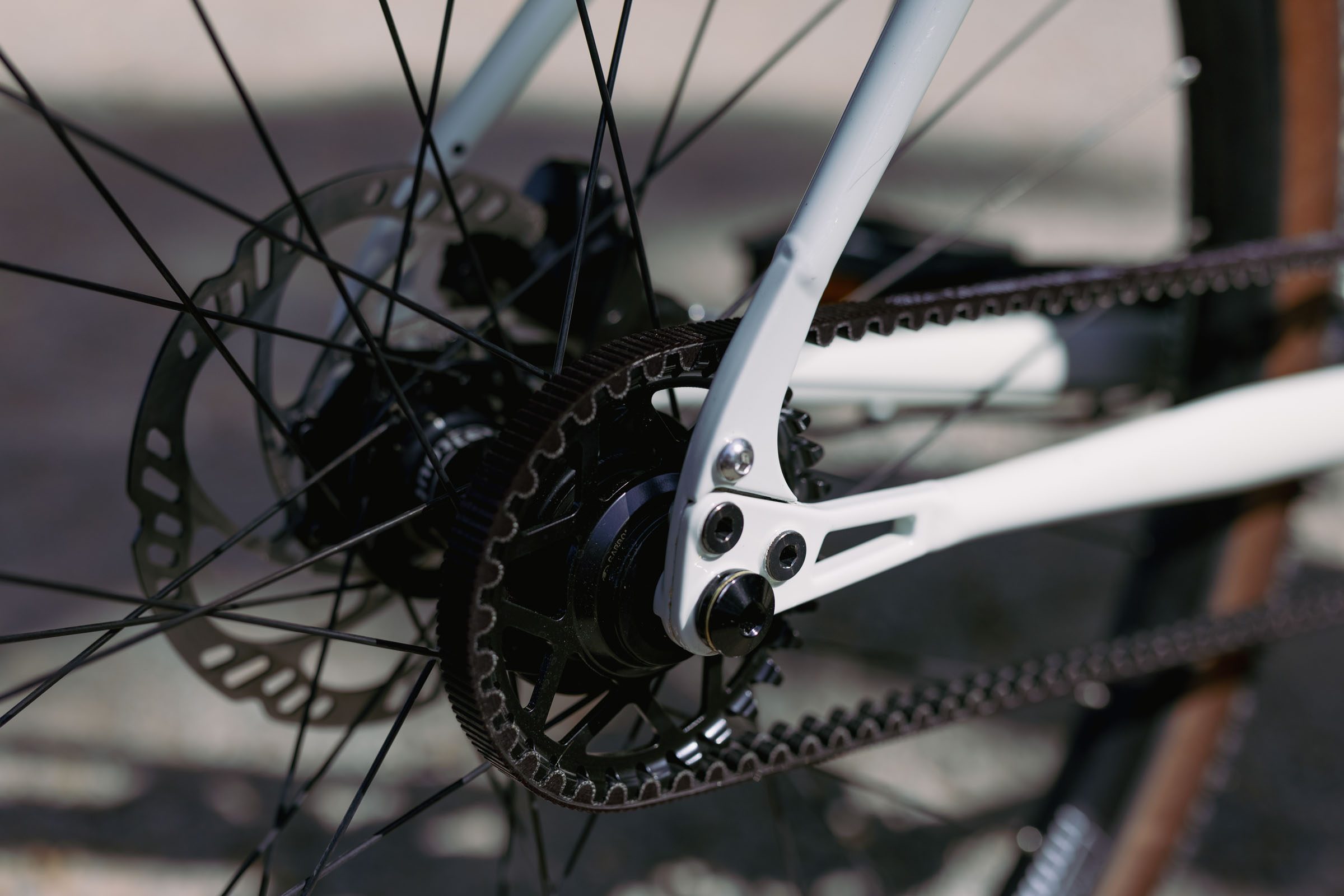

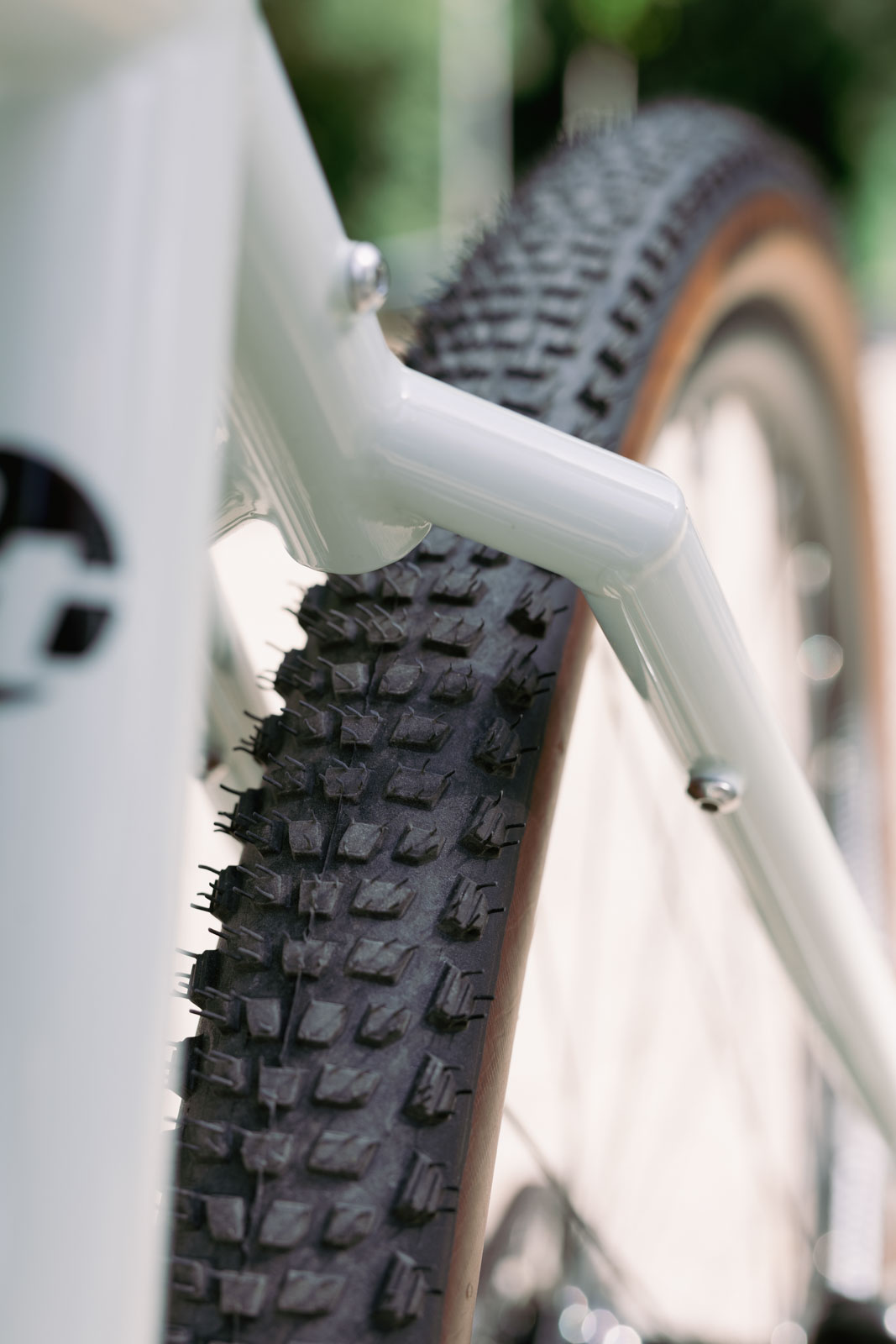

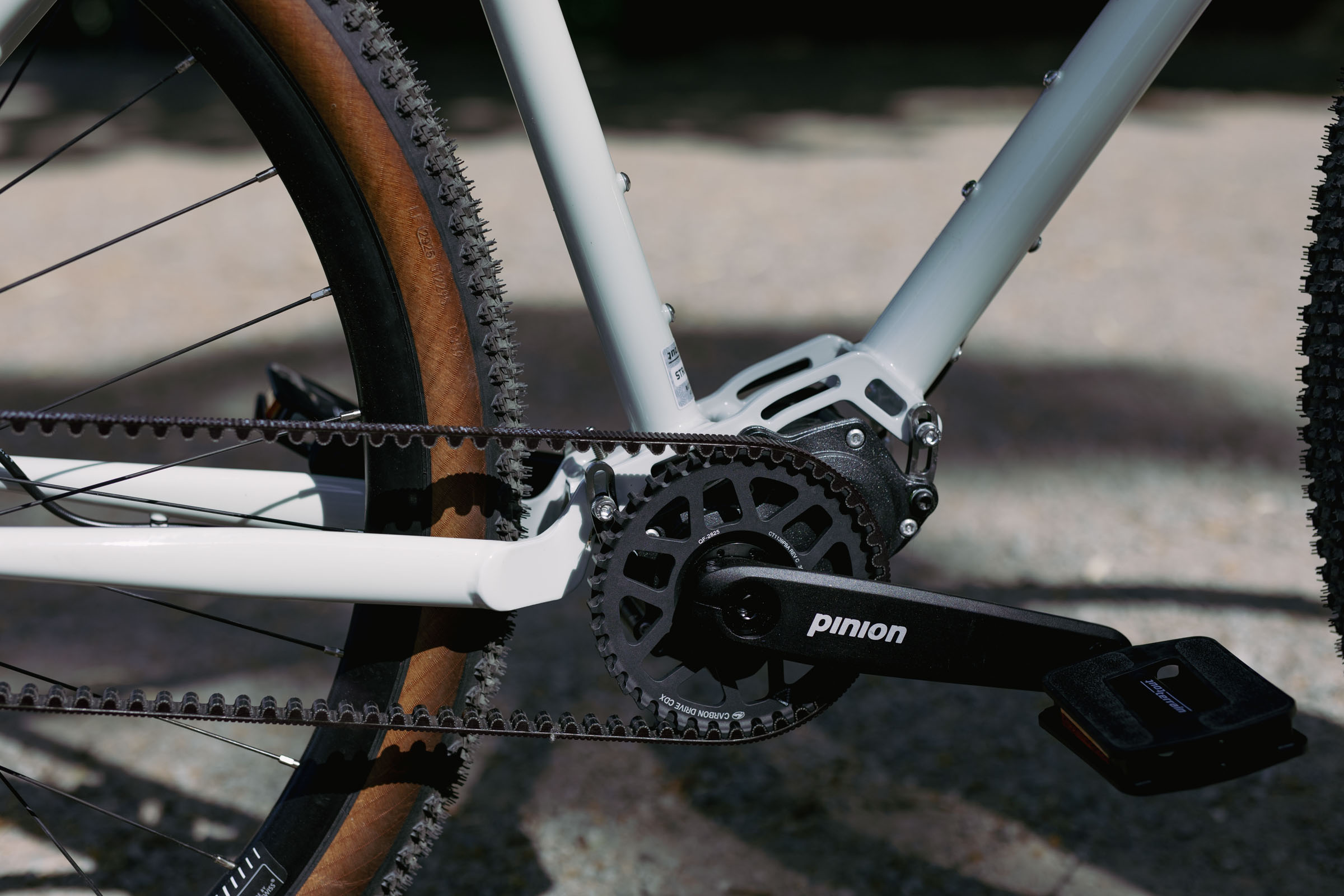

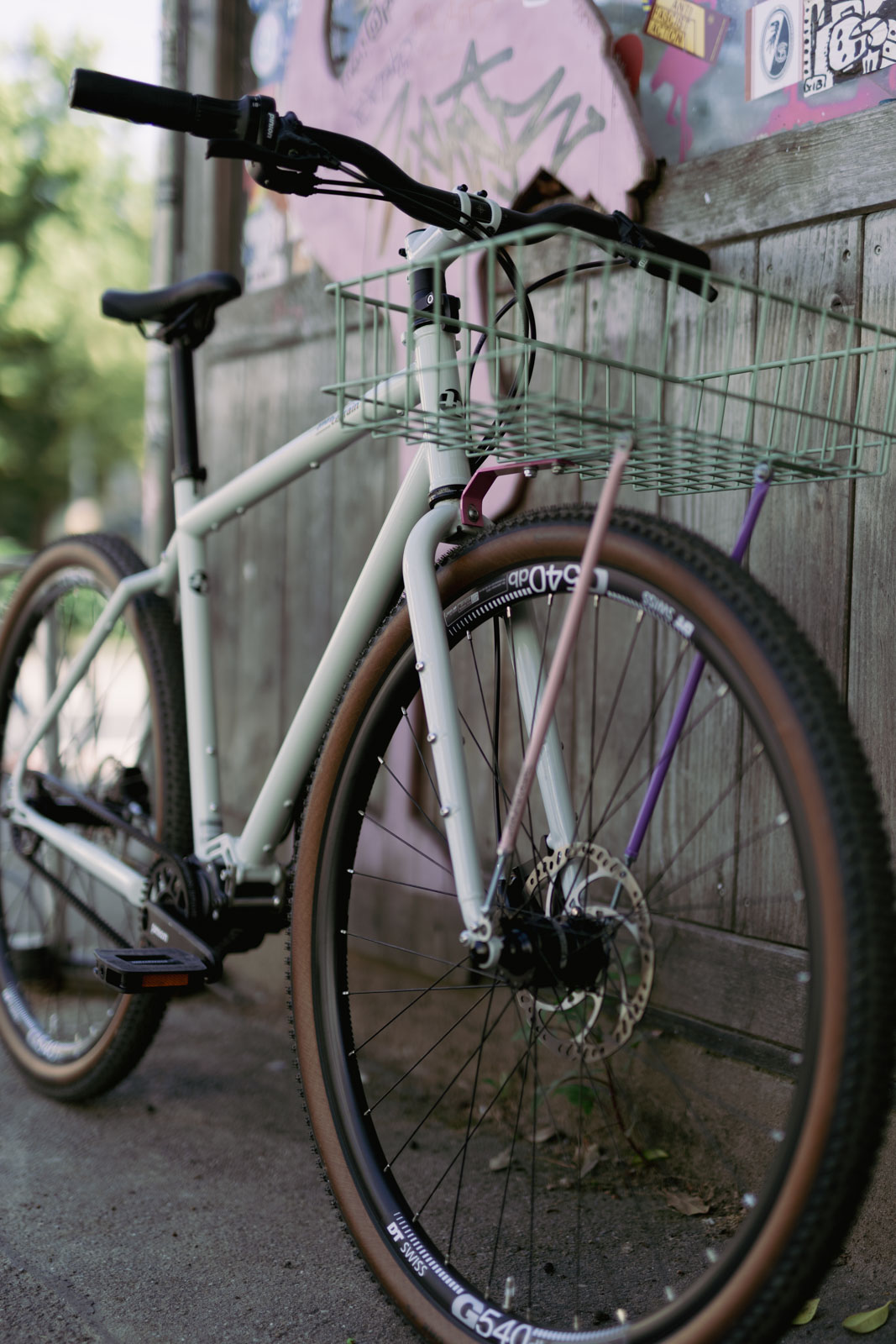

It features a steel frame, a Tout Terrain Expedition II Fork, and a Pinion C1.9 gearbox with a Gates Carbon Drive belt. The frame clears 700 x 50mm tires and comes equipped with a Cycles Manivelle N°55 Edition basket that adds a dash of color to the bike’s light grey glossy powder-coated finish.

Tout Terrain Chiyoda III
  • Tout Terrain Chiyoda III
  • Tout Terrain Chiyoda III
  • Tout Terrain Chiyoda III

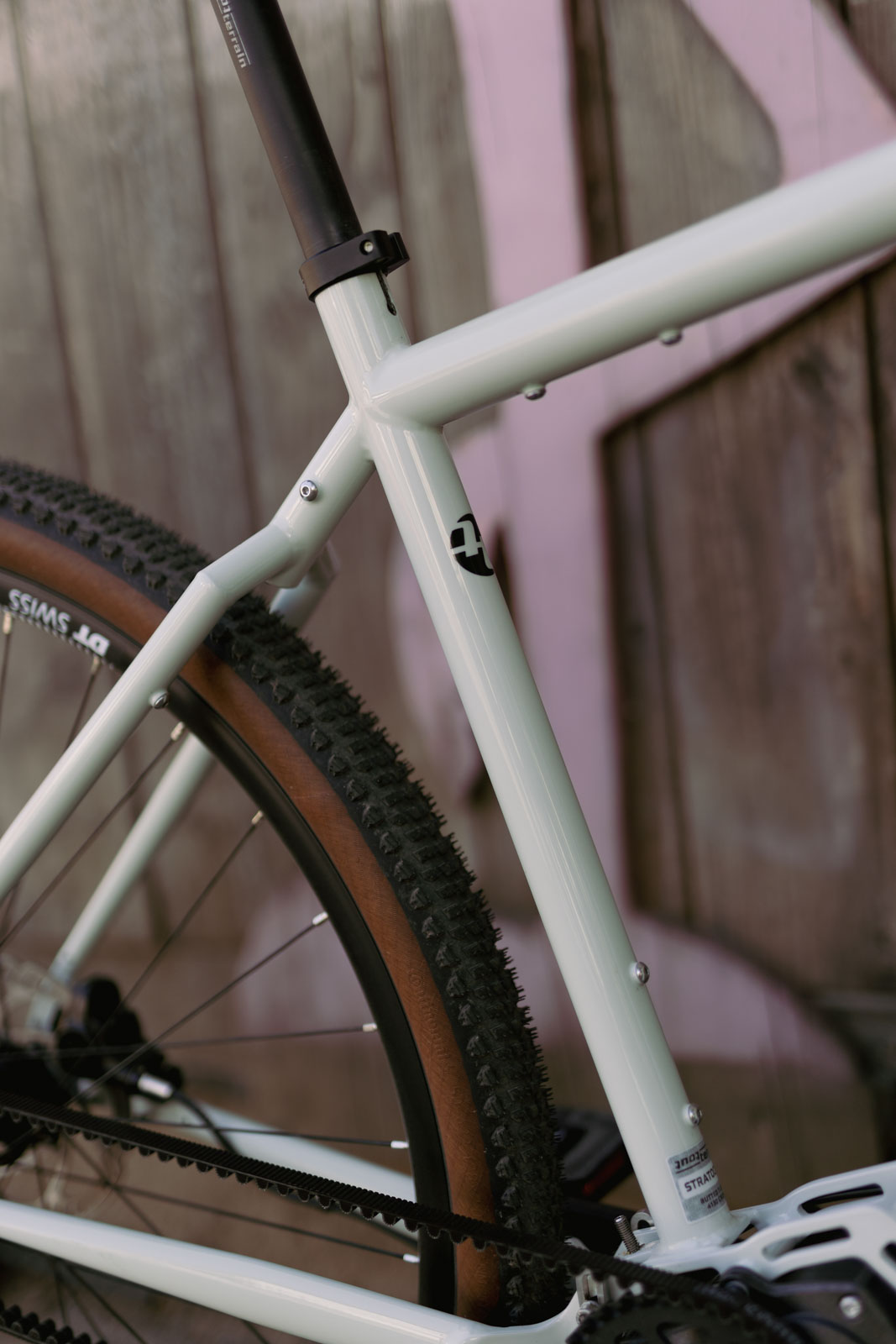

Like most of Tout Terrain’s bikes, the Chiyoda III Select 7.1 is covered in mounting points for cargo and accessories, including three-pack mounts on the fork legs, nine mounts inside the main triangle, top tube bosses, rack mounts, and downtube mounts.

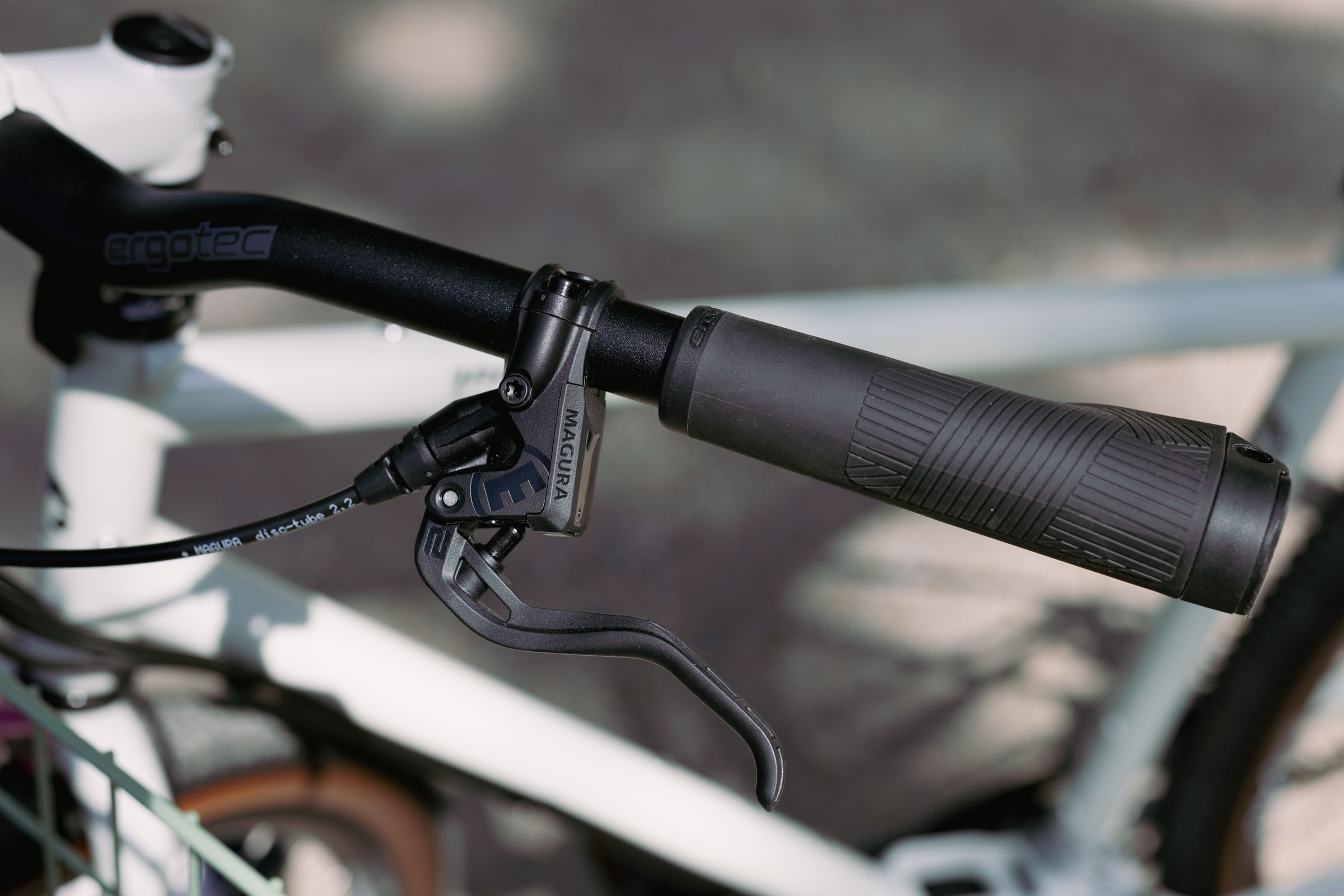

The build features a Pinion twist-grip shifter, Magura MT Sport hydraulic disc brakes, and a Shutter Precision PL-7 dynamo hub. It rolls on Tout Terrain ADVTR AL24 wheels (DT Swiss G540 are pictured) with Continental Terra Adventure 700 x 50mm tires.

Tout Terrain Chiyoda III
  • Tout Terrain Chiyoda III
  • Tout Terrain Chiyoda III

The Chiyoda III is available in four sizes, with a 70.5-71.5° headtube angle (depending on the size), 65mm bottom bracket drop, 455mm chainstays, and a wheelbase that ranges from 1,053mm to 1,093mm. Dig into the complete geometry chart below.

Tout Terrain Chiyoda III Select 7.1 Geometry

Size SM MD LG XL
Seat Tube Length (mm) 470 510 550 590
Seat Tube Length (C-T) (mm) 408 449 489 530
Top Tube Length (mm) 545 565 585 605
Head Tube Length (mm) 135 155 185 205
Chainstay Length (mm) 455 455 455 455
Wheelbase (mm) 1053 1063 1084 1093
Bottom Bracket Drop (mm) 65 65 65 65
Head Tube Angle (°) 70.5° 71° 71° 71.5°
Seat Tube Angle (°) 73.5° 73° 73° 72.5°
Stack (mm) 564 585 613 634
Reach (mm) 378 386 398 405
Stand Over Clearance (mm) 769 798 831 860
Fork Mounting Height (mm) 400 400 400 400
Fork Offset (mm) 45 45 45 45
  • Tout Terrain Chiyoda III
  • Tout Terrain Chiyoda III
  • Tout Terrain Chiyoda III

Customers in the EU can order their Chiyoda III now through Tout-Terrain.de or participating dealers for €3,399. For customers in the US, the bike is available for pre-order for $3,899 USD via Tout-Terrain.bike.
