Given the excitement surrounding the small run of prototype Esker Hayduke LVS fat bikes the brand has been testing and teasing throughout the past year, they’re offering a limited production run. Interested in an extra-long titanium fat bike? Find details on the new Esker Hayduke LVS FAT here…

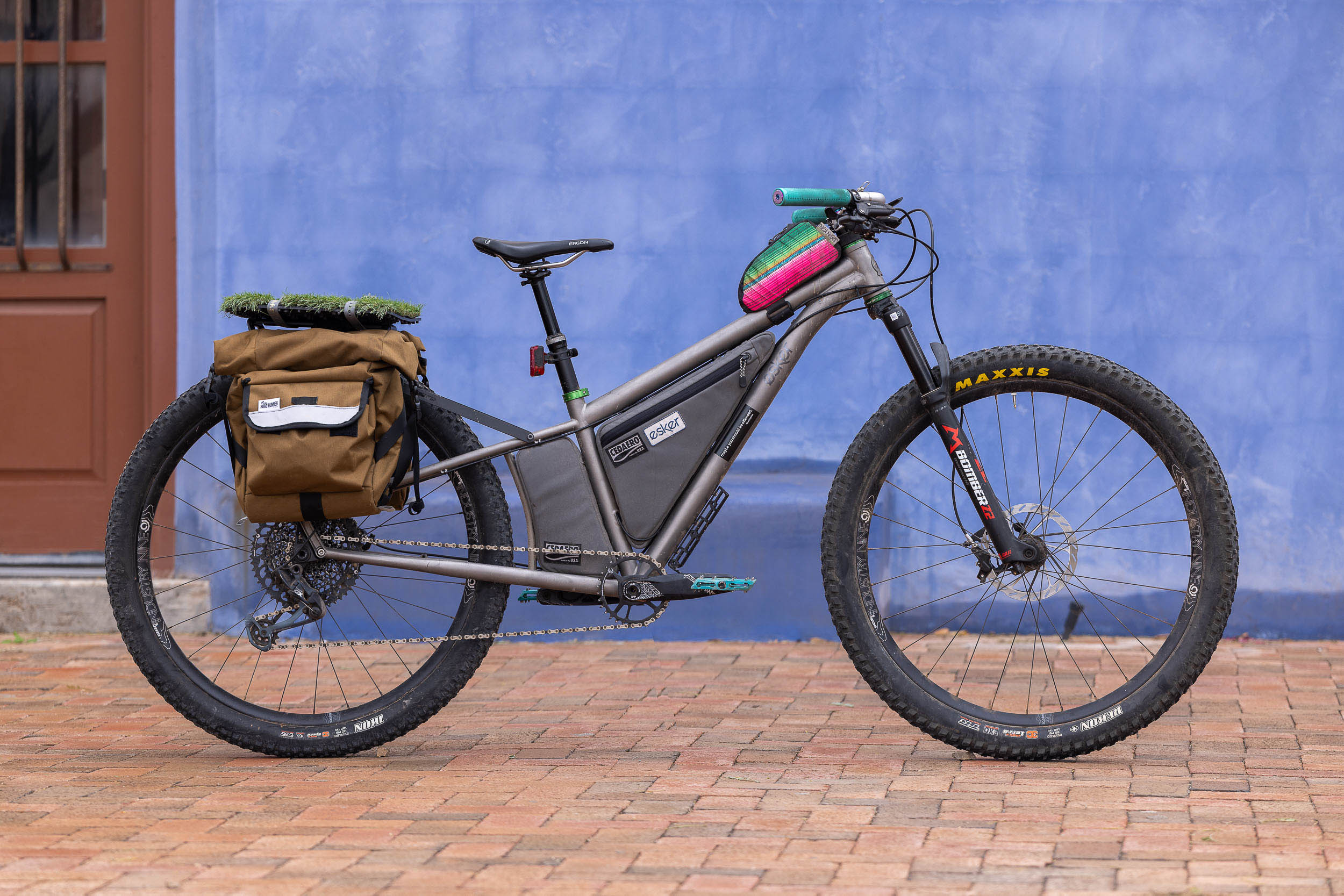

Esker’s stretched-out Hayduke LVS turned heads when it was released a couple of years ago, and I remember nearly everyone on our team pleading their case to be the one to review it. We ultimately published a three-in-one review, with Logan, Neil, and TJ Kearns all spending some time with it. Find that linked in the Further Reading grid at the bottom of this post.

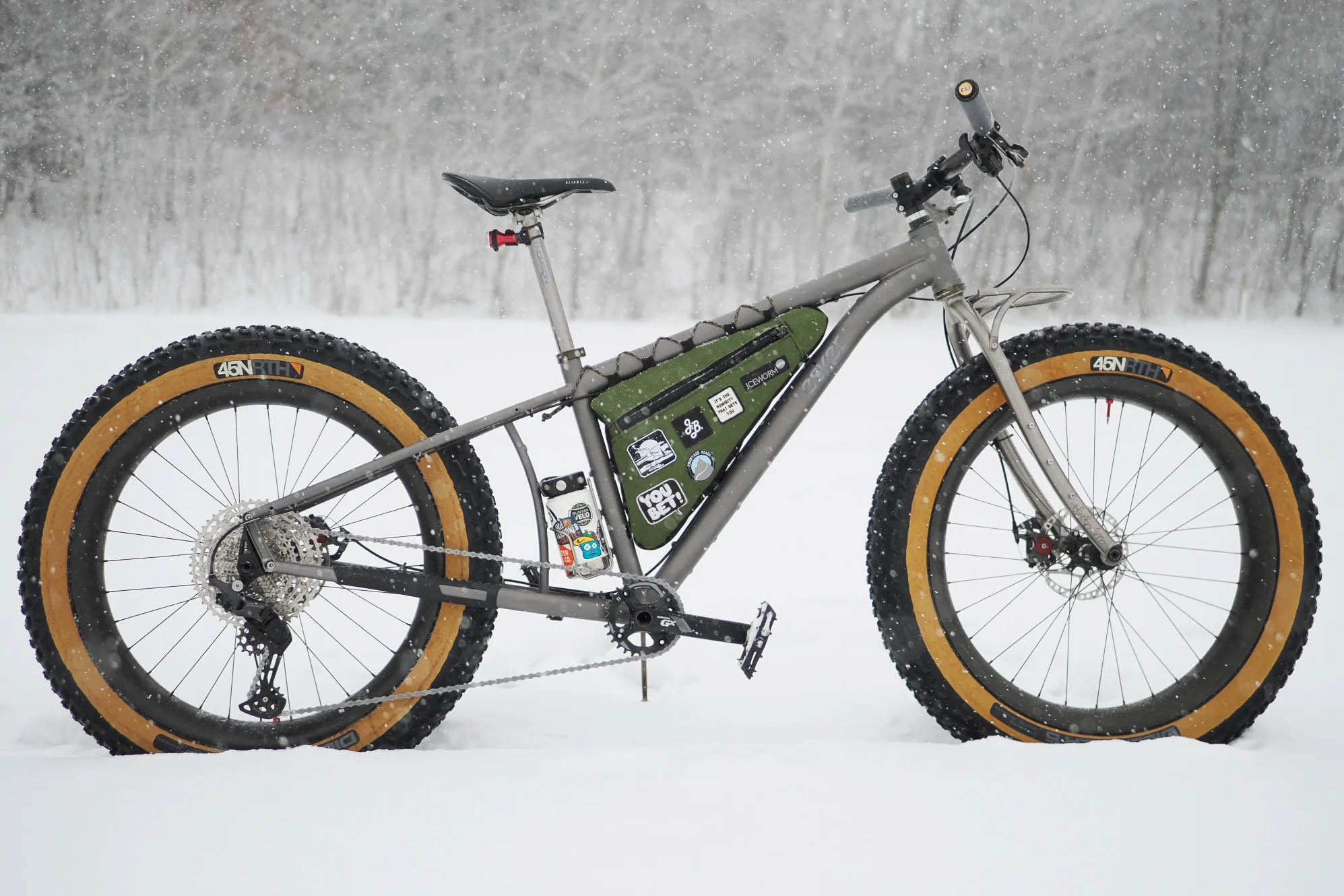

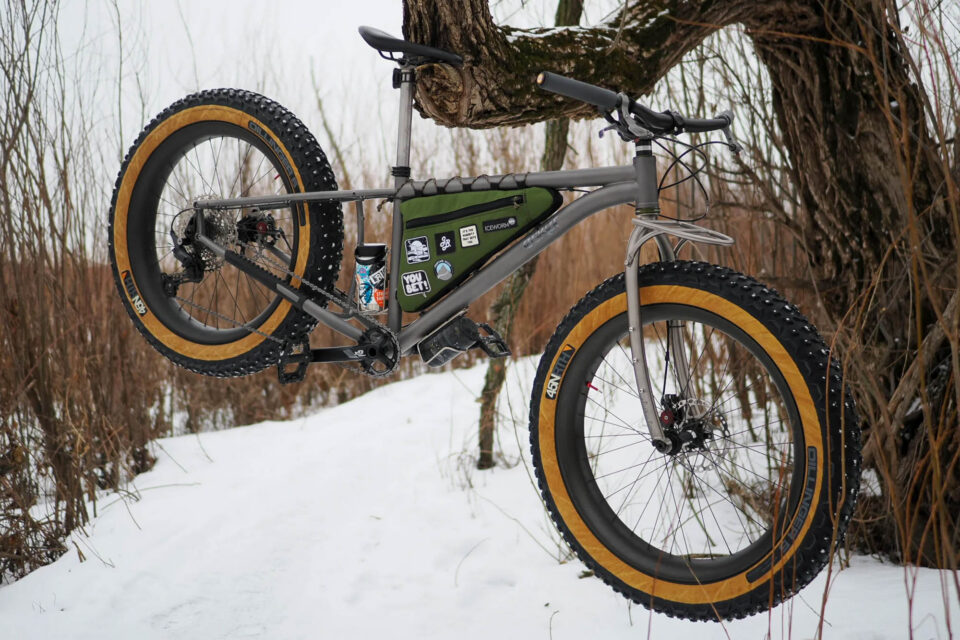

Esker Hayduke LVS Fat

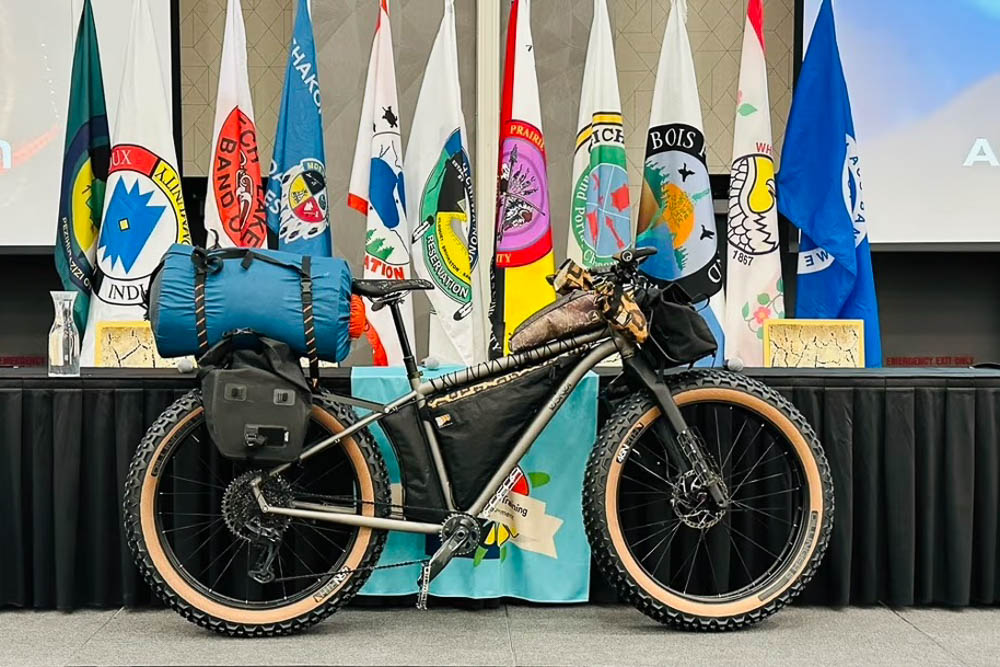

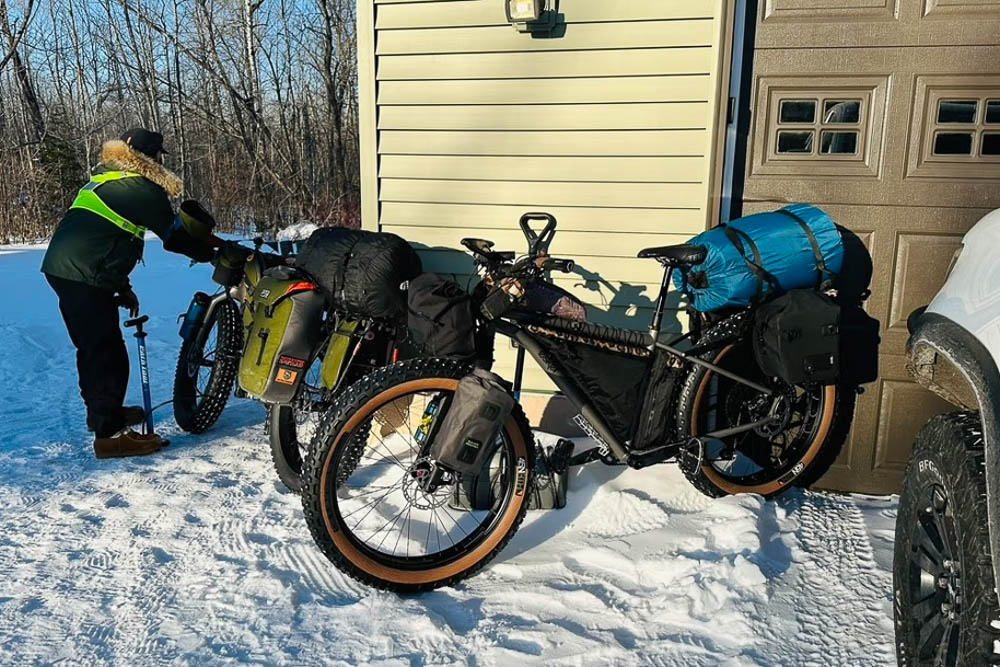

You might have spotted a prototype of the fat-tired Hayduke LVS online during the last year, as the Minnesota brand has been testing a small fleet of them. They garnered enough interested that they’ve now committed to producing a limited production run of the model they’re calling the Esker Hayduke LVS FAT. Given the volatility of the fat bike market, these will only be available during the pre-order window.

  • Esker Hayduke LVS Fat
  • Esker Hayduke LVS Fat

The titanium Hayduke LVS FAT costs $2,950 and features 600mm chainstays with clearance for up to a 26 x 5.0” or 27.5 x 4.5” tire, custom seamless 3/2.5 titanium tubing that’s double-butted and cold-shaped, a whopping 30 mounts for hauling bottles and cages and attaching racks, adjustable Portage Dropouts that pair nicely with a singlespeed drivetrain, UDH compatibility, external cable routing, a threaded bottom bracket, and a 44mm headtube. It will work with a 120mm suspension fork or a 495mm rigid fork. Find the full geometry chart for all four sizes below:

Esker Hayduke LVS FAT Geometry

Size S1/SM S2/MD S3/LG S4/XL
Effective TT Length 597 626 649 683
Reach 420 450 470 500
Stack 615 620 630 645
HT Angle 67.5 67.5 67.5 67.5
HT Length 105 110 120 140
Effective ST Angle 74 74 74 74
ST Length 380 435 485 530
Max Seat Tube Insertion 280 335 385 430
Chainstay Length – Adjustable 600-614 600-614 600-614 600-614
Fork Offset 44 44 44 44
Fork Length 495 495 495 495
BB Drop 65 65 65 65
Wheelbase – Forward 1219 1312 1344 1380
Stem Length 50 50 50 50
Estimated Rider Height 5’3″-5’7″ 5’6″-5’10” 5’9″-6’1″ 6’0″-6’4″

You can find additional details and secure a Hayduke LVS FAT with a $1,000 deposit over at EskerCycles.com.
